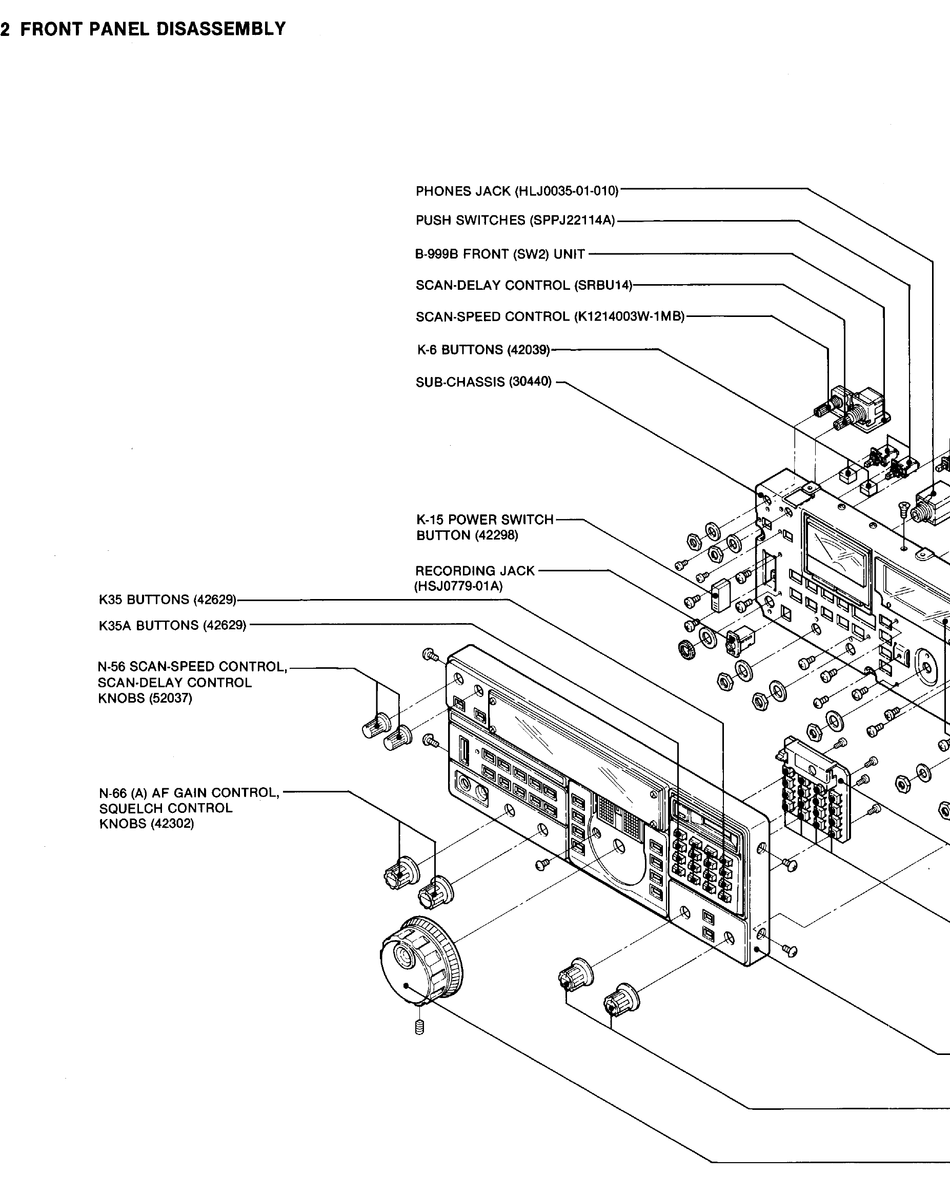

2 FRONT PANEL DISASSEMBLY
PHONES JACK
(HLJ0035-01-010)--------~
PUSH SWITCHES (SPPJ22114A)----------...
B-999B FRONT (SW2) U N I T - - - - - - - - - - - - . . .
SCAN-DELAY CONTROL ( S R B U 1 4 ) - - - - - - - -
SCAN-SPEED CONTROL (K1214003W-1MB)-----
K-6 BUTIONS ( 4 2 0 3 9 ) - - - - -....
SUB-CHASSIS (30440)
K-15 POWER SWITCH
BUTION (42298)
RECORDING J A C K - - - -
(HSJ0779-01 A)
K35 BUTIONS ( 4 2 6 2 9 ) - - - - - - - - - - - - - -
K35A BUTIONS (42629) - - - - - - - - - - - - - . .
N-56 SCAN-SPEED
CONTROL,---~
SCAN-DELAY CONTROL
KNOBS (52037)
N-66 (A) AF GAIN CONTROL,
SQUELCH CONTROL
KNOBS (42302)
