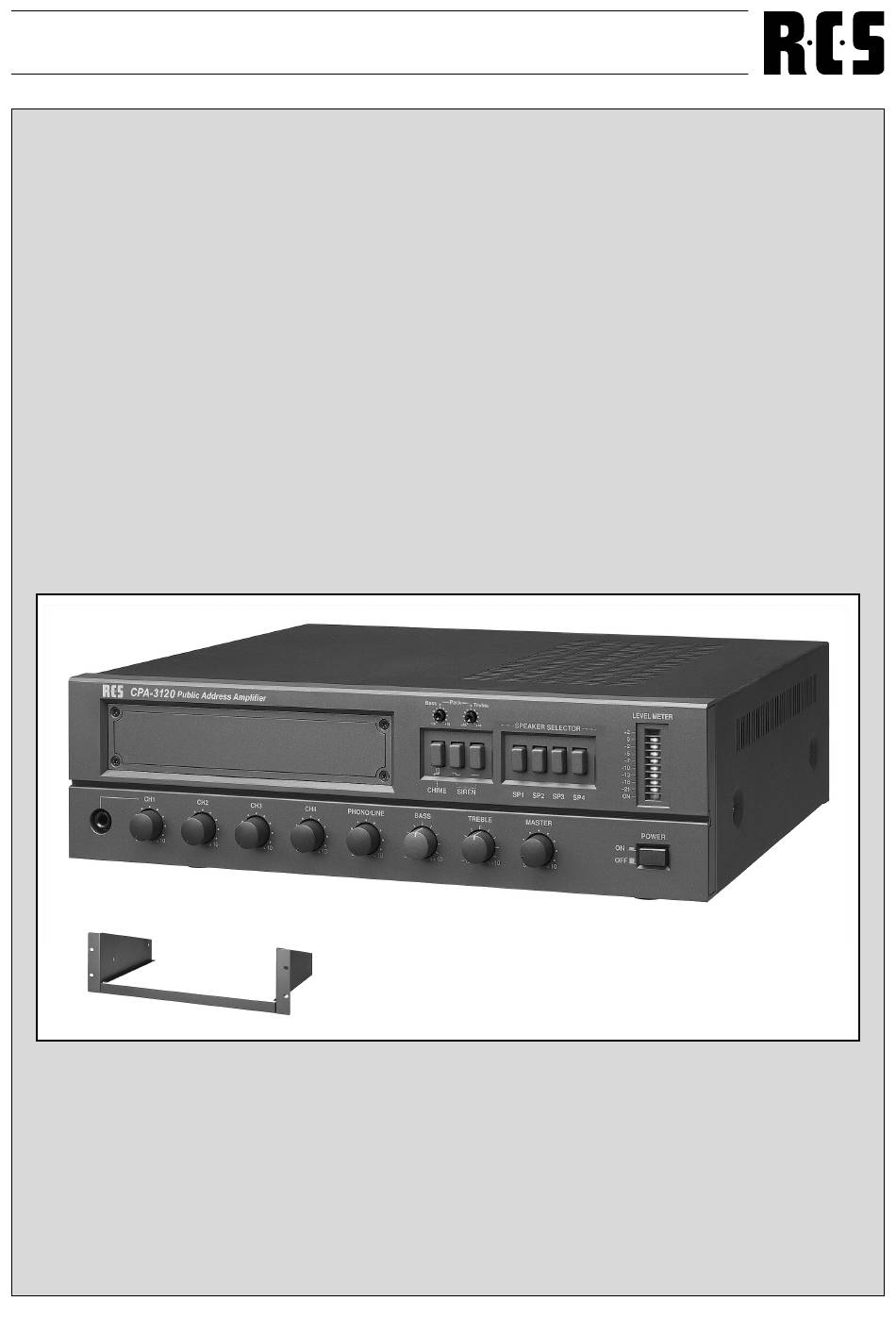

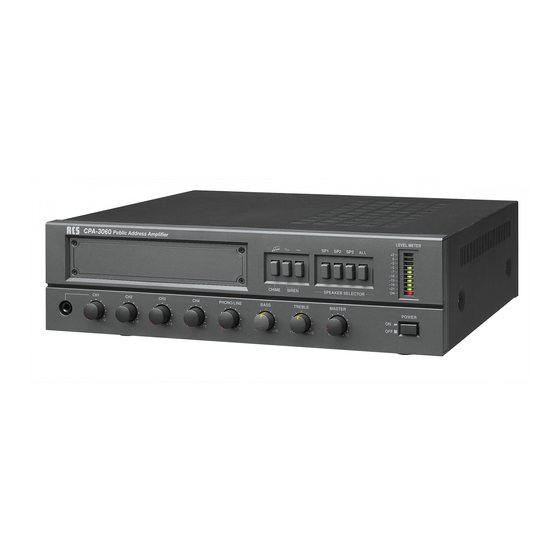

  • Page 1 CPA-3060 C / 3120 C Abbildung zeigt RMK-10...

  • Page 2: Safety Instructions

    CPA-3060 C / 3120 C SAFETY INSTRUCTIONS SICHERHEITSHINWEISE Read all safety instruction before operating. Vor Inbetriebnahme des Verstärkers bitten wir sie die Si- 1. Install equipment as follow condition: cherheitshinweise aufmerksam zu lesen. - Install at flat place, not bending curved. 1.

  • Page 3: Front Panel Controls

    CPA-3060 C / 3120 C FRONT PANEL CONTROLS VORDERSEITE 1. Power Switch 1. Power On / off switch for the mains supply 230 V. Ein- Ausschalter für die Netzstromversorgung 230 V. 2. Master Volume 2. Master Volume Master control for adjusting the volume. ummenregler (Master) zum Einstellen der Lautstärke.

  • Page 4: Rear Panel Controls

    CPA-3060 C / 3120 C REAR PANEL CONTROLS RÜCKSEITE PHANTOM POWER 1. Netzanschlußbuchse 1. AC Inlet Anschlußbuchse This is main jack for AC power cable. 2. Impedanzwahlschalter 2. Impedance Selector Switch Mit diesem Schalter können die Lautsprecherausgänge With this switch the speaker outputs SP1-SP4 can be swit- SP1- SP4 zwischen 70 V und 100 V umgeschaltet werden.
  • Page 5 CPA-3060 C / 3120 C 9. CH2 - 4 Input Jack 9. Eingänge 1 - 4 2, 3 and 4 are balanced XLR connectors for MIC / LINE, 2, 3 und 4 sind symmetr. XLR-Buchsen für MIC/LINE, Input LINE 4 input are RCA jacks. 4 LINE sind Cinch-Buchsen.

  • Page 6: How To Connect

    CPA-3060 C / 3120 C HOW TO CONNECT TP-10/CP-10 EINBAU DER MODULE TP-10/CP-10...
  • Page 7 CPA-3060 C / 3120 C CONNECTION OF THE ANTENNA ANTENNENANSCHLUSS...

  • Page 8: Installation Of The Speaker

    CPA-3060 C / 3120 C INSTALLATION OF THE SPEAKER LAUTSPRECHERANSCHLUSS...
  • Page 9 CPA-3060 C / 3120 C CONNECTIONS ANSCHLUSSBEISPIEL...

  • Page 10: Specifications

    CPA-3060 C / 3120 C SPECIFICATIONS TECHNISCHE DATEN AMPLIFIER SECTION Rated power (at 1% THD) CPA-3060 C- 60 (RMS) CPA-3120 C- 120 (RMS) Frequency response (± 3dB) 80Hz to 15KHz THD at 1KHz (Rated power) Less than 1 % Tone control Bass: ±...
  • Page 11 CPA-3060 C / 3120 C BLOCK DIAGRAM...
  • Page 12 CPA-3060 C / 3120 C Electromagnetic compatibility and low-voltage guidelines: RCS leaves all devices and products, which are subject to the CE guidelines by certified test laboratories test. By the fact it is guaranteed that you may sell our devices in Germany and in the European Union domestic market without additional checks.
