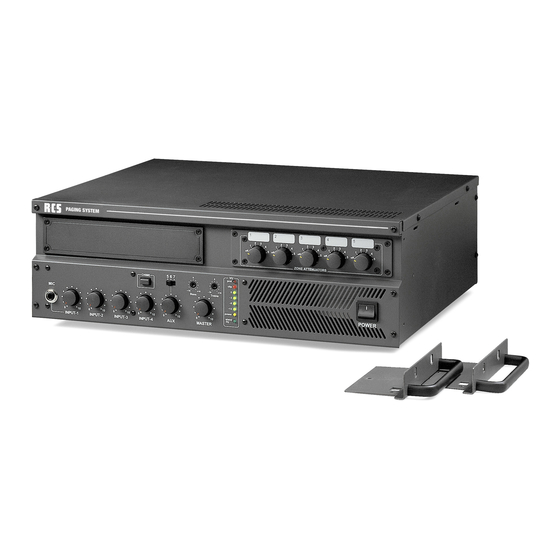

Summary of Contents for RCS CPA-5000 Series

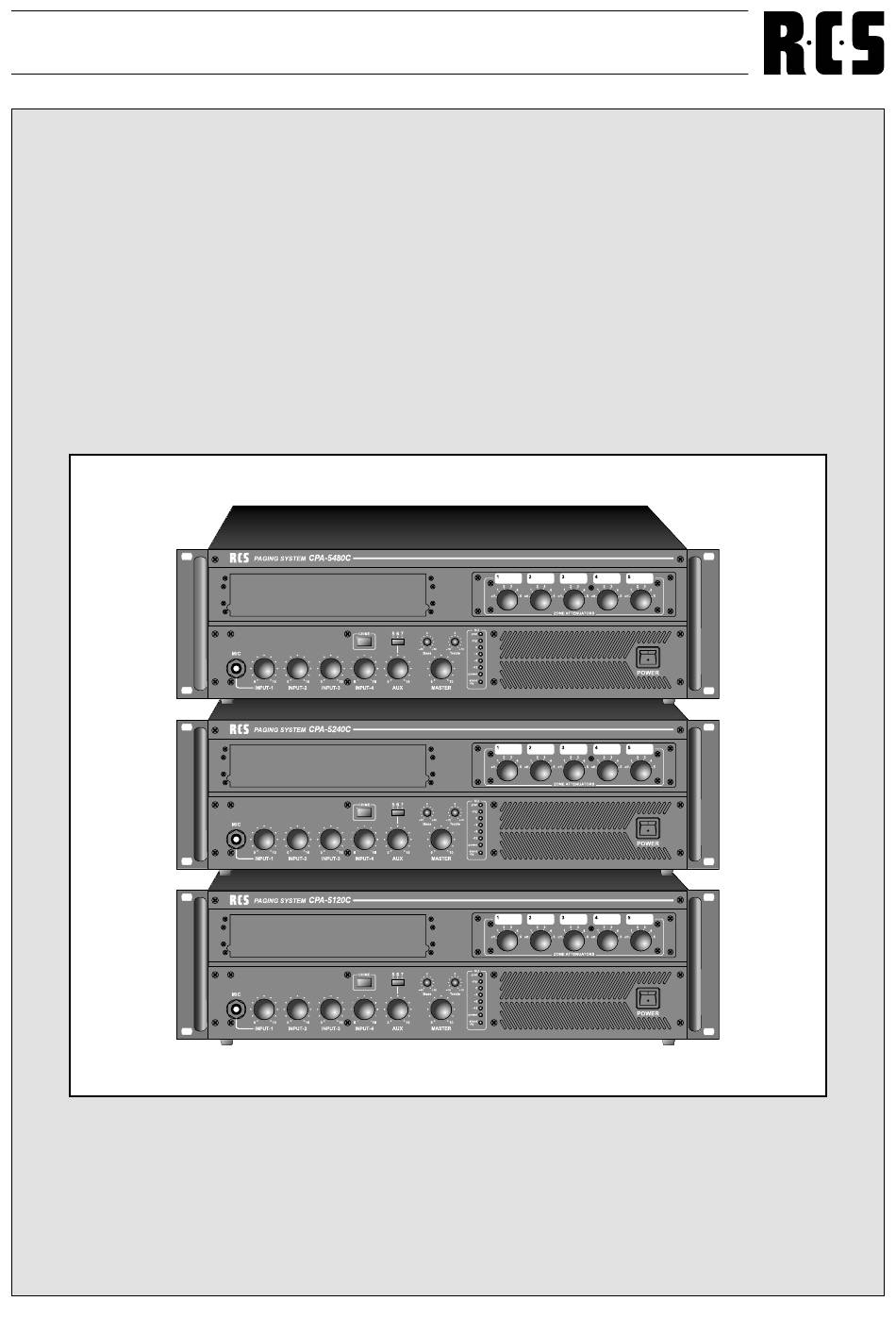

  • Page 1 CPA-5120C/5240C/5480C...

  • Page 2: Safety Instructions

    CPA-5120C/5240C/5480C SAFETY INSTRUCTIONS SICHERHEITSHINWEISE Read all safety instruction before operating. Vor Inbetriebnahme des Geräts bitten wir Sie, die Sicherheits- 1. Install equipment as follow condition: hinweise aufmerksam zu lesen. Install at flat place, not bending curved. 1. Installation nach folgenden Richtlinien: Do not install near the water and moisture.

  • Page 3: Montage

    CPA-5120C/5240C/5480C MOUNTING MONTAGE Amplifier racking size CPA-5000 series are designed for stan- Die Verstärker sind mit seitlichen Befestigungswinkeln für den dard 19" rack mounting. Please pay close attention to the Einbau in 19" Gestelle versehen. Zusätzlich empfiehlt sich die cooling requirements.
  • Page 4 CPA-5120C/5240C/5480C FRONT PANEL CONTROLS VORDERSEITE 1. MIC INPUT JACK OF INPUT 1 1. MIC1 EINGANG This is for only MIC1 input jack which is adjusted by volume Dieser frontseitige Mikrofoneingang auf 6,3 mm Klinke ver- control of input 1 connecting to combo jack in the rear fügt über einen sprachgesteuerten Vorrang gegenüber den panel.
  • Page 5 CPA-5120C/5240C/5480C 6. POWER SWITCH 6. POWER When push the power switch, Power LED will be turn on. Ein- und Ausschalter des Verstärkers. In case of Connection for AC/DC Power sametimes, DC Bei Netzausfall schaltet der Verstärker automatisch auf die power will supply automatically when unexpected AC Po- Notstromversorgung um.
  • Page 6 CPA-5120C/5240C/5480C REAR PANEL CONTROLS RÜCKSEITE 1. PHANTOM POWER SWITCHES 1 - 4 1. PHANTOM POWER Pushing phantom switch when using of balanced condensor Schalter zum Zuschalten der "Phantom Power" bei Verwen- microphone for input 1-4. dung von Kondensatormikrofonen. 2. MIC/LINE SWITCHES 2 - 4 2.

  • Page 7: Ground/Lift Switch

    CPA-5120C/5240C/5480C PRE OUT Jack PRE OUT Output pre out in connection with the input Amp In for In Verbindung mit dem Amp In Ausgang kann hier z.B. inserting e.g. an equalizer the output volume is indepen- ein Equalizer eingeschliffen werden. Die Lautstärke ist dant of master control.

  • Page 8: Standard Application

    CPA-5120C/5240C/5480C STANDARD APPLICATION ANSCHLUSSBEISPIEL...
  • Page 9 CPA-5120C/5240C/5480C BLOCK DIAGRAM...
  • Page 10 CPA-5120C/5240C/5480C TECHNICAL Input Sensitivity/Impedance INPUT 1: Mic : -50dBu(2.45mV) 5KΩ BAL INPUT 2-4: Mic: -50dBu(2.45mV) 2KΩ BAL Line : -10dBu(245mV)200KΩ UNBAL INPUT 5-7: AUX: -10dBu(245mV) 5KΩ UNBAL PACK UNIT: -10dBU(245mV) 10KΩ UNBAL PRE OUT: 0dBu(775mV) 100KΩ UNBAL AMP IN: 0dBu(775mV) 10KΩ UNBAL Rated Output CPA-1200 : 120W(RMS) CPA-2400 : 240W(RMS)
  • Page 11 CPA-5120C/5240C/5480C NOTE:...
  • Page 12 CPA-5120C/5240C/5480C Electromagnetic compatibility and low-voltage guidelines: RCS leaves all devices and products, which are subject to the CE guidelines by certified test laboratories test. By the fact it is guaranteed that you may sell our devices in Germany and in the European Union domestic market without additional checks.

This manual is also suitable for:

Cpa-5120cCpa-5240cCpa-5480c
