- Page 1 DBA-250 D / 500 D DIGITAL 100V-POWER AMPLIFIER COMPLIANT TO: IEC 268-5 VDE 0833-4 / DE 0828 / EN 60849 IEC 60849 fanless-cooling - ENGLISH OPERATING INSTRUCTIONS / BEDIENUNGSANLEITUNG - DEUTSCH...
- Page 2 • Connect only to 230 V and 24 V Emergency power (DC). Electromagnetic compatibility and low-voltage guidelines: RCS leaves all devices and products, which are subject to the CE guidelines by certified test laboratories test. By the fact it is guaranteed that you may sell our devices in Germany and in the European Union domestic market without additional checks.
- Page 3 CONTENTS CONTENTS / INHALT DBA-250D / 500D gENERAL REFERENCES / Allgemeine HinWeiSe ......... .
- Page 4 FEATURES DBA-SERIES MAIN FEATURES HAUPTMERKMALE + Degree of efficiency of over 90% + Wirkungsgrad von über 90% + Energy saving + Energiesparend + Automatic standby mode + Automatischer Standby-Betrieb + Low heat waste + Geringe Abwärme + Low battery capacity necessary + Geringe Akkukapazität notwendig FURTHER FEATURES WEITERE MERKMALE...

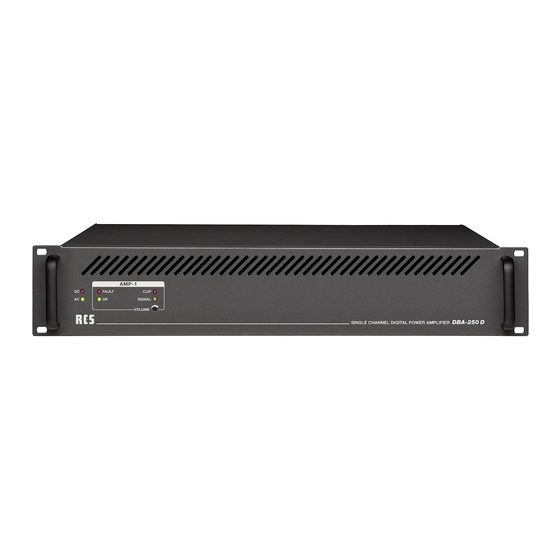

- Page 5 DBA-SERIES FRONT PANEL AMP-1 AMP-2 FAULT CLIP FAULT CLIP SIGNAL SIGNAL VOLUME VOLUME DBA-500 D 2 CHANNEL DIGITAL POWER AMPLIFIER MODEL: DBA-500D 2 CHANNEL DIGITAL POWER AMPLIFIER CH 1 AC 230V 6A FRONT PANEL FRONTANSICHT OUT 2 OUT 1 CH 2 DC IN –...
- Page 6 REAR PANEL DBA-SERIES AMP-1 AMP-2 FAULT CLIP FAULT CLIP SIGNAL SIGNAL VOLUME VOLUME DBA-500 D 2 CHANNEL DIGITAL POWER AMPLIFIER MODEL: DBA-500D 2 CHANNEL DIGITAL POWER AMPLIFIER CH 1 AC 230V 6A OUT 2 OUT 1 CH 2 DC IN – + 48V 0 / 50 / 100 0 / 50 / 100 500W...
- Page 7 DBA-SERIES SAMPLE APPLICATIONS SYSTEM CONNECTIONS / VERDRAHTUNgSBEISPIEL R6CD-10 6Cd-Changer MODEL NO.: R6CD-10 6CD-CHANGER ESM-100D line 1 speakers vares fire Brigade Call station ESC-006A vares Control-Center DC POWER CAUTION 24V 40A RISK OF ELECTRIC SHOCK DO NOT OPEN WARNING: TO REDUCE THE RISK OF FIRE OR ELECTRIC SHOCK DON'T EXPOSE THIS PROGRAM PRIORITY...
- Page 8 BLOCK DIAgRAM DBA-SERIES DBA-SERIES BLOCK DIAgRAM / BLOCKSCHALTBILD DER DBA-SERIE...
- Page 9 Output voltage / Ausgangsspannung 50 V or 100 V Frequency response / Frequenzbereich 70 ~ 20.000 Hz (better than -3 dB) Signal-to-noise ratio / Signal-Rauschabstand better than 91 dB THD at 1 kHz / Klirrfaktor (THD) bei 1 kHz DBA-250D: better than 0,29% DBA-500D: better than 0,2% External voltage distance / Fremdspannungsabstand 85 dB 1kHz Power consumption / Leistungsaufnahme DBA-250D: Sine signal: 380 W; no-load: 16 W; standby: 7 W DBA-500D: Sine signal: 770 W; no-load: 21 W; standby: 9 W Current consumption (230 V AC) / DBA-250D: Sine signal: 1,7 A; active 0 W Out-0,09 A...
- Page 10 NOTES DBA-SERIES...
- Page 11 DBA-SERIES NOTES...
- Page 12 Technische Änderungen in Hardware und Software vorbehalten. Delivered by / Lieferung durch: © Copyright by RCS AUDIO-SYSTEMS GmbH. RCS05.08.2008 Publication and duplication of the contained data only allowed with our strict permission. Veröffentlichung und Vervielfältigung der enthaltenen Daten, auch auszugsweise, nur mit unserer ausdrücklichen Genehmigung.
