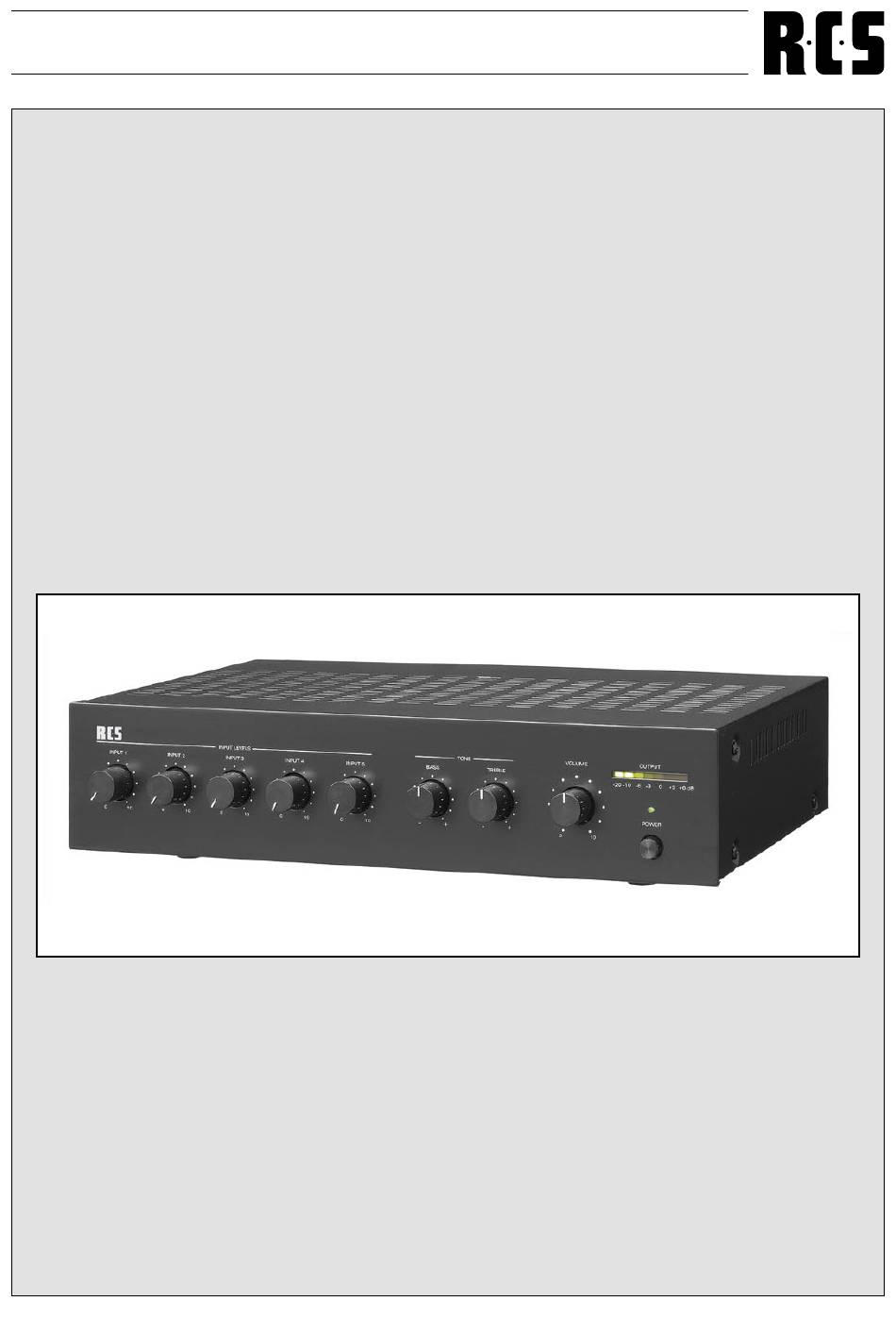

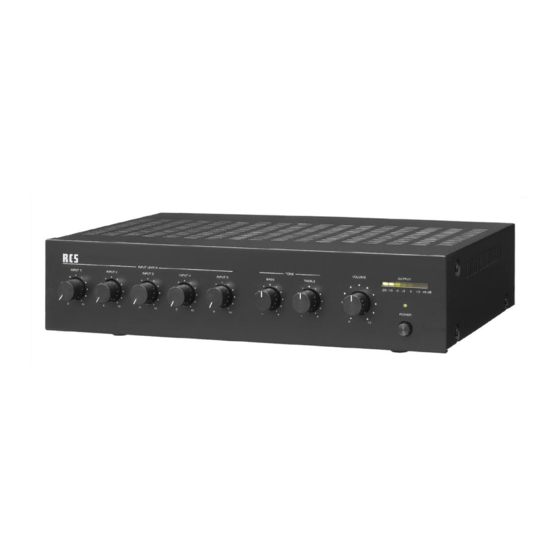

  • Page 1 TA-4030/4060/4120 KX...
  • Page 2 TA-4030/4060/4120 KX SAFETY INSTRUCTIONS SICHERHEITSHINWEISE Read all safety instruction before operating the amplifiers. Vor Inbetriebnahme des Verstärkers bitten wir Sie, die Sicher- 1. Install equipment as follow condition: heitshinweise aufmerksam zu lesen. Install at flat place, not bending curved. 1. Installation nach folgenden Richtlinien: Do not install near the water and moisture.

  • Page 3: Front Panel Controls

    TA-4030/4060/4120 KX FRONT PANEL CONTROLS VORDERSEITE 1. LAUTSTÄRKEREGLER MIC2 1. INPUT LEVEL CONTROL MIC2 Dieser Regler bestimmt die Lautstärke des an den Eingang This control let you individually set the sound source con- 2 angeschlossenen Mikrofon`s. nected to the input "IN2". 2.

  • Page 4: Rear Panel Controls

    1. AC FUSE Diese Sicherung darf bei Defekt nur mit einer Sicherung This fuse holder contain AC fuse. Replaces it with same gleichen Typs (siehe Tabelle) ersetzt werden. type fuse. TA-4030 KX 1,0 A TA-4060 KX 1,6 A TA-4120 KX 2,5 A 2.
  • Page 5 TA-4030/4060/4120 KX 9. LINE/MIC SWITCH 9. MIC/LINE UMSCHALTER When using the MIC or LINE, please locate the input Schalter zum Auswählen der Eingangsempfindlichkeit für select switch to desirable direction. MIC oder LINE bezogen auf Eingang "IN1". 10. INPUT "IN1" 10. EINGANG "IN1" Balanced input that can be used to connect an dynamic Symmetrischer 6,3 mm Stereo-Klinke Eingang für dyna- microphone (30-600 ohm), or an audio source with high level...
  • Page 6 TA-4030/4060/4120 KX 14. "COM" TERMINAL 14. "COM" ANSCHLUSS Common terminal for the outputs 15 and 16. Gemeinsame Klemme für die Ausgänge 15 und 16. 15. OUTPUT TERMINAL FOR AUXILIARY LOUDSPEAKER 15. ANSCHLUSS MONITORLAUTSPRECHER This allows connecting a small auxiliary louspeaker, which be An dieser Klemme kann ein zusätzlicher Lautsprecher ange- controlled with the mixed signal of the "IN4"...

  • Page 7: System Connections

    TA-4030/4060/4120 KX SYSTEM CONNECTIONS ANWENDUNGSBEISPIEL Microphone (e.g. DM-091 K) Microphone (e.g. DM-091 X) Microphone stand (e.g. MS-201 K) Microphone stand (e.g. MS-201 X) CD-player (e.g. J6CD-10) Tuner (e.g. JTU-110 B) CD/MP3/Tuner (e.g. TU-100 D3) Equalizer (e.g. JEQ231 A) Power amplifier (e.g. JPA-120 CP) Battery (e.g.

  • Page 8: Technical Data

    6,9 kg • 7,8 kg • 10 kg Electromagnetic compatibility and low-voltage guidelines: RCS leaves all devices and products, which are subject to the CE guidelines by certified test laboratories test. By the fact it is guaranteed that you may sell our devices in Germany and in the European Union domestic market without additional checks.
