- Page 1 LINO4/10 User & Installation Manual www.audac.eu...

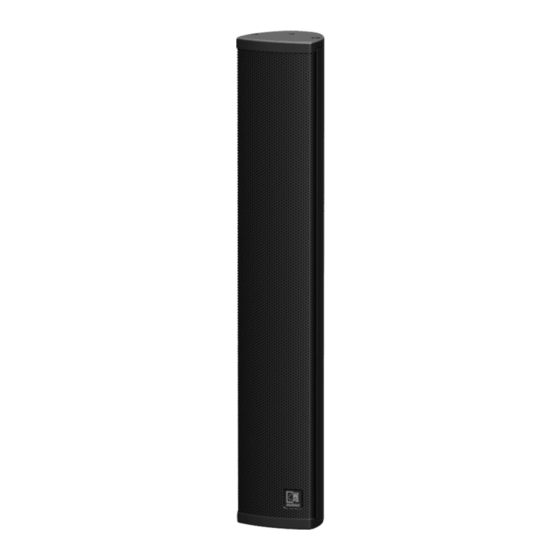

- Page 3 They are solid constructed using solid aluminum materials and finished through a rigid finely perforated front grill. They come in two different models (LINO4 and LINO10) in terms of length and driver count, consisting of 2” low/mid-frequency drivers with a 1” central positioned tweeter for the high frequencies.
- Page 4 Precautions READ FOLLOWING INSTRUCTIONS FOR YOUR OWN SAFETY • ALWAYS KEEP THESE INSTRUCTIONS FOR FUTURE REFERENCE. NEVER THROW THEM AWAY • ALWAYS HANDLE THIS UNIT WITH CARE • CLEAN ONLY WITH DRY CLOTH • HEED ALL WARNINGS AND FOLLOW ALL INSTRUCTIONS •...
- Page 5 CAUTION • USE CABLES OF THE RIGHT GAUGE TO CONNECT THE LOUDSPEAKER • USE CABLES WITH CLEAR COLOR CODING INDICATING THE POLARITY AND MAINTAIN THE SAME POLARITY THROUGHOUT THE WHOLE SYSTEM. • ONLY USE THE CORRECT AMPLIFIER OUTPUT VOLTAGE AND IMPEDANCE. EXCEEDING THESE LIMITS COULD CAUSE FIRE OR OTHER FAILURES.
-
Page 6: Mounting Bracket
Installing the LINO Mounting bracket Every LINO speaker comes delivered with two L-shaped brackets making it possible to install the speaker at each location and focussing it into the desired direction. The metal constructed L-brackets ensures a solid and secure mounting of the loudspeaker to any possible surface or location. -
Page 7: Connecting The Speaker
6-pin terminal block connector. Each position corresponds with a specific impedance / power setting indicated on a label attached to the speaker, and in the table below. LINO4 LINO10 Tapping 100V Imp. -
Page 8: Additional Information
Ingress protection IP3x IP3x Operation temperature range -20°C to +50°C -20°C to +50°C Colour White LINO4/W (RAL9003) LINO10/W (RAL9003) Black LINO4/B (RAL9005) LINO10/B (RAL9005) Dimensions (W x H x D) 72 x 414 x 68.3 mm 72 x 796 x 68.3 mm...
