Winmate M101RK Series Quick Start Manual

10.1” rugged android tablet computer
Hide thumbs Also See for M101RK Series:

Advertisement

Quick Links

Download this manual

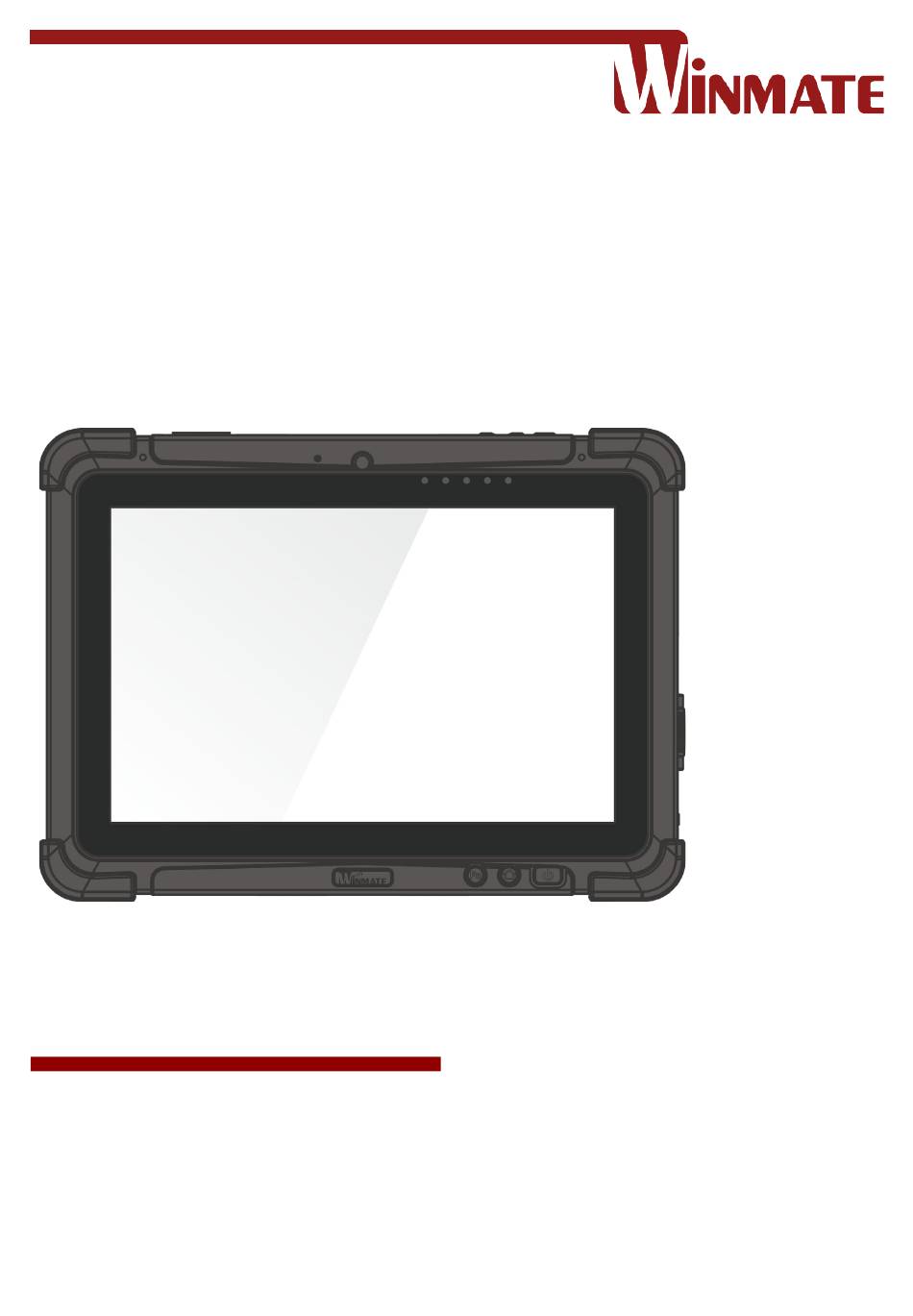

M101RK Series
10.1" Rugged Android Tablet
Dual-core ARM A72 up to 2.0 GHz + Quad-core ARM A53 up to 1.5 GHz
Android 7.1.2
Quick Start Guide
Version 1.3
Document Part Number: 9152111K1057
Please read these instructions carefully before using this product, and save this manual for future use.

Advertisement

loading
Need help?

Need help?

Do you have a question about the M101RK Series and is the answer not in the manual?

Questions and answers

Related Manuals for Winmate M101RK Series

Summary of Contents for Winmate M101RK Series

  • Page 1 M101RK Series 10.1” Rugged Android Tablet Dual-core ARM A72 up to 2.0 GHz + Quad-core ARM A53 up to 1.5 GHz Android 7.1.2 Quick Start Guide Version 1.3 Document Part Number: 9152111K1057 Please read these instructions carefully before using this product, and save this manual for future use.
  • Page 2 10.1" Rugged Android Tablet M101RK Series ❶ Getting Started Congratulations on purchasing Winmate® M101RK Rugged Android Tablet Computer. The rugged design allows you to use it in harsh outdoor environments. M101RK is a rugged tablet PC with a robust set of features designed to withstand industrial use while providing high tech solutions that increase productivity, improve safety, and reduce operational costs.
  • Page 3 Quick Start Guide ❸ Description of Parts Front: Right: Item Description Item Description Micro HDMI Output Front 2 Megapixel Webcam Camera HDMI Show the current status of Micro Memory card reader the Tablet Computer Red: SD Card port for Micro SD Charging / Hot-swap battery Reader Card...
  • Page 4 10.1" Rugged Android Tablet M101RK Series Rear: Bottom: No Item Description Item Description Latch to lock the battery Optional NFC reader for Battery Lock in place once battery is reading of NFC tags. Latch inserted. No spring Kensington Provide lock access for loaded.
  • Page 5 Quick Start Guide Installing SIM Card (For WWAN Equipped Devices) The Tablet Computer supports WWAN data connection and fits a Micro-SIM card. To install the SIM card: Service Windows 3G/ LTE Module Tools Needed: Screw: M2x5, 4 pc Screw: M2x3.5, 1 pc Screwdriver: Philips Type , Size #0 , Screwdriver: Philips Type , Size #0 , for M2 screws, torque: 2.0 ±...

  • Page 6: Inserting Microsd Card

    10.1" Rugged Android Tablet M101RK Series Caution When re-inserting WWAN module, please pay attention to cable routing. Make sure the cable module does not get squeezed. Attention Lors de la réinsertion du module WWAN, veuillez faire attention à l'acheminement des câbles. Assurez-vous que le module de câble n'est pas écrasé.

  • Page 7: Connecting To Power Supply

    Quick Start Guide To remove the standard battery pack into the Tablet Computer: 1. Power off the tablet computer (or set to a sleep mode). Disconnect any cords. 2. Turn the tablet computer over, back facing up. 3. Locate the Battery Lock Latch and push it to the “Unlocked” position. 4.
  • Page 8 10.1" Rugged Android Tablet M101RK Series ❺ Turning On and Off the Device To turn on the device: 1. Press and hold the power button for 3 seconds, located on the top side of the unit. 2. When the device vibrates, release the power button.
  • Page 9 Bare fingertips ❽ Winmate Home Manager The M101RK series tablet comes with a pre-installed APP named Winmate® Home Manager (WHM). This application lets the device manager lock the launcher. When the launcher is locked, the user can only use one application assigned by the device manager.
  • Page 10 ❾ Winmate Data Capture The M101RK with Barcode Reader comes with pre-installed software made by Winmate® - Winmate Data Collection (WDC) that allows users to turn on the readers and set up the button to trigger the scan function. ❿ Basic Troubleshooting...
  • Page 11 Quick Start Guide Problem Solution cannot connect another • Make sure that the wireless LAN feature is powered on. wireless LAN device. Make sure that the SSID setting is the same for every • wireless LAN device in the network. •...
  • Page 12 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
