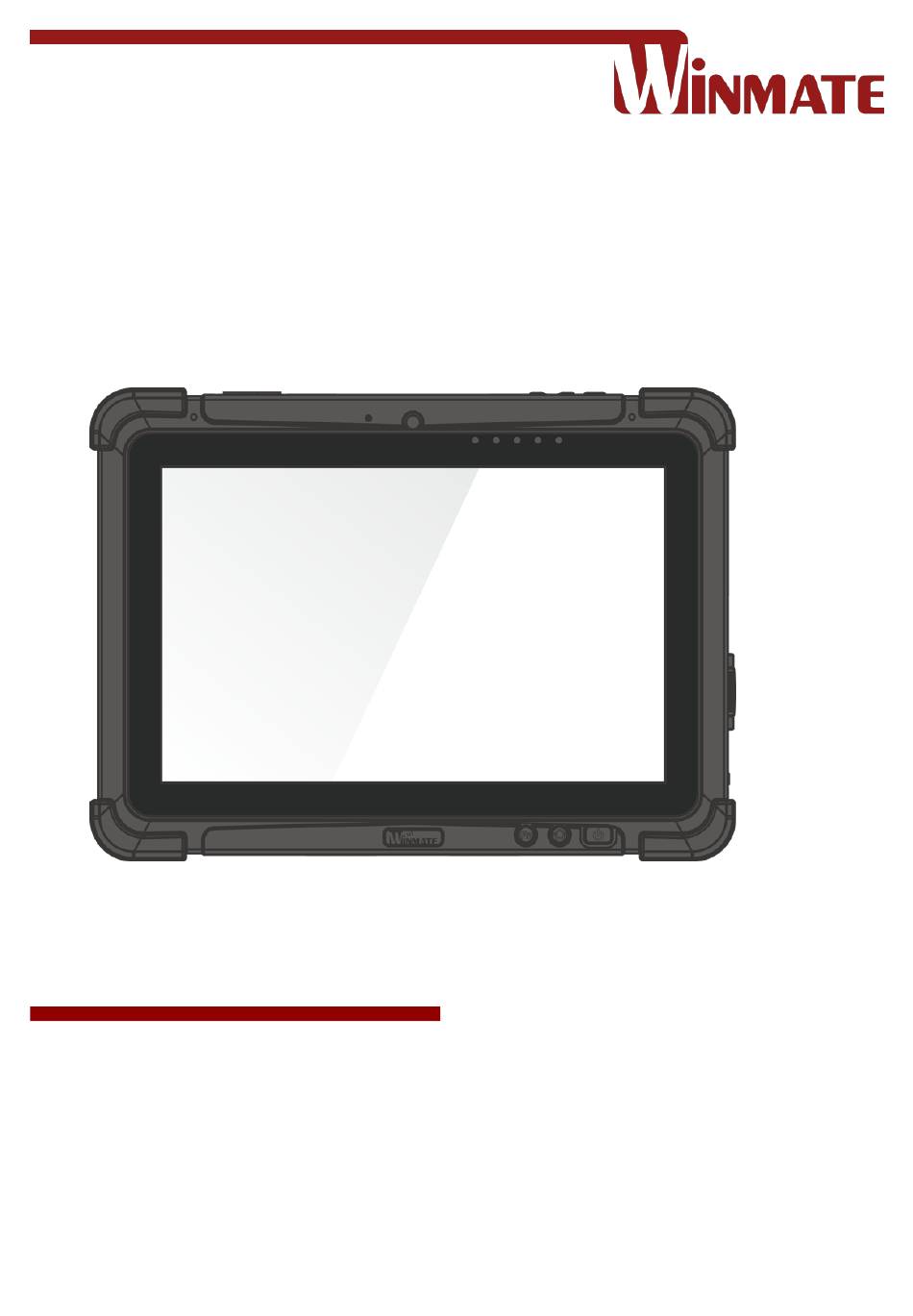

- Page 1 M101M8 Rugged Android Tablet ARM® Cortex™-A53 Octa-Core, 1.3 GHz Android 7.0 Nougat Quick Start Guide Document Part No. 9152111K1054 Version 1.5 Please read these instructions carefully before using this product, and save this manual for future use.
- Page 2 M101M8 Rugged Android Tablet Quick Start Guide ❶ Getting Started Congratulations on purchasing Winmate® M101M8 Rugged Android Tablet Computer. The rugged design allows you to use it in harsh outdoor environments. This quick start guide tells you step by step how to get the Tablet Computer up and running. You will find instructions for the following procedures: •...
- Page 3 Quick Start Guide ❸ Description of Parts Front: Right: Item Description Item Description Micro Memory card reader port for Front 2 Megapixel Webcam SD Card Micro SD Card Camera Reader Show the current status of the Tablet Computer Red: Micro High speed USB port connects to PC or USB Charging / Hot-swap battery...
- Page 4 M101M8 Rugged Android Tablet Quick Start Guide Rear: Bottom: No Item Description Item Description Kensington Provide lock access for Battery Spring-loaded slider Lock Port Kensington Lock. Release that latches the battery Slider Optional Barcode Scanner for reading Touch Pen Pen holder slot to Barcode of 2D barcode.
-
Page 5: Installing Sim Card (For 3G/Lte Equipped Devices)
Quick Start Guide Installing SIM Card (For 3G/LTE Equipped Devices) The Tablet Computer supports 3G/LTE data connection and fits a Micro-SIM card. To install the SIM card: Tools Needed: Service Windows 3G/ LTE Module Screw: M2x5, 4 pc Screw: M2x3.5, 1 pc Screwdriver: Philips Type , Size #0 , for Screwdriver: Philips Type , Size #0 , for M2 screws, torque: 2.0 ±... -
Page 6: Inserting Microsd Card
M101M8 Rugged Android Tablet Quick Start Guide Inserting MicroSD Card Your tablet supports Micro SDXS card. To install Micro SDXS card: 1. Open I/O protective cover by pulling out the latch. 2. Insert microSD card into slot with contacts facing down. -
Page 7: Connecting To Power Supply
Quick Start Guide Connecting to Power Supply The Tablet Computer operates either on external AC power or internal battery power. It is recommended to use AC power when you start up the Tablet Computer for the first time. Caution Use only the AC adapter included with your Tablet Computer. Using other AC adapters may damage the Tablet Computer and the Battery. - Page 8 Winmate Inc. 9F, No.111-6, Shing-De Rd., San-Chung District, New Taipei City 24158, Taiwan, R.O.C www.winmate.com Copyright © Winmate Inc. All rights reserved.
