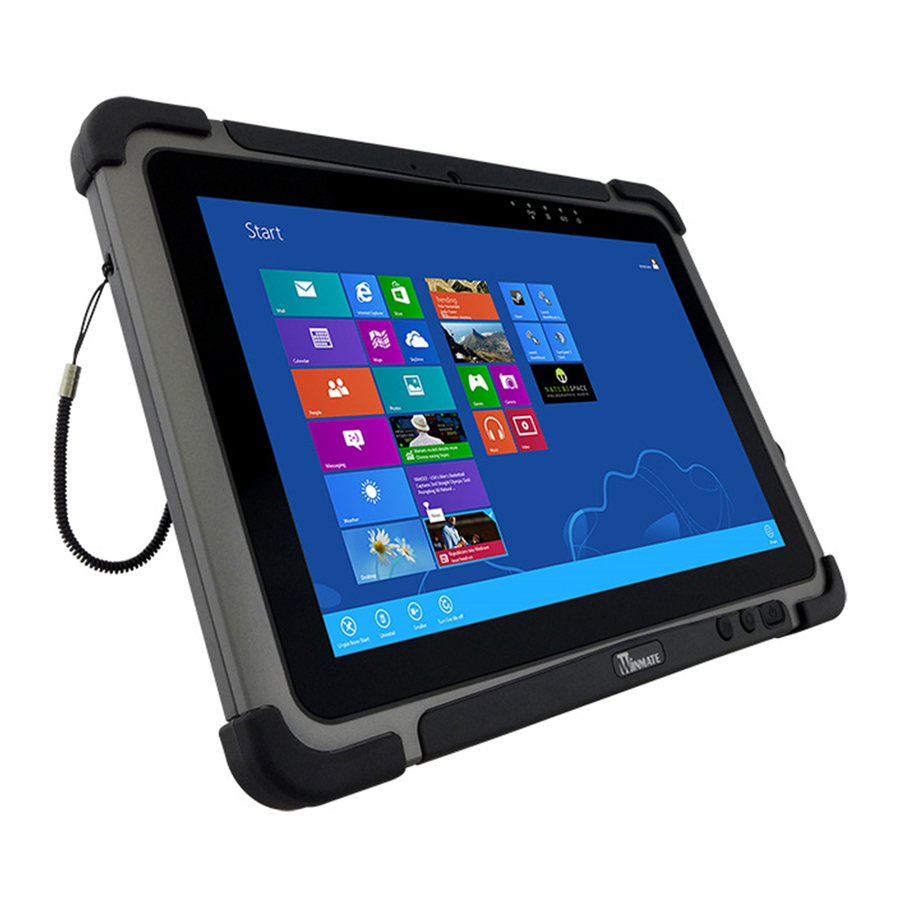

M101B Tablet PC

Quick Start Guide

Please read these instructions carefully before using this product, and save this manual for future use.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the M101B and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Winmate M101B

Summary of Contents for Winmate M101B

  • Page 1: Quick Start Guide

    M101B Tablet PC Quick Start Guide Please read these instructions carefully before using this product, and save this manual for future use.

  • Page 2: Getting Started

     Turning On/Off  Vehicle Docking (Optional)  Desk Docking (Optional) Unpacking Check and identify the supplied accessories:  Tablet Computer  Standard Battery  Power Adapter  Power Cord and Plugs  Capacitive Touch Stylus M101B Quick Start Guide...

  • Page 3: Description Of Parts

    Displays and act as one of the inputs for the Tablet Computer Fn1 Button Programmable function key configured by HotTab Utility. Default: Web Browser Menu Button HotTab Quick Access Front Buttons Details: Power Button Turns on/off tablet Front LED Indicators Detail: M101B Quick Start Guide...
  • Page 4 Spring-loaded slider that Slider latches the battery in. Touch Pen Slot Pen holder slot to store touch pen 3G Module/SIM Service window to insert card slot Micro SIM card. Also provide access to 3G Module. Speakers Emits sounds. M101B Quick Start Guide...

  • Page 5: Combination Keys (Keyboard Key Emulation)

    Combination Keys (Keyboard Key Emulation) For the physical buttons on the M101B tablet computer, in addition to their dedicated functions detailed in the previous section, they can also be used to emulate commonly used keyboard key strokes. Under different scenario, a single physical button or a combination of physical buttons...

  • Page 6: First-Time Operation

    4. Locate the Battery Release Slider that is spring-loaded. Pull back and hold. 5. Insert the battery with the connector-pins side first, and then lower the battery into the battery compartment. Continue to hold the Battery Release Slider until the battery is fully inserted. M101B Quick Start Guide...

  • Page 7: Connecting To Power Supply

    2. Plug the DC cord of the AC adapter into the Power Jack of the tablet computer. 3. Plug the AC power cord into the AC adapter. 4. Finally, Plug the AC power cord into the electrical outlet. M101B Quick Start Guide...

  • Page 8: Turning On/Off

    5. Tap on Shut Down. 6. Wait for the Tablet Computer to power off. Note:  The computer will forcefully be turned off if the power switch is pressed and held for six seconds or longer. M101B Quick Start Guide...

  • Page 9: Setting Up Windows On Your Computer For The First Time

    For more detailed step by step first time setup instructions, please download the latest user manual by going to http://www.winmate.com.tw OR refer to the digital copy of user manual included in the disk that comes with the tablet. M101B Quick Start Guide...
  • Page 10  Easy to remove / insert with one hand  VESA mount for various standard fixtures  USB (x2) on docking for quick access  Anti-theft design with security lock  Lockable terminal block connector for 9-36V DC input Dimensions M101B Quick Start Guide...
  • Page 11 *All dimensions in millimeters Description of Parts M101B Quick Start Guide...

  • Page 12: Driver Installation

    The vehicle docking driver is not pre-installed on the tablet. For a detailed installation guide, please refer to the CD that is included with the package. OR visit winmate official site’s download center to download the latest driver: http://www.winmate.com.tw/...

  • Page 13: Specification

    RS232 x 1, USB 2.0 x 2, 10/100 LAN x1, VGA x 1 (optional), SMA x 1 (for external GPS antenna), Terminal Block Input Side USB 2.0 x 2 Mounting 75 x 75mm VESA Mount Vibration MIL-STD 810G, 5 ~ 500Hz, 2.24G M101B Quick Start Guide...
  • Page 14 Desk Docking (Optional) Features  Designed to fit M101B  19V DC IN  LAN, RS232, USB x 4, VGA expansion  Optional WPR support (9-36V) Dimensions *All dimensions in millimeters M101B Quick Start Guide...
  • Page 15 For the tablet to work with the desk docking, the driver for the desk docking has to be installed first. The desk docking driver is not pre-installed on the tablet. For a detail installation guide, please refer to the CD that is included with the package OR visit winmate official site’s download center to download the latest driver: http://www.winmate.com.tw/...
  • Page 16 19V DC In (Default) 9~36 DC Terminal block (Optional) I/O Support Rear RS232 x 1, USB 2.0 x 2, 10/100 LAN x1, VGA x 1, DC 2.5 Ø Input, Terminal Block Input Side USB 2.0 x 2 M101B Quick Start Guide...
