FTE Maximal Nebula 8S User Manual page 27

Nebula 8S
5

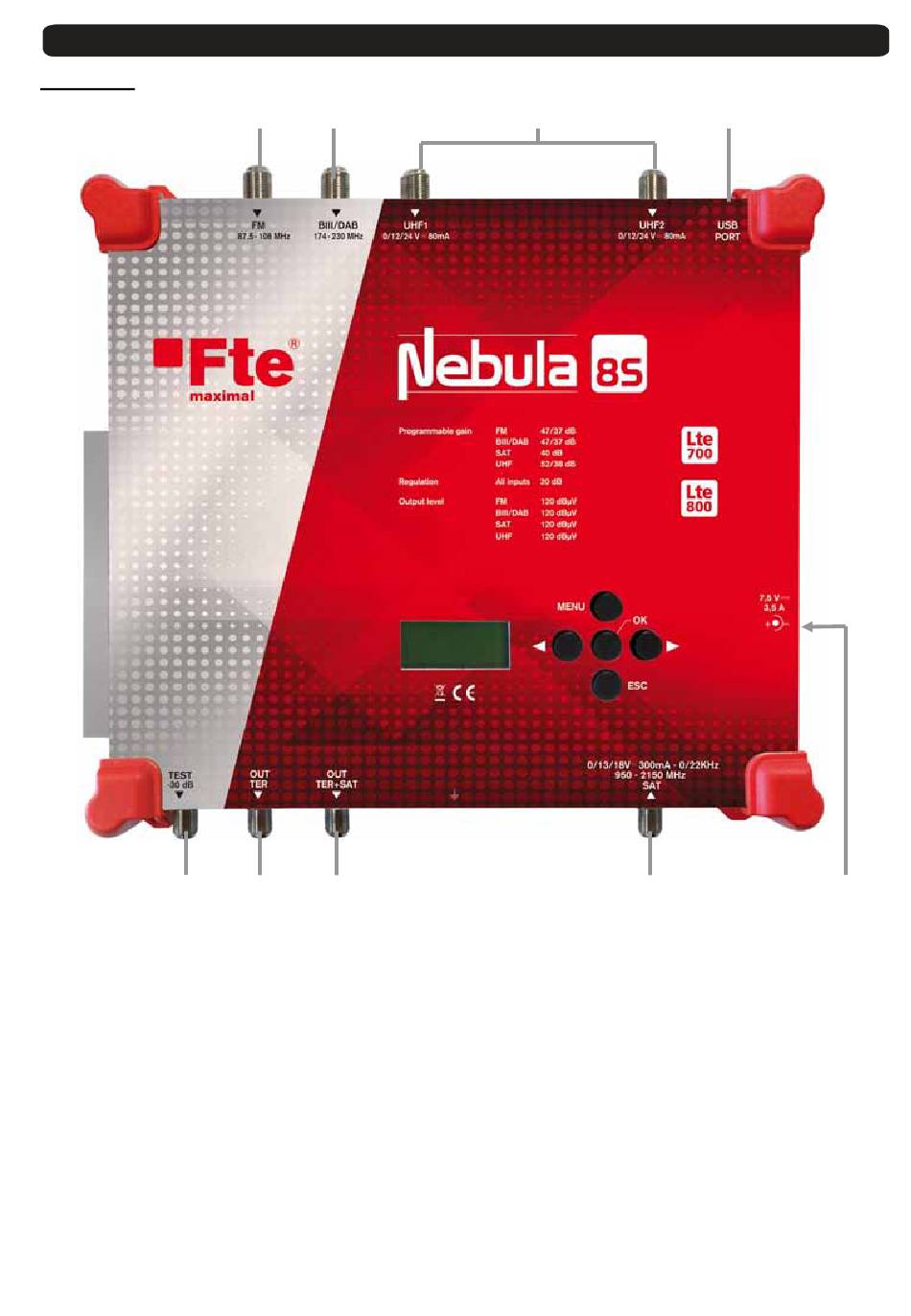

FM: Input for FM antenna
1
BIII-DAB: Input for BIII/DAB antenna
2
UHF1 / UHF2: Inputs for terrestrial UHF antennas
3
USB PORT: USB port to save and restore configuration backups
4
TEST: Test output (-20 dB)
5
OUT: Terrestrial TV output
6
OUT TER+SAT: Terrestrial + Satellite TV output
7
SAT: Input for IF signal
8
DC IN: Connector for the external power supply
9
