FTE Maximal MUX 310 User Manual

Active combiner and amplifier
Hide thumbs
1
2
3
4

Advertisement

Quick Links

Download this manual
MUX 310
USER'S MANUAL

Advertisement

loading
Need help?

Need help?

Do you have a question about the MUX 310 and is the answer not in the manual?

Questions and answers

Related Manuals for FTE Maximal MUX 310

Summary of Contents for FTE Maximal MUX 310

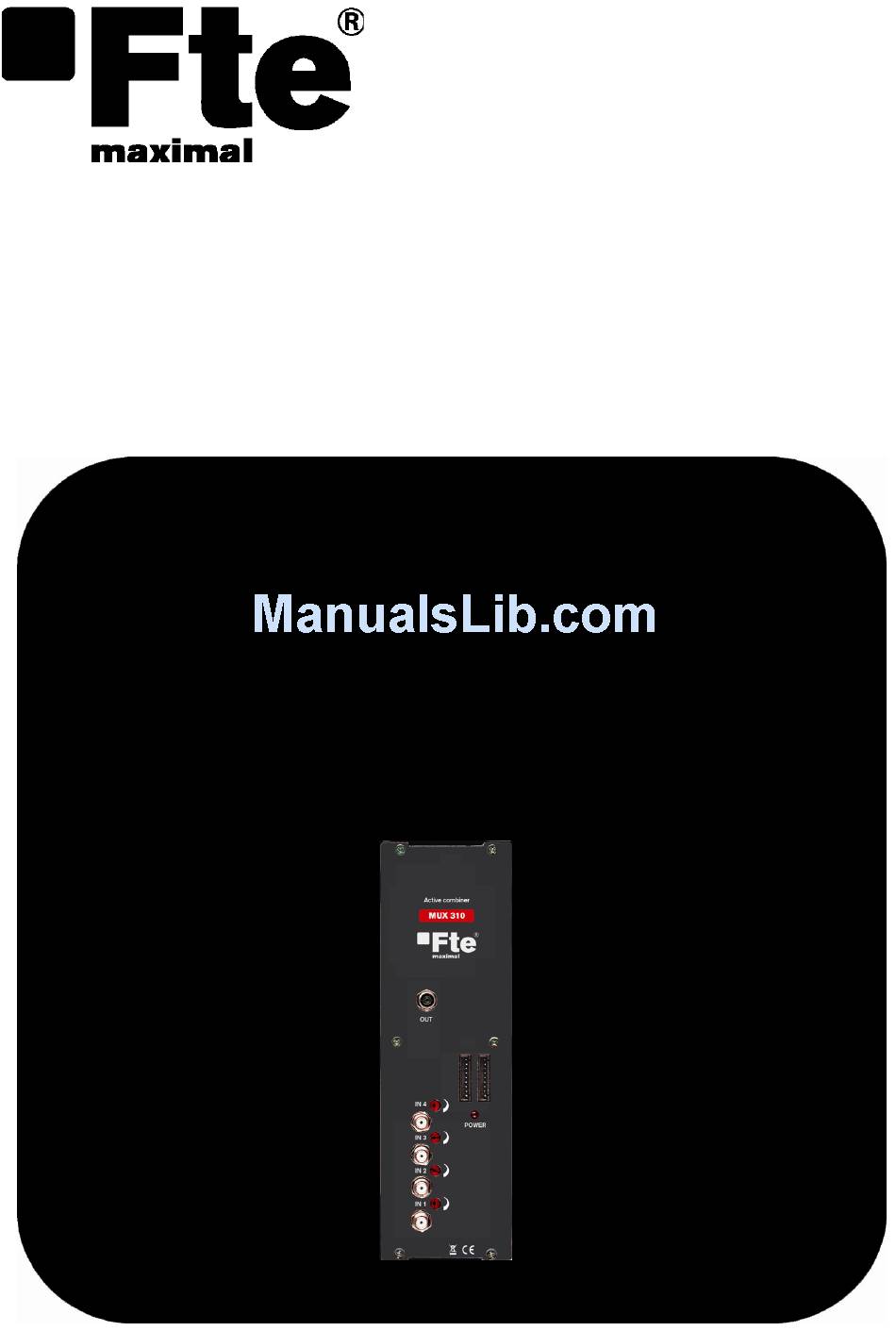

  • Page 1 MUX 310 USER’S MANUAL...
  • Page 2 With this combiner, it is possible to mix signals coming from different head end systems, in order to obtain all the generated TV channels in a single cable. The combiner MUX 310 receives up to four RF signals in the TV band; it mixes them, and amplifies them to have them ready at the output.
  • Page 3 Due to the equipment of 6 receivers with a Power Supply occupy the entire available space in a FRA 300 frame, the MUX 310 is supplied with all the needed pieces for extending the frame and allowing placing one space more.
  • Page 4 Power Supply. The signal that is coming from each Kit is connected to each one of the four inputs of MUX 310. At the output, all the generated TV channels are available. Through the regulation, it is allowed having all the signals with the same level at the output.
