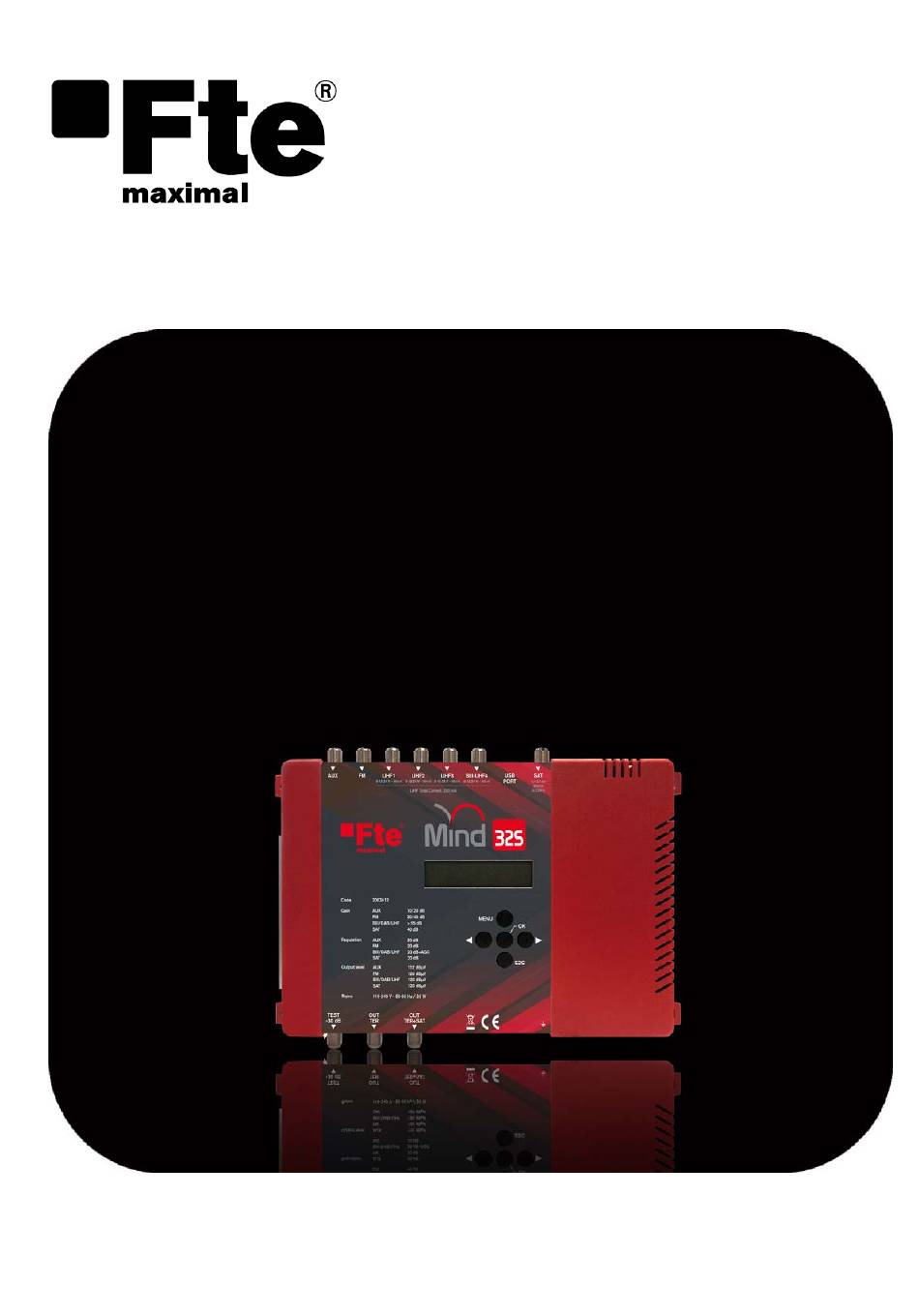

- Page 1 MIND User’s manual v.1.0...
-
Page 2: Table Of Contents
Default Settings ..........................16 Pin ..............................17 Language ............................17 Version ............................. 17 Technical specification ........................... 18 Technical specification MIND 32 ......................18 Technical specification MIND 32S ......................19 Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 3: Starting Installation
Air humidity: When you take the Amplifier from a cold to a warm place, please wait until the amplifier gets the same temperature as the new environment, in order to avoid problems of humidity condensation. Maintenance / Repairing: Within the warranty time all the repairing processes should be done by Fte Maximal technical staff. Otherwise, the warranty will be lost. -
Page 4: Content Of The Box
Depending of the model selected, you will find the following content in the box: MIND 32: 3xF loads 75Ω Programmable amplifier MIND 32 MIND 32S: 4x F loads 75Ω Programmable amplifier MIND 32S Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 5: Accessories And Complete Example
Once the Wide Band Central is programmed, it will be connected through the outputs OUT TER and OUT TER+SAT, the last one is already mixed with the Satellite and Terrestrial signal, designed for ICT Installations. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 6: Description
BIII-UHF4: Input for BIII/DAB and UHF antenna USB PORT: USB port to save and restore configuration backups. OUT: Terrestrial TV Output TEST: Test output (-30 dB) AC POWER: Connector to plug the AC power cord. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 7: Mind 32S
USB PORT: USB port to save and restore configuration backups. SAT: Input for IF signal Power: Input for AC power cord. TEST: Test output (-30 dB) OUT TER: TV terrestrial Output 10 OUT TER+SAT: Terrestrial and Satellite Output Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 8: Control Elements
Move through options and menus with buttons ◄ ► of the keyboard. OK to confirm and ESC to go back. Press MENU at any time to go back to the initial screen. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 9: Menú Biii-Uhf4 Mode
Note: If the input 4 (BIII-UHF4) is configured as DAB mode, it will be not appear as option in the menu. Press ESC to go back to the main menu. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 10: Menu Auto Scanning
To add a new channel select with the buttons ◄ ► until show the UHF1 Adding message in the screen “Adding channel”. Press "OK and will be add and Channel edit the filter. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 11: Menu Uhf2
3.6 Menu UHF2 < UHF2 > Allow add, delete and edit the filter assigned to the input UHF2. Follow the steps in the point Menu UHF1 to do the adjustment. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 12: Menu Uhf3
In order to activate (on) or deactivate (off) press OK to edit and ◄ ► keys to change. Then press OK to confirm. Pulse ► para acceder a la pantalla GAIN FM. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 13: Gain Fm
Press OK to edit the Supp option and change the value to (on) with the ◄ ► keys. Confirm pressing OK again. Press ► to access the next screen. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 14: Gain
The messages that may appear on the screen are: Supply: Supply: OK: The supply voltage is normal. Supply: Hi: The supply voltage is high. It could be a power supply failure. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 15: Config Inport
Pressing OK displays a confirmation screen. Select Yes to confirm to load the Default Settings default value. Once confirmed, it deletes the current configuration to restore the factory settings.. ADDITIONAL ADDITIONAL Default: Default: Press ► to access the next screen. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 16: Pin
This screen shows the software version of the amplifier. Version: 19e48 0.1_0.2.0_0_6 Press ► to return to the first screen of CONFIG submenu or ESC to go back to the main menu. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 17: Technical Specification
265mm x 190 mm x 52 mm The gain value depends on the On / Off state of the input AMP stage The bandwidth of the channel depends of the band. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal... -
Page 18: Technical Specification Mind 32S
265mm x 190 mm x 52 mm The gain value depends on the On / Off state of the input AMP stage The bandwidth of the channel depends of the band. Reserved for technical modifications and/or errors MIND Version en_1.0 Fte maximal...
