Chapter 1.
Installation

1.1. Safety rules

1.- Never place the equipment next to hot sources.
2.- Never undergo the equipment to temperatures that exceed the level of operation of the device.
3.- Do not expose the equipment to dripping or splashing.
4.- Do not place objects filled with liquids on the equipment.
5.- Respect ventilation slots of this equipment. Avoid covering them with any object.
6.- Keep clean and without obstacles a minimum radius of 40 cm around this equipment.
7.- Avoid locations with possibilities of spilling liquids on the inside of the device, and with important changes of
temperature.
8.- Use the equipment only in moderate climates (not in tropical climates).
9.- Never open the cover of the power supply due to electric risk. In case of problems, go always to qualified
technicians.
10.- Never, under no circumstances, open the equipment connected to the electrical net.
11.- During the handling it is better to disconnect the equipment of the electrical net.
12.- Respect the electricity security rules during the assembling. Use materials that obey the current law.
13.- The connecting plug must be accessible in a fast and simple way to have a fast disconnection.
14.- Never touch the plug with wet hands. Also, disconnect always the device before handling the connections.
15.- Never put any heavy object over the device, as it could get damaged.
16.- If the equipment is going to remain some time without use, it is recommendable to disconnect it from the electrical
net.
17.- The repairmen and the maintenance of the equipment must be done by TV and radio specialist technicians.

1.2. Box content

User's manual
Amplifier HLA-ST

1.3. Description and connections

The HLA-ST amplifier can be used as:
RF headends: If we adjust its terrestrial and satellite inputs separately TER and SAT. The input (SAT+TER) will only
input the satellite IF signal and the TER input will only input the terrestrial signal.
Line amplifier: If we adjust its inputs as combined using the SAT+TER input to pass through both bands and the TER
input will be disconnected.
It allows feed devices connected by its inputs or its output. The amplifier has a fixed slope to correct for both terrestrial
and satellite band inputs. It also has gain and slope adjustment via switches for each band.

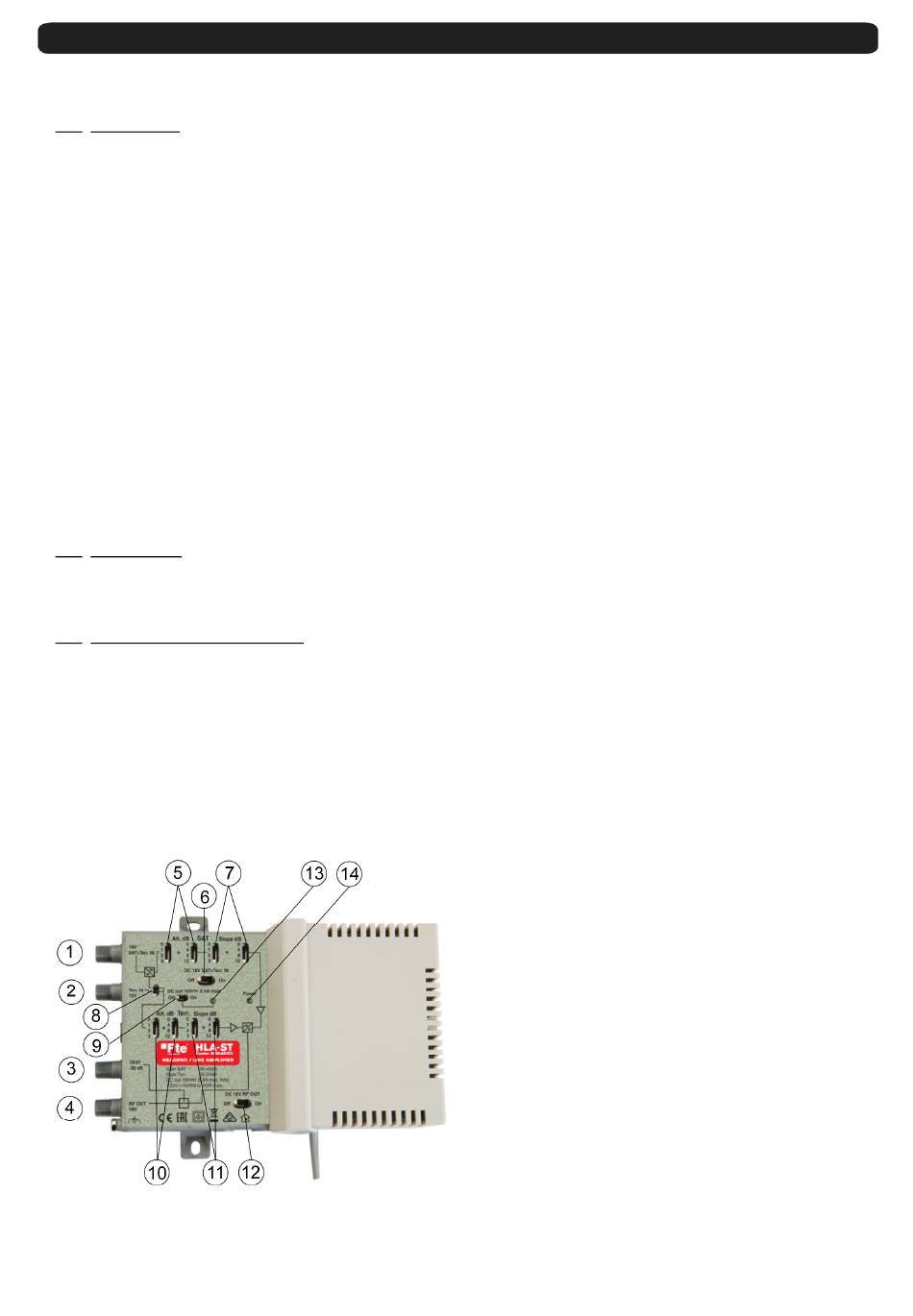

HLA-ST
User's manual · HLA-ST
1.
SAT-TER IN: Satellite input or combined SAT+TERR input
2.
TERR IN: This is the terrestrial input when the amplifier is not
in combined mode
3.
TEST: TEST RF output -30 dB
4.
OUT RF: RF Output
5.
SAT Att: Satellite gain adjustment
6.
DC 18V SAT+TER IN: This Switch allows or not feed power
+18Vdc to the input SAT+TERR IN.
7.
SAT Slope: Satellite slope adjustment
8.
Terrestrial input selection: Select the input TER IN or combine
in the input SAT-TER IN.
headend or line amplifier mode.
9.
DC OUT 12V: Allows feed12 volts to the input TER IN.
10. TERR ATT: Terrestrial gain adjustment.
11.
TERR SLOPE: Terrestrial slope adjustment
12.
DC 18V OUT RF: This switch allows or not feed a18Vdc to a
device connected to the output RF.
13.
LIGTH INDICATOR 12V: This light is on when the 12Vdc is
active
14.
Power: This light is on when the 18Vdc is active.
- 1 -
This switch select between
Versión_en_1.0
