DOEPFER A-100 Series Manual
Voiced/unvoiced detector
Hide thumbs
Also See for A-100 Series:
- Owner's manual (690 pages) ,
- Manual (22 pages) ,
- User manual (12 pages)
Advertisement
Quick Links
doepfer
A-129 /5
Voiced/Unvoiced Detec.
Speech
Input
Speech
Output
Gate
Output
Unvoiced
Input
Voiced
Input
Voiced / Unvoiced Output
System A - 100
Gain
Treble
Boost
Unvoiced
Voiced/Unvoiced Detector

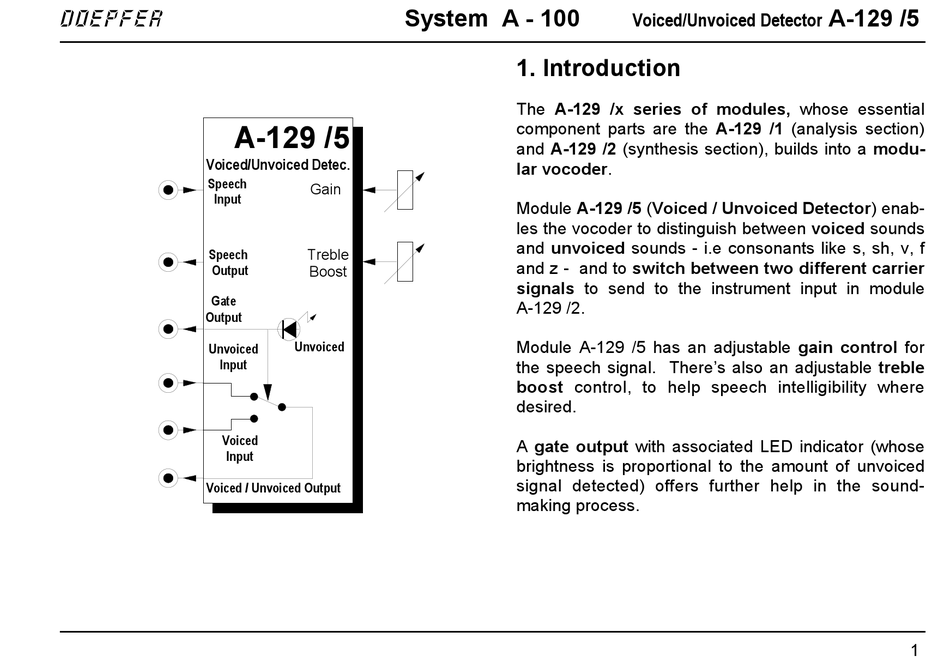

1. Introduction
The A-129 /x series of modules, whose essential
component parts are the A-129 /1 (analysis section)
and A-129 /2 (synthesis section), builds into a modu-
lar vocoder.
Module A-129 /5 (Voiced / Unvoiced Detector) enab-
les the vocoder to distinguish between voiced sounds
and unvoiced sounds - i.e consonants like s, sh, v, f
and z - and to switch between two different carrier
signals to send to the instrument input in module
A-129 /2.
Module A-129 /5 has an adjustable gain control for
the speech signal. There's also an adjustable treble
boost control, to help speech intelligibility where
desired.
A gate output with associated LED indicator (whose
brightness is proportional to the amount of unvoiced
signal detected) offers further help in the sound-
making process.
A-129 /5
1
