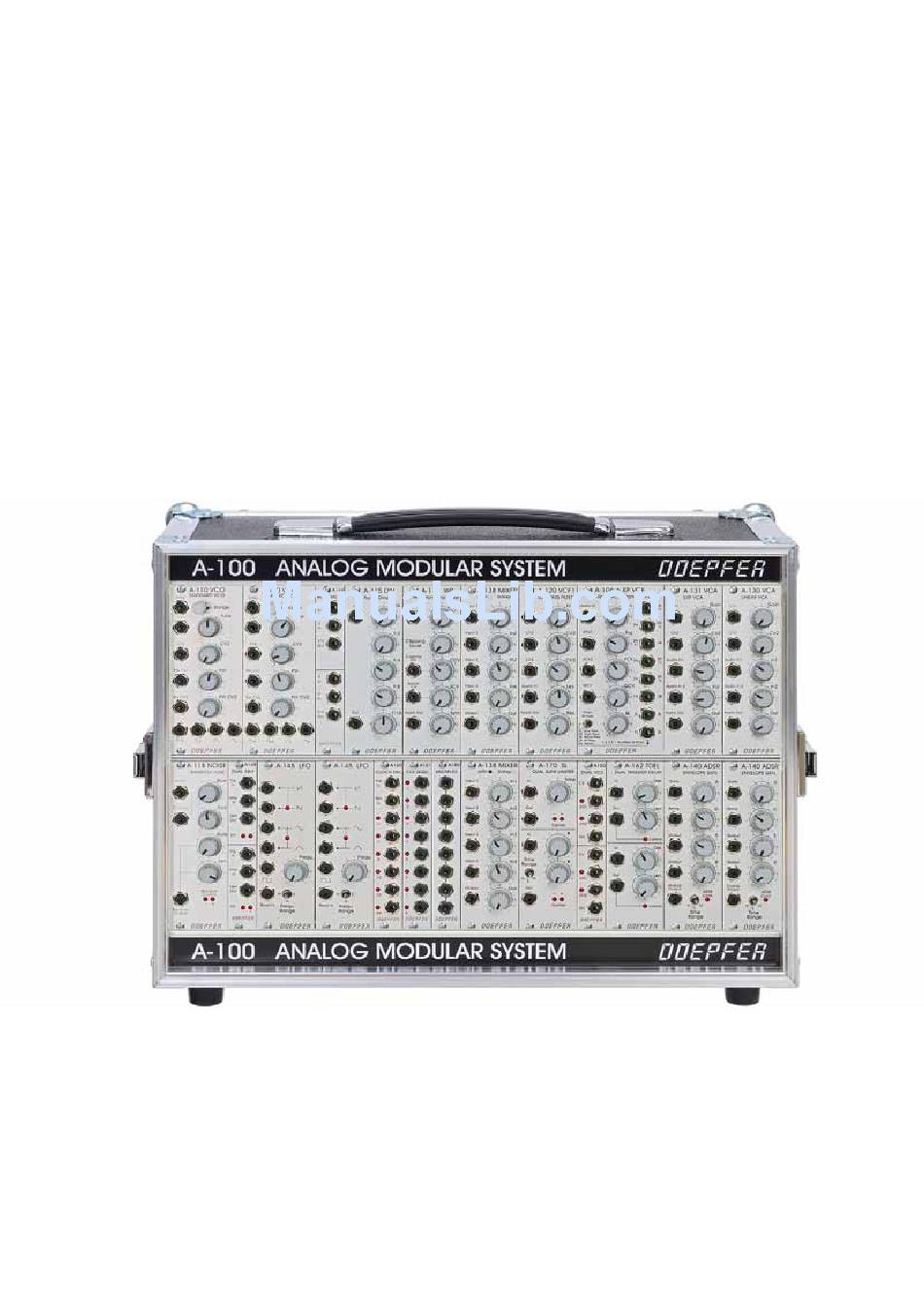

- Page 1 A-100 Analog Modular System Operating Instructions doepfer Musikelektronik Gmbh (Version for A-100 cases with A-100PSU2 or A-100PSU3 / 2016)
- Page 2 Warning: Inside the A-100 cases are dangerous voltages. It is essential to take careful note of the following safety instructions: • Before using any part of the instrument, read these instructions and notes carefully. • The instrument may only be used for the purpose described in this operating manual. Due to safety reasons, the instrument must never be used for other purposes not described in this manual.
- Page 3 • If the fuse has to be replaced only the type of fuse specified at the back of the A-100 frame is allowed. If another fuse is used the warranty is void and the A-100 may be damaged. The fuse is located at the mains inlet on the back of the A-100 case.
-
Page 4: Care And Maintenance
Even the A-100 DIY kit 1 contains a fuse. There is no difference between 115V and 230V for the fuse value as the fuse is used to protect the secondary circuit of the supply (i.e. the low voltage). The required value is 2.5A T (time lag / slow blow) and is valid for the transformers that are available from... - Page 5 ! This will destroy the module and the warranty is void ! In the A-100 the colored wire of the ribbon cable marks -12V and this wire has to point to the bottom under all conditions ! Each case contains also one or more power supplies.
- Page 6 Normally this will apply, provided that only A-100 modules are used. • If that's OK: First of all, take the A-100’s plug out of the wall socket. • Check if each module is equipped with a ribbon cable with a 16 pin female connector at the open end.
- Page 7 The manual is also available at extra charge in printed form in a ring binder. Please contact your local dealer if you want to order the printed version of the manual. More detailed information about electrical and mechanical details of the A-100 is also available on our website: www.doepfer.com...
