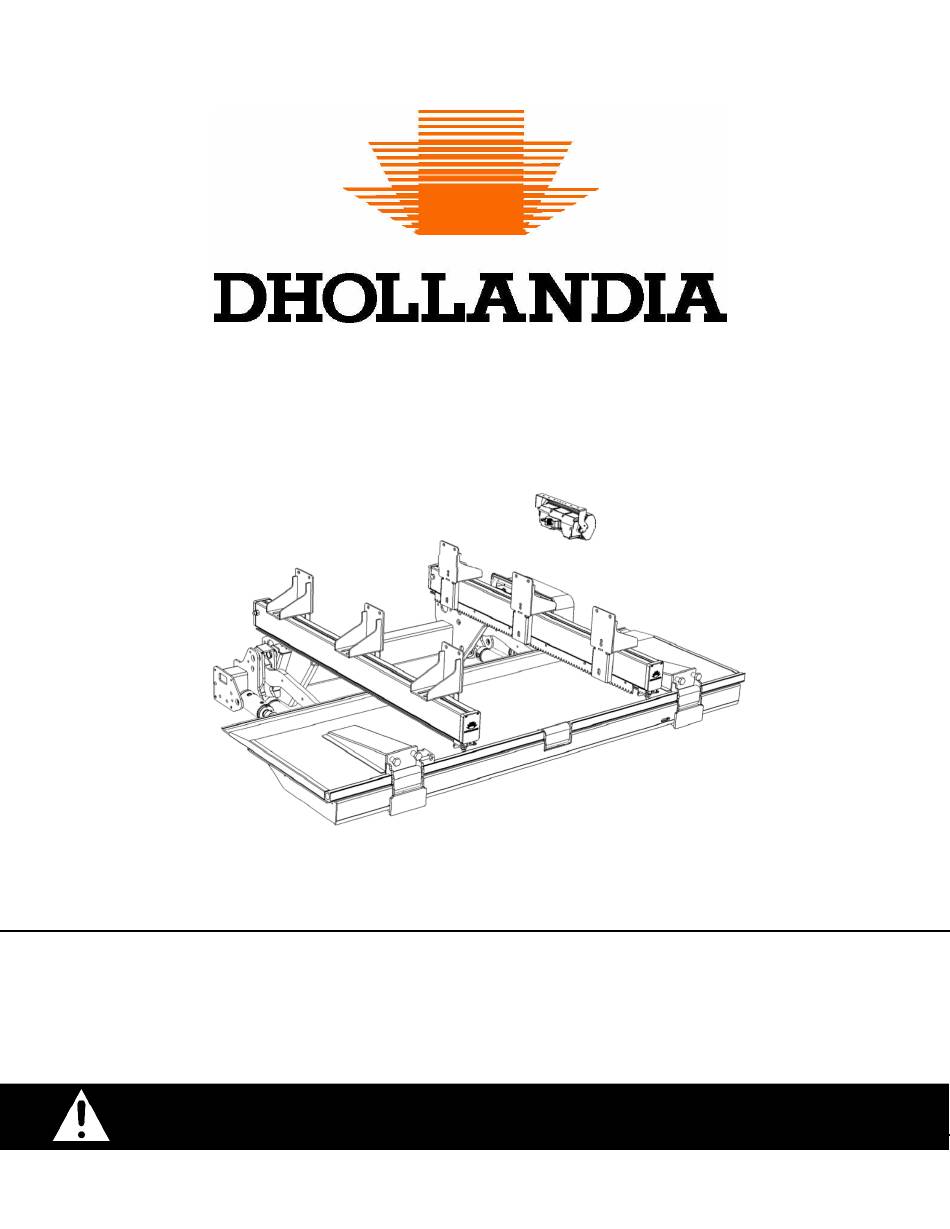

DH-S*
INSTALLATION MANUAL
900–6,600lbs (400-3000kg)
** Pictured: SM.20 liftgate
Manufacturer:
DHOLLANDIA US, L.L.C.
Tel : +1 704 629 5542 E-mail : us.info@dhollandia.com
132 W Virginia Ave
Bessemer City North Carolina, 28016
website : www.dhollandia.com
Read the manual in its entirety before operating the liftgate
Keep this manual in the vehicle cab, as reference for the driver and liftgate operator
Doc: FIT_S_US_EN_2019_rev4
Rev: 4 Date: OCTOBER 14, 2019
