Summary of Contents for Duncan DIAMONDHEAD
- Page 2 Diamondhead aims to capture the power and versatility of that quintessential rig in a package that will find a space on any pedalboard.

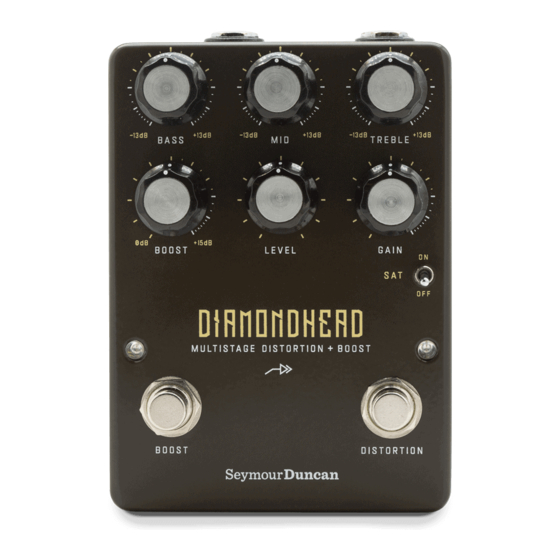

- Page 3 1. Bass 8. Distortion Indicator 2. Midrange 9. Distortion Footswitch 3. Treble 10. Booster Indicator 4. Booster Level 11. Booster Footswitch 5. Distortion Level 12. Input Jack 6. Distortion Gain 13. Output Jack 7. Saturation Switch 14. Power Jack...
- Page 4 Bass Control +/-16dB @ 80HZ, Q-2.6 Midrange Control +/-13dB @ 800Hz, Q-1.3 Treble Control +/- 13dB @ 6kHz, Q-1.2 Booster Level Provides up to 15dB of post-distortion boost, can be used as an independent booster. Distortion Level Adjusts the loudness level of the distortion circuit. Oc- curs immediately before the booster in the circuit flow.
-
Page 5: Output Jack
Distortion Footswitch Alternately engages and disengages the distortion circuit. Booster Indicator When the LED is on, the booster circuit is active. Booster Footswitch Alternately engages and disengages the booster circuit. Input Jack Plug in a musical instrument cable or the signal from the preceding pedal on your board. -
Page 6: Sample Settings
Sample Settings Highway Priest Lower gain, bright early 80’s classic metal Boost: off Classic 80’s Hard Rock Higher gain, warmer low end for tight palm-muted rhythm. Perfect for all 80’s hard rock songs Boost: off Pantallica Big mid scoop and tight bottom Boost: off... - Page 7 British Snarl Mid-range punch Lower Gain Note articulation Mid-late 70’s classic hard rock Boost: off Snotty Mids Powerful EQ and mid-range bump Gives an aggressive tone for distinct leads and pissed off power chords Boost: off Infinite Sustain Thick, rich lead tone Notes bloom with incredible sustain Boost: ON...
-
Page 8: Disposal Guidelines
Disposal Guidelines In the unlikely event that you ever need to dispose of this product, it must be disposed of properly by handing it over to a designated collection point for the recycling of waste electronic equipment. Please contact your local household waste disposal service or the shop where you purchased this product for those locations. -
Page 9: Limited Warranty
Limited Warranty Seymour Duncan offers the original purchaser a one-year limited warranty on both labor and materials from the day this product is purchased. We will repair or replace this product at our option if it fails due to faulty workmanship or materials during this period. - Page 10 Notes...
- Page 12 Commitment to Quality and Community Seymour Duncan takes pride in designing and crafting our products to create the most amazing sound possible. Our Made in the USA label designates that the products are designed in Santa Barbara, California and manu- factured in the USA with quality parts sourced in the United States and around the world.
