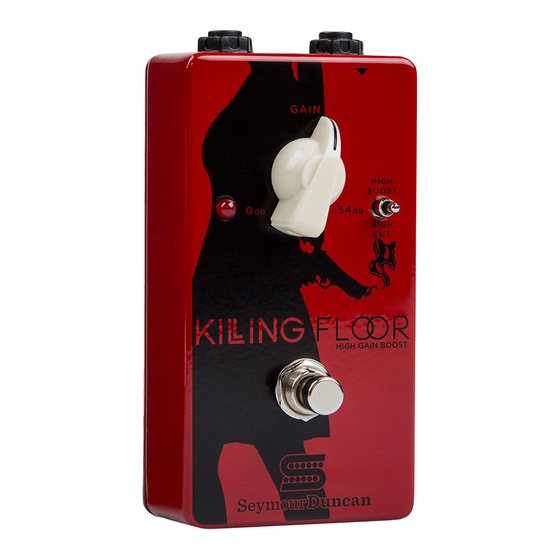

Duncan Killing Floor User Manual

High gain boost
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
- K I L L I N G F L O O R -
H I G H G A I N B O O S T
U S E R ' S G U I D E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Killing Floor and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duncan Killing Floor

Summary of Contents for Duncan Killing Floor

  • Page 1 - K I L L I N G F L O O R - H I G H G A I N B O O S T U S E R ’ S G U I D E...

  • Page 2: How It Works

    Voicing Switch – Selects between High Boost, High Cut or Flat modes for tailoring your tone. Status LED – Indicates when the Killing Floor is active. LED is on when the unit is engaged, off when in true bypass mode.
  • Page 3 Input Jack – Connect your guitar or other pedal cable here. Output Jack - Run cable to amp input or to next effect pedal. Power Jack – You can use any 9V -18V regulated DC adapter (negative polarity center terminal).

  • Page 4: Let's Get Started

    LET’S GET STARTED! 1. Plug in any regulated 9V - 18V power supply with a negative polarity center terminal. 2. Run good quality, unbalanced, shielded guitar cables from your guitar to the input jack and from output jack or jacks to your amp’s input or to the next pedal on your pedalboard. 3.
  • Page 5 Awesomizer GAIN Enhances the character of your guitar by adding presence, punch and sparkle HIGH without pushing too far into overdrive. This setting works equally well as a gain BOOST boost or an “always on” mode. HIGH 34dB Gain Changer GAIN Take a classic rock rhythm tone and push it into 80s metal territory.
  • Page 6 Specifications: Type of circuitry: The Killing Floor uses a hybrid J-FET/Op-Amp, optimized for low order harmonics Bypass: True hard-wire bypass Control Functionality: Gain Control Range – 0dB to 34dB Voicing Switch: Up – High Boost, 7 dB @ 10 kHz Middle –...

  • Page 7: Limited Warranty

    COMMITMENT TO QUALITY AND COMMUNITY Seymour Duncan takes pride in designing and crafting our products to create the most amazing sound possible. Our Made in the USA label designates that the products are designed in Santa Barbara, California and manufactured in the USA with quality parts sourced in the United States and around the world.

  • Page 8: Disposal Guidelines

    DISPOSAL GUIDELINES In the unlikely event that you ever need to dispose of this product, it must be disposed of properly by handing it over to a designated collection point for the recycling of waste electronic equipment. Please contact your local household waste disposal service or the shop where you purchased this product for those locations.
  • Page 9 PERSONAL SETTINGS USER NOTES GAIN HIGH BOOST HIGH 34dB USER NOTES GAIN HIGH BOOST HIGH 34dB...
  • Page 10 PERSONAL SETTINGS USER NOTES GAIN HIGH BOOST HIGH 34dB USER NOTES GAIN HIGH BOOST HIGH 34dB...
  • Page 12 5427 Hollister Ave Santa Barbara, CA 93111 (805) 964-9610 © 2016 Seymour Duncan. All Rights Reserved.
