TM
For Tone That Sets You Apart
TM
Congratulations
Seymour Duncan
on your purchase of the
SFX-07 Tremolo Pedal™
. You can start using your Tremolo right
away and you'll be able to immediately revel in the hypnotic, pulsing,
vibey tones that this pedal is capable of. You might want to first read
through these instructions in their entirety to gain valuable information
that will enhance your enjoyment of your Tremolo.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Duncan Shape Shifter SFX-07
Summary of Contents for Duncan Shape Shifter SFX-07
- Page 1 Congratulations Seymour Duncan on your purchase of the SFX-07 Tremolo Pedal™ . You can start using your Tremolo right away and you’ll be able to immediately revel in the hypnotic, pulsing, vibey tones that this pedal is capable of. You might want to first read through these instructions in their entirety to gain valuable information that will enhance your enjoyment of your Tremolo.
-
Page 2: General Information
General Information Between the 100% pure analog signal path and the digital tempo control, your SFX-07 is a trem like no other trem. Actually, that’s not entirely true, because if you want the kind of tremulation that you know and love from your favorite tube amps, this pedal can do it. But if, in addition to that, you want inspiring and crazy tones that you’ve never... -
Page 3: Explanation Of Controls

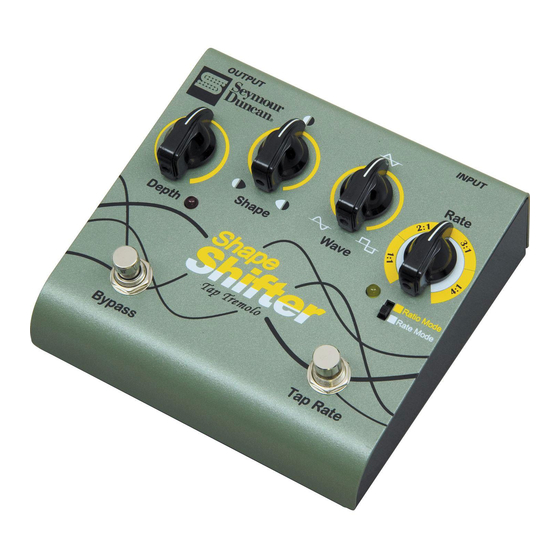

Explanation of Controls Front Panel (See page 2) 1. Depth – “How much tremolo would you like?” This wide-range control smoothly varies the tremolo effect from a subtle shimmer to an intense rhythmic pulse. 2. Shape – “When should the rise and fall occur?” This amazing control allows for the variation of tremolo rise and fall time (how fast or slow the volume increases and decreases) for unique percussion and “reverse decay”... -
Page 4: Back Panel
(or if compatible, the return jack of your amp’s effects loop) 3. Power Jack – This is where you can connect a regulated 9-volt DC adapter (center negative) such as the Seymour Duncan 11802 if you opt not to run the Tremolo on a 9-volt battery. BACK PANEL... - Page 5 The SFX-07 is an incredibly flexible effect and, as a result, it can be worked into your setup in a variety of ways. Let’s examine a couple of possibilities. Between Guitar and Amp Take the ¼” mono instrument cable from your guitar and plug it into the Trem’s Input jack.
- Page 6 In-Depth Examination of Features The SFX-07 Shape Shifter is capable of a huge range of sounds from the traditional, old-school trem tones heard on your favorite recordings to wild, sci-fi effects that are not possible with any other tremolo pedal on the planet.
- Page 7 Fluttering Shimmer These settings give a cool, warbly quality to single-note lines reminiscent of organs and vibraphones. Helicopter Chop This is a more radical version of tremolo that produces an on/off stutter that can really drive a tune.
- Page 8 For the Sonic Adventurer Notes on Tap Tempo The Tap Tempo feature of the SFX-07 is an incredibly powerful tool that takes this pedal way beyond what “normal” tremolos can do. It totally removes the guesswork of trying to sync your trem pulse to a song’s groove.
- Page 9 Shape Shifting By now you’ve figured out that the SFX-07 Tremolo can do classic trem beautifully. But it can do more—a lot more. The key to many of the SFX-07’s most unique effects lies in the Shape control. So what does this knob do anyway? We’re glad you asked .
- Page 10 Backwards? This is a cool, psychedelic sound that will add a whole ’nother dimension to a tune, whether you sync it to the song’s tempo with the Tap footswitch or just set the rate randomly. Faux Piano This tone really lends itself to Tap Tempo synchronization.
-
Page 11: Specifications
Specifications Type of Circuitry: Pure analog signal path, digital tremolo timing Input Impedance: 1 Meg Ohm Output Impedance: 1.2K ohm Gain: 2.5dB maximum Max Output before Saturation: 2.8V RMS S/N Ratio: 95dB Frequency Response: Wideband; -3dB at 3Hz and 165 kHz THD: 0.09% @ 1 kHz, 1VRMS Tremolo Characteristic: Gain variation linear in dB Control functionality:... - Page 12 Seymour Duncan offers the original purchaser a one-year limited warranty on both labor and materials, starting from the day this product is purchased from an Authorized Seymour Duncan Dealer. We will repair or replace this product, at our option, if it fails due to faulty workmanship or materials dur- ing this period.
