Congratulations
Seymour Duncan
on your purchase of the

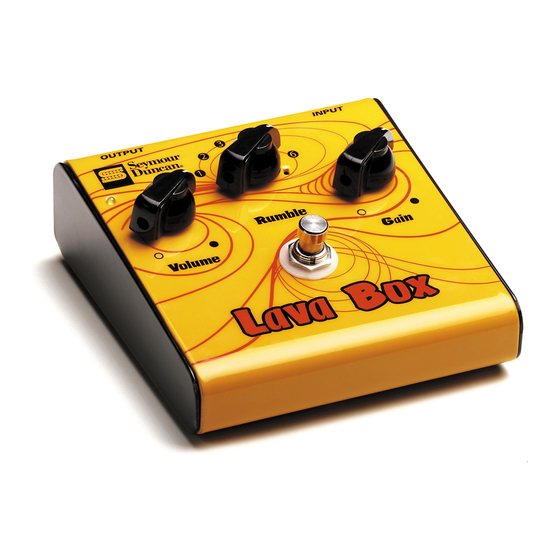

SFX-05 Lava Box™
Lava Box
distortion. You can start using your
right away and you'll be able to immediately crank out the dynamic, throaty,
singing tones that this pedal is capable of. You might want to first read
through these instructions in their entirety to gain valuable information that
will enhance your enjoyment of your Lava Box.
Advertisement
Table of Contents
Related Manuals for Duncan Lava BoxTM Distortion SFX-05
Summary of Contents for Duncan Lava BoxTM Distortion SFX-05

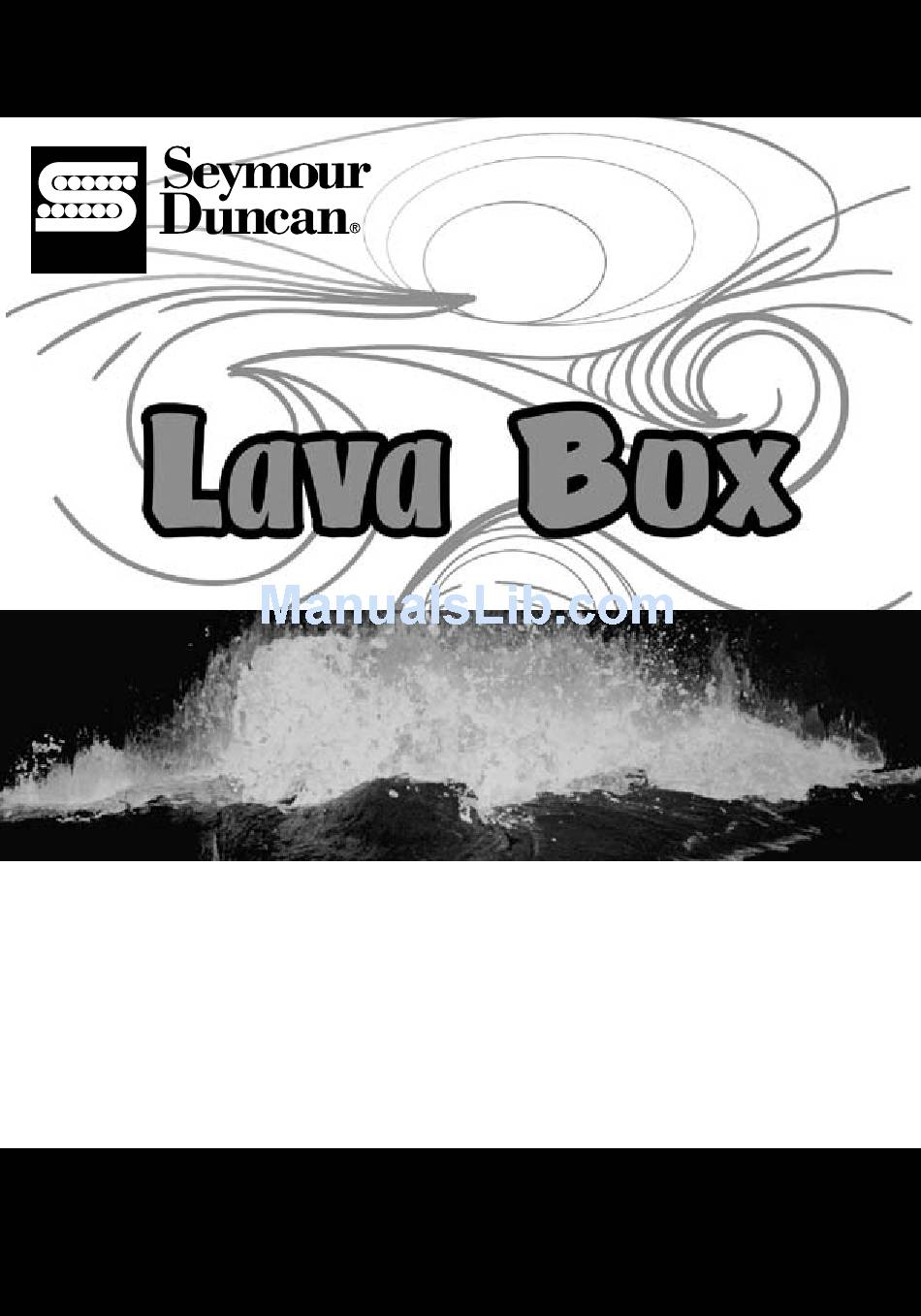

- Page 1 For Tone That Sets You Apart Congratulations Seymour Duncan on your purchase of the SFX-05 Lava Box™ Lava Box distortion. You can start using your right away and you’ll be able to immediately crank out the dynamic, throaty, singing tones that this pedal is capable of. You might want to first read through these instructions in their entirety to gain valuable information that will enhance your enjoyment of your Lava Box.
- Page 2 General Information The Lava Box is not your ordinary distortion/overdrive pedal. It actually reacts more like a great amp than a stompbox, with the depth and dynamics that give well-made amps so much character. When you think about the tones that defined so many of the true guitar heroes throughout history, they all really speak.
- Page 3 Explanation of Controls Front Panel 1. Volume – This control regulates the overall level of your signal when the effect is engaged. CAUTION: The Lava Box is capable of serious output so go easy with this control at first, starting at the fully counterclockwise position.
- Page 4 Explanation of Controls Back Panel 1. Input Jack – Plug in your guitar here. 2. Output Jack – Provides the output signal. Run a cable from this jack to the input of a guitar amp or to the input of the next effect in your chain. 3.
- Page 5 The SFX-05 Lava Box is capable of a huge range of sounds, from subtle overdrive textures to skinny special-effect tones to humongous, singing lead sounds. The settings below are great starting points. Tight Rhythm Tone This is a great sound for power chords and arpeggiated rhythm lines alike.
- Page 6 Battery To make your Lava Box work, you’ll either need to insure that a fresh 9-volt battery is installed or connect a regulated 9-volt DC power supply—such as a Seymour Duncan 9-volt power adapter. To install or replace the battery: a.
- Page 7 Specifications Gain Range: 33dB-57dB Input Impedance: 12KΩ Output Impedance: 2.5KΩ Max Output before Saturation: 2.9Vrms S/N Ratio: 113dB referred to the input with 20KΩ source impedance THD @ 1Vrms out @ 1 KHz with maximum gain: 0.38% THD @ 1Vrms out @ 1 KHz with minimum gain: 0.065% Type of Circuitry: 2 Stage Mosfet Input with CMOS Class A Output...
- Page 8 Limited Warranty / Disposal Guidelines Seymour Duncan offers the original purchaser a one-year limited warranty on both labor and materials starting from the day this product is purchased from an Authorized Seymour Duncan Dealer. We will repair or replace this product, at our option, if it fails due to faulty workmanship or materials during this period.
