D I R T Y D E E D
-
D I S T O R T I O N
U S E R ' S G U I D E

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Dirty Deed and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Duncan Dirty Deed

Summary of Contents for Duncan Dirty Deed

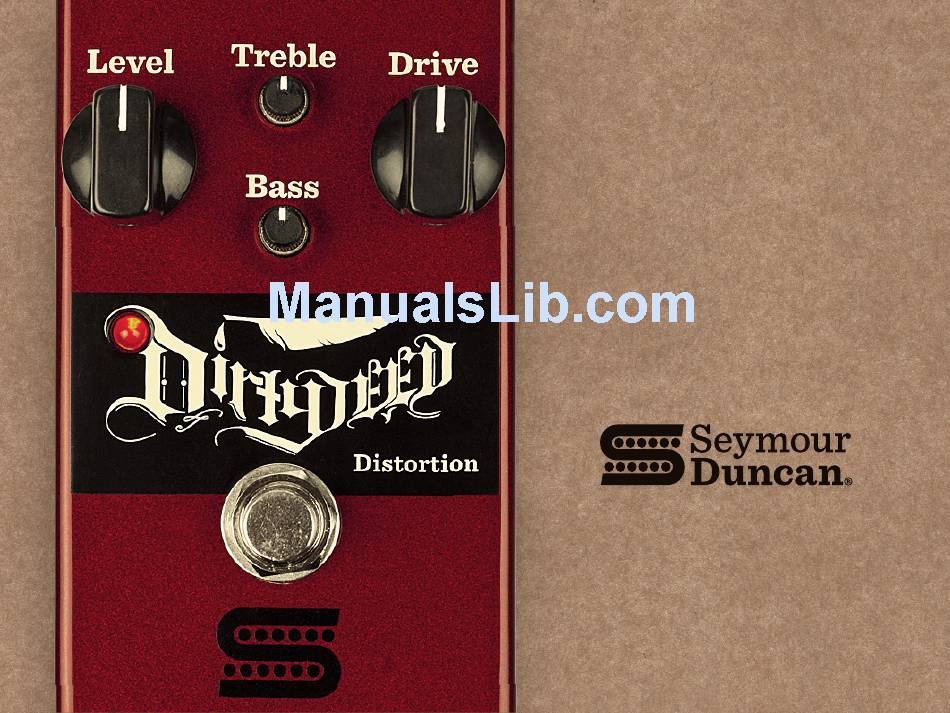

  • Page 1 D I R T Y D E E D D I S T O R T I O N U S E R ’ S G U I D E...
  • Page 2 H O W I T W O R K S 1. Level - Sets the overall level of your signal. CAUTION: The Dirty Deed Distortion is capable of serious output! 2.
  • Page 3 4. Drive - Regulates the amount of distortion the Dirty Deed is putting out. Low settings give you a tight, slightly overdriven tone. Turning it up increases the distortion dramatically, for huge power chords and endless, singing sustain. 5. True Bypass Footswitch - Removes the circuit from your guitar’s signal via a hardwired connection from the input jack to the output jack.
  • Page 4 3. Start with the Treble, Bass and Drive at 12 o’clock and Level at lowest setting. Set your amp level appropriately. 4. Engage the Dirty Deed Distortion by pressing the footswitch – the LED will come on when it’s active.
  • Page 5 Power Crunch This tone scoops out more of the mids while bumping the lows and highs for a mean, aggressive sound that’s razor sharp. Open Rhythm Crunch An incredibly responsive, dynamic, chord sound. Ease up on your picking attack and it’s clean, bash it and it will roar like a lion.
  • Page 6 S P E C I F I C A T I O N S Distortion Circuitry: Discrete MOSFET pair Bypass: True bypass Gain Control Range: CCW: 30dB +/- 1.5dB; CW: 63dB +/- 1.5dB EQ Center Frequencies: Bass 90Hz; Treble 2.1 KHz S/N Ratio at minimum gain and maximum level settings: 120dB Noise referred to input, 400Hz to 20kHz: 1uV rms THD @ 10mVrms input @ 1 KHz with 30dB of gain: 0.12%...
  • Page 7 L I M I T E D W A R R A N T Y Seymour Duncan offers the original purchaser a one-year limited warranty on both labor and materials, from the day this product is purchased. We will repair or replace this product, at our option, if it fails due to faulty workmanship or materials during this period.
  • Page 8 5427 Hollister Ave Santa Barbara, CA 93111 (805) 964-9610 © 2013 Seymour Duncan. All Rights Reserved.

This manual is also suitable for:

Dirty deed distortion
