For Tone That Sets You Apart
Congratulations
Seymour Duncan

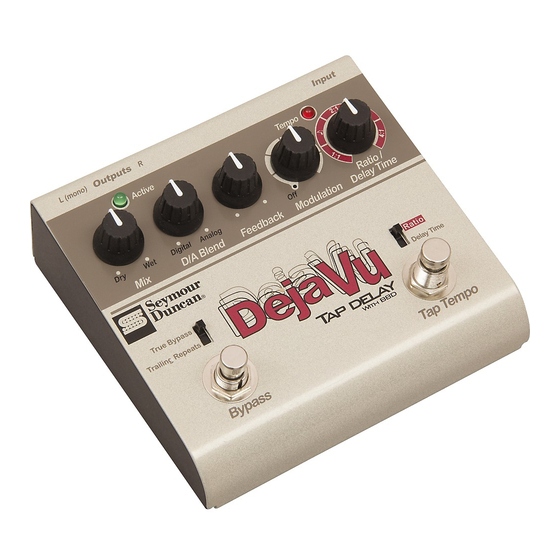

on your purchase of the
SFX-10 Déjà Vu Tap Delay w/BBD™
. You can start using your
Tap Delay w/BBD right away and you'll be able to immediately revel
in the lush, spacious repeats that this pedal is capable of. You might
want to first read through these instructions in their entirety to gain
valuable information that will enhance your enjoyment of your Déjà Vu
Tap Delay w/BBD.
1
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Duncan SFX-10 Déjà Vu
Summary of Contents for Duncan SFX-10 Déjà Vu
- Page 1 For Tone That Sets You Apart Congratulations Seymour Duncan on your purchase of the SFX-10 Déjà Vu Tap Delay w/BBD™ . You can start using your Tap Delay w/BBD right away and you’ll be able to immediately revel in the lush, spacious repeats that this pedal is capable of. You might want to first read through these instructions in their entirety to gain valuable information that will enhance your enjoyment of your Déjà...
-
Page 2: General Information
Your Seymour Duncan stompbox is designed for years of solid performance. From the 16 AWG steel chassis to the studio-grade circuit design, this Tap Delay w/BBD is nothing but quality, through and through. -
Page 3: Explanation Of Controls
Explanation of Controls Front Panel (See page 2) 1. Mix (dry-wet) – This control sets how loud the delays will be in rela- tion to the original signal. Counter-clockwise produces dry only while clockwise produces only delays. Remember, the dry signal is always analog. - Page 4 Explanation of Controls 6. Tempo LED – This light pulses in time with the delay effect for easy delay time setting. When in Ratio mode, the light will pulse on the 1:1. As you advance through the different subdivision ratios, the LED will stay the same.
-
Page 5: Back Panel
Back Panel 1. Input Jack – Plug in your guitar signal here or if compatible, the send from your amp’s effects loop. 2. Power Jack – This is where you can connect a 9-volt DC adapter (center negative) if you opt not to run the Déjà Vu on a 9-volt battery. - Page 6 Back Panel The SFX-10 is an incredibly flexible effect and, as a result, it can be worked into your setup in a variety of ways. Let’s examine a couple of possibilities. Between Guitar and Amp Take the ¼” mono instrument cable from your guitar and plug it into the Déjà...
-
Page 7: Sample Settings
In-Depth Examination of Features The SFX-10 Déjà Vu Tap Delay w/BBD is capable of a huge range of sounds from the traditional, old-school delay tones you remember hearing on your favorite recordings to pristine quality exact replicas found in today’s digital equipment and software. But in between those two points, and with the addition of modulation and the wet loop, lies a fourth dimension of previously unimaginable sounds, sure to spark inspiration in all forms. - Page 8 Slap Back Heaven Ratio/Delay Time: set for short delay time, or choose 4:1 Ratio and tap it in to the beat of the song. Chicken pick your way into heav- en with analog slap back with a little extra bite from some digital blend.
- Page 9 A Space Odyssey This is where digital and modu- lated analog converge. Find new dimensions as these delays trail down into modulation stew. Rhythm Chime Ratio/Delay Time: Choose Dotted 8th note in Ratio mode, tap it in to the beat of the song. This will give you a textural wash of rhythm and attack that will fill a lot of space without...
- Page 10 For the Sonic Adventurer Notes on Tap Tempo! The Tap Tempo feature of the SFX-10 is an incredibly powerful tool that takes this pedal way beyond what “normal” delays can do. It totally removes the guesswork of trying to sync your Delay time to a song’s groove.
-
Page 11: Loop Mode
Long Delay Times (Press and hold) The Déjà Vu is capable of extremely long delay times (around 20 sec- onds) and contains a stealth loop mode at the end of the Delay Time knob’s travel. (Loop feature not available in Ratio mode) The Tap switch is intelligent. -
Page 12: Volume Pedal
Playing with the Wet Out/Loop By now you’ve figured out that the SFX-10 Tap Delay w/BBD can do clas- sic delay beautifully. But it can do more—a lot more. The key to many of the SFX-10’s most unique effects lies in the Wet Out/Loop jack. So what does this jack do anyway? We’re glad you asked . -
Page 13: Pitch Shifter
Wah Pedal: Rock back and forth and your delays will talk back to you. Or leave it in one position as a narrow band frequency boost, sweeping from extremely “lo-fi” to a thin, “transistor radio” effect. Equalizer: Shift the tone of the delays anywhere you want within the available frequencies of the EQ. -
Page 14: Technical Specifications
Technical Specifications Input Impedance – 1 Megohm (1000K ohms) Output Impedance – 1K ohm (1000 ohms) Power source – 9V battery or external 9VDC regulated wall transformer with center pin negative. Current drain – 65mA. Delay time – 3ms to 20 seconds Regeneration –... -
Page 15: Battery Life
Battery Life Most digital delay pedals have the distinct reputation of “eating” batter- ies. They consume batteries quickly and it is generally recommended to use them with powered DC adapters whenever possible. The Déjà Vu is no exception. It is a very powerful pedal, and therefore requires great power to operate. - Page 16 Seymour Duncan offers the original purchaser a one-year limited warranty on both labor and materials, starting from the day this product is purchased from an Authorized Seymour Duncan Dealer. We will repair or replace this product, at our option, if it fails due to faulty workmanship or materials dur- ing this period.
