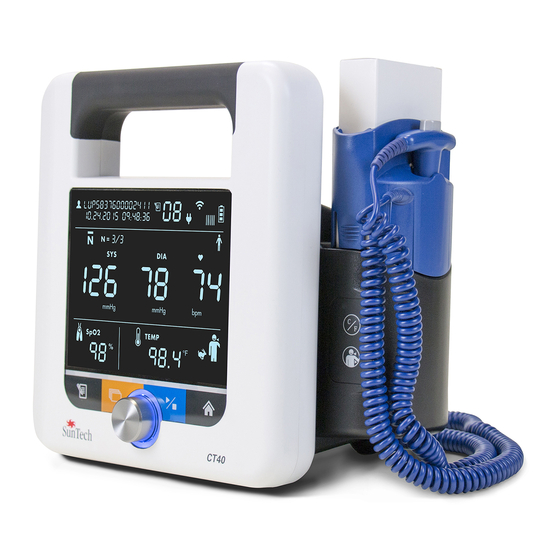

SunTech CT40 Quick Reference Card
  1. Manuals
  2. Brands
  3. SunTech Manuals
  4. Medical Equipment
  5. CT40
  6. Quick reference card

SunTech CT40 Quick Reference Card

Bp+vitals
Hide thumbs Also See for CT40:

Advertisement

Quick Links

Download this manual
BP+Vitals
Quick Reference Cards

Advertisement

loading
Need help?

Need help?

Do you have a question about the CT40 and is the answer not in the manual?

Questions and answers

Related Manuals for SunTech CT40

Summary of Contents for SunTech CT40

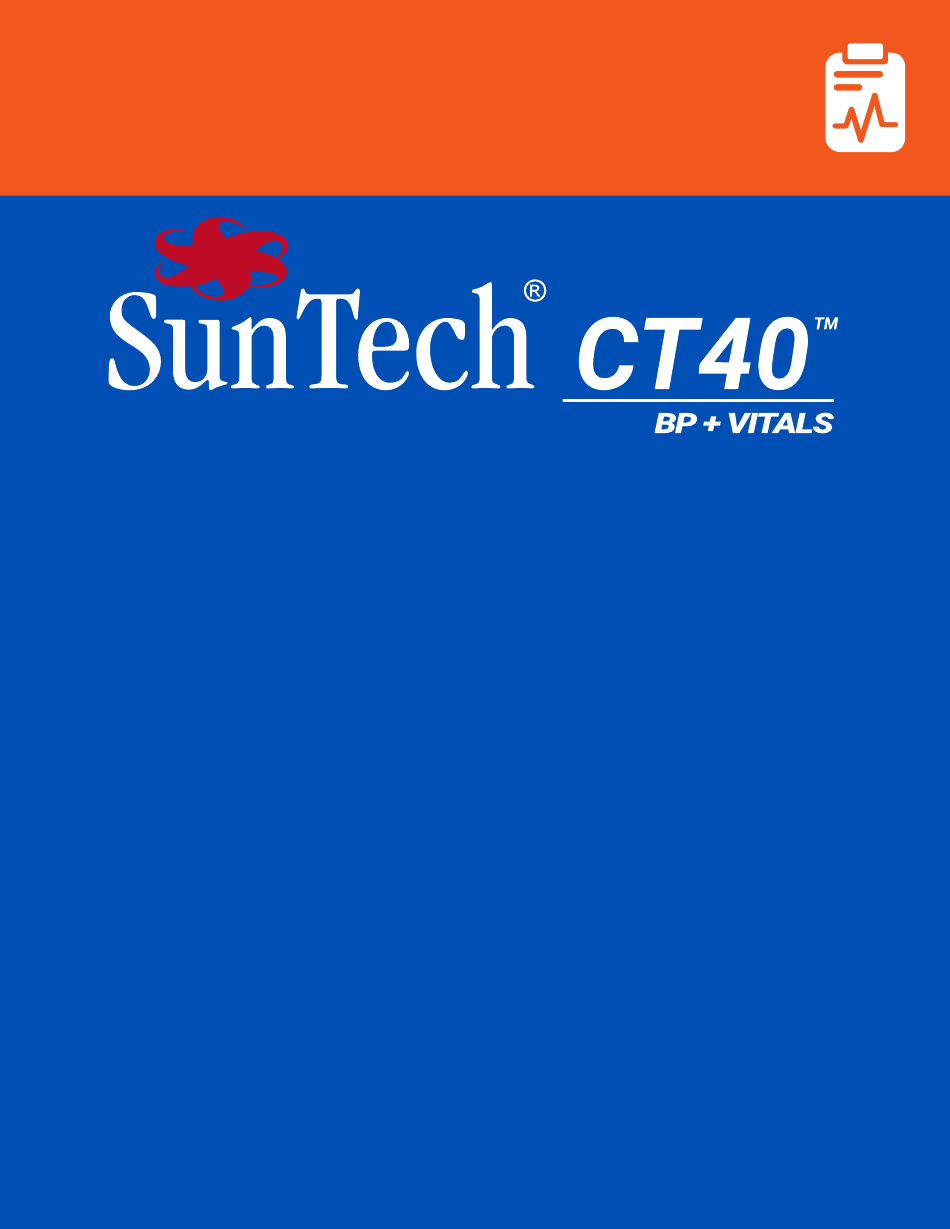

  • Page 1 BP+Vitals Quick Reference Cards...
  • Page 2 Buttons and Knob Functions Memory Button • Short Press: Save measurement(s). • Long Press (Hold 4 seconds): Access saved readings (See pages 7-10 for more information.) Toggle Mode Button • Short Press: Locate and choose between Automatic BP Mode, Averaging Mode and Auscultatory Sphyg (Manual) Mode.
  • Page 3 Buttons and Knob Functions (continued) Start/Stop Button • Press this button to start or stop a BP measurement. Home Button • Press this button to return to the main display. Selection Knob This round knob rotates clockwise and counterclock- wise and can be pressed to select different options on the device.
  • Page 4 Single Measurement BP Make sure the screen is set as shown here. • Ensure values are cleared from display as shown above. • Press Start/Stop Button • Inflate/deflate cycle begins automatically and continues until results are displayed. • A long beep will sound to indicate measurement is complete.
  • Page 5 Auscultatory SphygMode Make sure the screen is set as shown here. • Select max pressure. Rotate the Selection Knob and press. • Place stethoscope over artery. • Press Start/Stop Button to inflate cuff automatically. • Similar to an analog sphyg gauge, the display shows current cuff pressure.

  • Page 6: Averaging Mode

    Averaging Mode Make sure the screen is set as shown here. When selecting this mode, the averaging indicator will flash to let you decide how many readings they would like averaged. • Select number of readings by rotating the Selection Knob. •...
  • Page 7 • If the display turns to a blank screen/show, null values, and the Check Mark icon flashes 2 more times, this verifies the measurements are successfully stored to the device’s memory. Note: The CT40 does not autosave. You must save the measurement to the memory after each reading.
  • Page 8 Saving Readings With EMR Connectivity Technicians may have already connected the SunTech CT40 to your facility’s EMR system. If so, you can easily send measurements directly to the EMR. • With the patient’s current measurements displayed on the screen, press the Memory Button .
  • Page 9 Adult Mode to Pediatric Mode Adult BP Mode icon Pediatric BP Mode icon • Hold the Toggle Mode button down for 4 seconds until the adult or pediatric icons start blinking. • Turn the Selection Knob in either direction to select the desired icon.
  • Page 10 Accessing Saved Measurements • Press and hold the Memory Button on the front of the device for 4 seconds, then press the Selection Knob. Readings number and selection knob ring will flash. You will then be able to use the Selection Knob to scroll through prior readings.
  • Page 11 Deleting Saved Measurements To clear a single measurement from memory: • Press the Selection Knob while in Memory Mode. • The Memory Delete icon and the Check icon will flash, along with the Memory Identifier number. • Ensure you are viewing the measurement you wish to delete.
  • Page 12 Common Status Codes for Blood Pressure If the SunTech CT40 has a problem taking a measure- ment, you may see a code on the display screen. will flash when the blood pressure measurement is shown, while displaying the code. Common corrective actions are suggested below: Cuff/Patient Check: •...
  • Page 13 FILAC: • FILAC: Make sure that the patient has not had any warm beverages recently (oral). • Remove and then replace the probe in the well. Retry reading. • If does not work, power off and repower on the CT40.
  • Page 14 • Avoid fingers with nail polish or artificial nails. • Attempt a new measurement ensuring proper protocol in section 7 of the SunTech CT40 User Manual. • If does not work, power off and repower on the CT40. Retry reading...
  • Page 15 Printing Results with Optional Thermal Printer To print the information currently displayed on the CT40 screen, press the print button on the optional thermal printer Please ensure that the green LED is lit and unblinking (see below) before printing. Reset...
