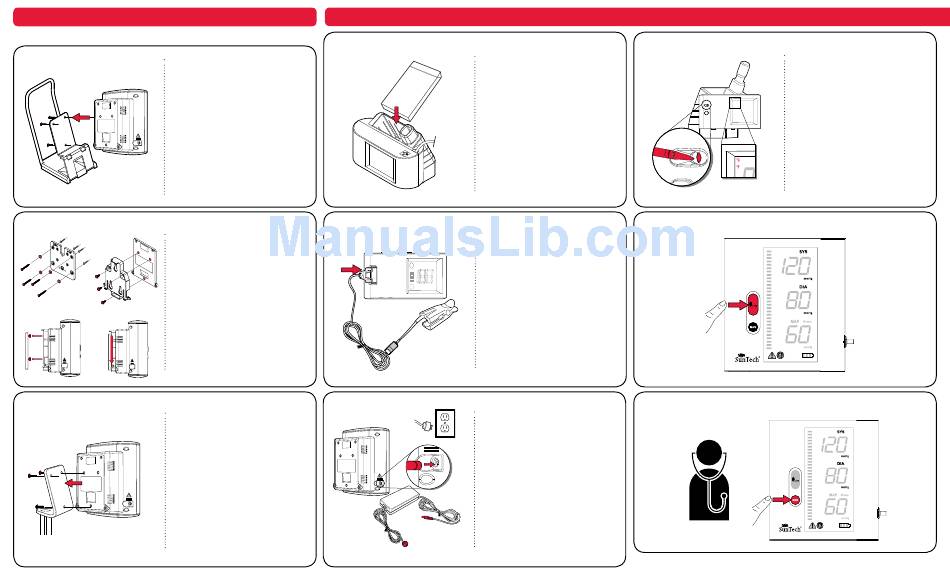

SunTech 247 Quick Start Manual

Mounting

All SunTech 247 device configurations can be mounted in the following ways:
On a Tabletop
Using the thumb screws, secure
the rear panel of the BP device
to the stand.
On a Wall
b.
a.
Attach the bracket to the wall
a.
using 4 wall screws.
Attach the wall bracket adapt-
b.
er to the rear panel of the BP de-
vice using the 3 screws.
Position the adapter onto the
c.
c.
rivets of the wall bracket and
slide the device down until it
locks into place.
On a Mobile Stand
Assemble the mobile stand
according to the manufacturer's
directions. Using the three
thumb screws, secure the rear
panel of the BP device to
the stand.
First Time Setup & Operation

Assembling the Temp Module for Use

1a.
1b.
Connecting the SpO Sensor
2
b. c.
a.
1c.

Connecting Power

a.
b.
c.
2

Changing the Unit of Temp Measurement

Place the probe cover box into
the holder.
3

Measuring Blood Pressure Automatically

Connect the sensor to the extension
a.
cable.
Flip the retention clip forward, then
b.
connect the cable to the device.
Finally, push the clip backward over
c.
the SpO2 connector to hold the con-
nector in the device.
4

Measuring Blood Pressure Manually

Must charge unit before first use.
a.
Connect the power supply to the
b.
BP module.
Connect the power supply to an
c.
AC main power source. The device
will turn on automatically. Before
using the device, fully charge the
battery for eight hours.
For SpO
Using the end of a paper clip or
similar tool, press the recessed but-
ton on the temp module. The icon
for the selected unit is displayed.
and temperature operation see the user manual located on the CD.
