SunTech CT40 Quick Reference Card

Hide thumbs Also See for CT40:

Advertisement

Quick Links

Download this manual
Quick Reference Cards

Advertisement

loading
Need help?

Need help?

Do you have a question about the CT40 and is the answer not in the manual?

Questions and answers

Related Manuals for SunTech CT40

Summary of Contents for SunTech CT40

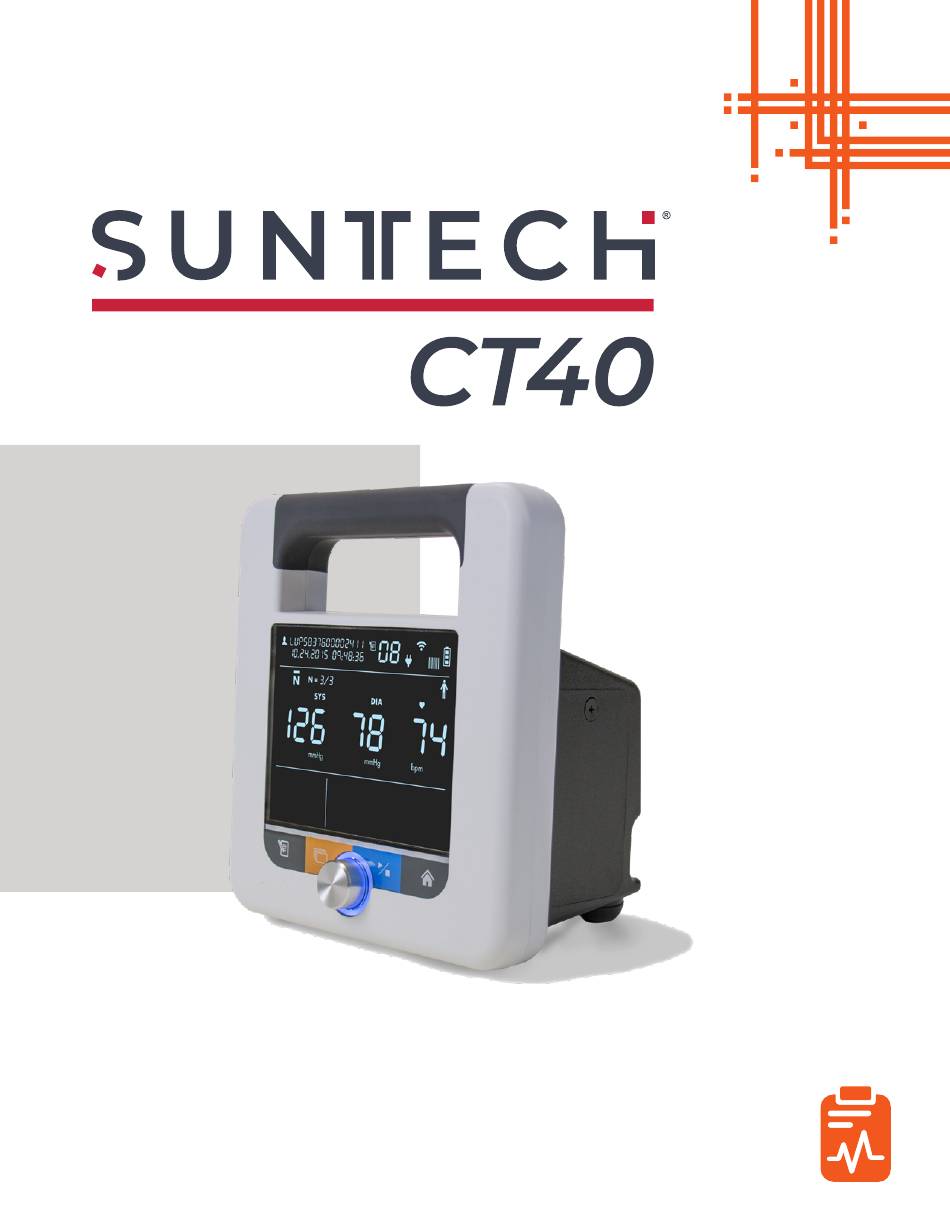

  • Page 1 Quick Reference Cards...
  • Page 2 Buttons and Knob Functions Memory Button • Short Press: Save measurement(s). • Long Press (Hold 4 seconds): Access saved readings (See pages 7-10 for more information.) Toggle Mode Button • Short Press: Locate and choose between Automatic BP Mode, Averaging Mode and Auscultatory Sphyg (Manual) Mode.
  • Page 3 Buttons and Knob Functions (continued) Start/Stop Button • Press this button to start or stop a BP measurement. Home Button • Press this button to return to the main display. Selection Knob This round knob rotates clockwise and counter- clockwise and can be pressed to select different op- tions on the device.
  • Page 4 Single Measurement BP Make sure the screen is set as shown here. • Ensure values are cleared from display as shown above. • Press Start/Stop Button • Inflate/deflate cycle begins automatically and continues until results are displayed. • A long beep will sound to indicate measurement is complete.
  • Page 5 Auscultatory SphygMode Make sure the screen is set as shown here. • Select max pressure. Rotate the Selection Knob and press. • Place stethoscope over artery. • Press Start/Stop Button to inflate cuff automatically. • Similar to an analog sphyg gauge, the display shows current cuff pressure.

  • Page 6: Averaging Mode

    Averaging Mode Make sure the screen is set as shown here. When selecting this mode, the averaging indicator will flash to let you decide how many readings they would like averaged. • Select number of readings by rotating the Selection Knob. •...
  • Page 7 Saving Readings Without EMR Connectivity The SunTech CT40 does not have to be connected to an EMR system to save measurements. You can easily save them to the device’s own memory. • With the patient’s current measurements displayed on the screen, press the Memory Button for less than 4 seconds.
  • Page 8 While the EMR and Check icons are flashing, turn the Selection Knob until the X Icon displayed. • Press the Selection Knob. • The measurements will be saved to the device’s memory only. Note: The CT40 does not autosave. You must save the measurement to the memory after each reading.
  • Page 9 Adult Mode to Pediatric Mode Adult BP Mode icon Pediatric BP Mode icon • Hold the Toggle Mode button down for 4 seconds until the adult or pediatric icons start blinking. • Turn the Selection Knob in either direction to select the desired icon.
  • Page 10 Accessing Saved Measurements • Press and hold the Memory Button on the front of the device for 4 seconds, then press the Selection Knob. Readings number and selection knob ring will flash. You will then be able to use the Selection Knob to scroll through prior readings.
  • Page 11 Deleting Saved Measurements To clear a single measurement from memory: • Press the Selection Knob while in Memory Mode. • The Memory Delete icon and the Check icon will flash, along with the Memory Identifier number. • Ensure you are viewing the measurement you wish to delete.
  • Page 12 Common Status Codes for Blood Pressure If the SunTech CT40 has a problem taking a mea- surement, you may see a code on the display screen. will flash when the blood pressure measure- ment is shown, while displaying the code.
  • Page 13 Common Status Codes for SpO If the SunTech CT40 has a problem taking a measurement, you may see a code on the dis- play screen. will flash when the SpO measurement is shown, while displaying the code. • Remove the sensor from the patient, and ensure proper sensor positioning.
  • Page 14 Lanarkshire, G1 3DX, UK UKRP@ia-uk.com 6827 AT Arnhem The Netherlands Switzerland Authorized Representative & Importer MedEnvoy Switzerland Gotthardstrasse 28 SunTech Medical (Shenzhen) Co., Ltd. 6302 Zug 105 HuanGuan South Road, Suite 15 2~3/F Switzerland DaHe Community Guanlan, European Importer LongHua District, Shenzhen...
