Electro-Harmonix THE ANALOGIZER Quick Start Manual

FCC COMPLIANCE
Note: This equipment has been tested and found to comply with the limits
for a Class B digital device, pursuant to part 15 of the FCC Rules. These
limits are designed to provide reasonable protection against harmful
interference in a residential installation. This equipment generates, uses and
can radiate radio frequency energy and, if not installed and used in
accordance with the instructions, may cause harmful interference to radio
communications. However, there is no guarantee that interference will not
occur in a particular installation. If this equipment does cause harmful
interference to radio or television reception, which can be determined by
turning the equipment off and on, the user is encouraged to try to correct
the interference by one or more of the following measures:
•
Reorient or relocate the receiving antenna.
•
Increase the separation between the equipment and receiver.
•
Connect the equipment into an outlet on a circuit different from that
to which the receiver is connected.
•
Consult the dealer or an experienced radio/TV technician for help.
Modifications not expressly approved by the manufacturer could void the
user's authority to operate the equipment under FCC rules.

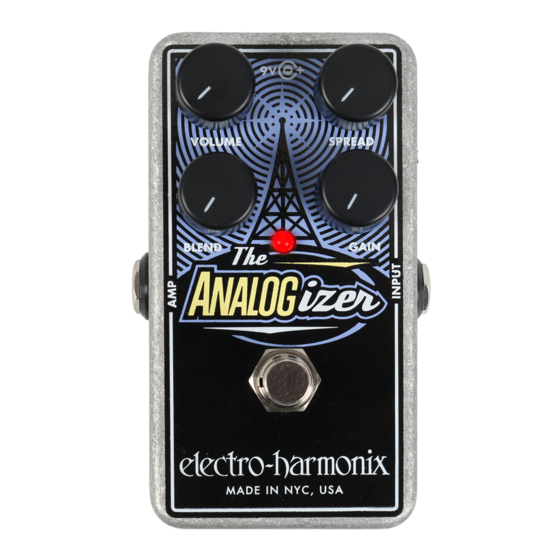

THE ANALOGIZER
Congratulations on your purchase of the Electro-Harmonix
ANALOGIZER...an effect for warming up the harshness of your digitally
processed guitar or for thickening up your already warm sound.
— POWER —
Your ANALOGIZER comes supplied with a 9 Volt battery. The ANALOGIZER can also be
powered from a 9VDC AC Adapter capable of delivering at least 20mA. The power supply
must have a barrel connector with a center negative plug. The optional 9V power supply
from Electro-Harmonix is 9.6DC-200BI (same as used by Boss
— OPERATING INSTRUCTIONS and CONTROLS —
Connect your guitar or the output of another effects pedal to the INPUT jack
of the ANALOGIZER. Connect the AMP jack to your amplifier or the input of
another effects pedal. The ANALOGIZER can be used in combination with
other effects devices. Experiment with any combination to develop your own
unique sound. The footswitch toggles between effect and true bypass
modes.
GAIN – Controls the input gain of your ANALOGIZER. The available gain
ranges from 0 dB to +"+26dB. As you turn the GAIN knob clockwise, the
GAIN increases.
SPREAD – Controls the delay time of the ANALOGIZER. The delay time
range is from 3.5 mS to 65 mS. As you turn the SPREAD knob clockwise, the
delay time increases. Adjusting the SPREAD knob in the lower half of its
range will produce tonal variations in the effect; adjustment in the upper half
of the SPREAD knob's range can be used to thicken up your sound.
BLEND – Varies the mix of direct and effected signals from 100% dry when
set to counter-clockwise to 100% wet at full clockwise.
VOLUME – Controls the output level of the ANALOGIZER. As you turn the
VOLUME knob clockwise the volume at the output jack increases. The
VOLUME control is after the BLEND knob in the circuit.
& Ibanez ).
® ®
