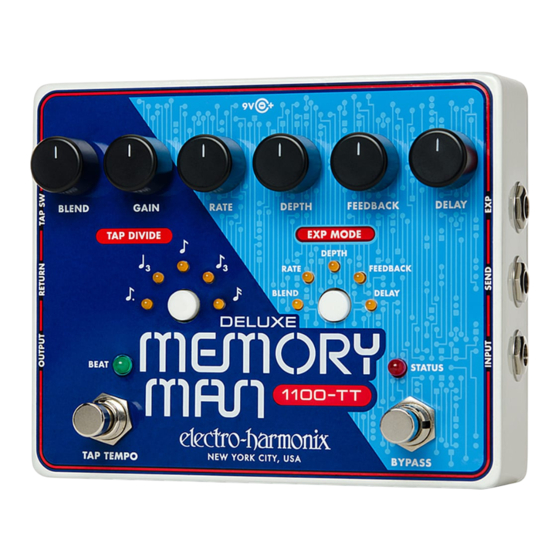

DELUXE MEMORY MAN 1100-TT
TAP TEMPO ANALOG DELAY with FX LOOP,
MODULATION and EXPRESSION PEDAL
Congratulations on your purchase of the Electro-Harmonix Deluxe
Memory Man 1100-TT (1100-TT). The 1100-TT is designed with high
quality bucket brigade ICs for an analog delay sound equal to the
original Deluxe Memory Man. In addition to Tap Tempo control of the
delay time, the 1100-TT also includes delay time modulation, an effects
loop in the feedback path of the delay block, an input gain control, tap
tempo divide and optional expression pedal control over five parameters:
Delay Time, Feedback, Modulation Depth, Rate and Blend. The 1100-TT
is true bypass.
WARNING: Your Deluxe Memory Man 1100-TT comes equipped with an
Electro-Harmonix 9.6DC-200BI power supply (same as used by Boss
Ibanez
: 9.6 Volts DC 200mA). The Deluxe Memory Man w/ Tap Tempo
®
requires 200mA at 9VDC with a center negative plug. The 1100-TT does not
take batteries. Using the wrong adapter may damage your unit and void the
warranty.
KNOBS
DELAY Knob – Sets the delay time from 52 ms to 1100 ms. As you turn the
DELAY knob clockwise, the delay time will increase. If you tap in the delay time,
the DELAY knob's setting will be ignored until you move it again. If you turn the
DELAY knob after tapping in a delay time, the DELAY knob's setting will
supersede the last tap tempo that was entered. Turning the DELAY knob, while
listening to your echoes, will bend the pitch of your notes. The DELAY knob can
also be used to set the maximum delay time for expression pedal control. N.B.:
the TAP DIVIDE button functions have no effect on the DELAY knob; pressing
TAP DIVIDE when the DELAY knob controls the delay time does not change the
delay time.
CONTROL
-CONTROLS and INDICATORS -
1
&
®
Advertisement
Table of Contents
Related Manuals for Electro-Harmonix DELUXE MEMORY MAN 1100-TT
Summary of Contents for Electro-Harmonix DELUXE MEMORY MAN 1100-TT
- Page 1 Delay Time, Feedback, Modulation Depth, Rate and Blend. The 1100-TT is true bypass. -CONTROLS and INDICATORS - WARNING: Your Deluxe Memory Man 1100-TT comes equipped with an Electro-Harmonix 9.6DC-200BI power supply (same as used by Boss & ®...
- Page 2 FEEDBACK Knob – Controls the amount of signal that is circulated from the output of the delay block to its input. Turning the FEEDBACK knob clockwise increases the number of echoes. Setting the FEEDBACK control to its maximum clockwise position will cause the 1100-TT to run-away, or self-oscillate. Alternatively setting the FEEDBACK knob to its minimum position will yield just one echo or repeat for each of your notes.
- Page 3 disabled while it remains plugged into the 1100-TT. The setting for the EXP. MODE is saved and recalled when power cycling. TAP Footswitch – The TAP FSW is used to tap in the delay time. Stomp on the TAP FSW two times and the delay time will jump to the time between taps (if all the TAP DIVIDE LEDs are off).
- Page 4 dotted eighth note, quarter note triplet, eighth note, eighth note triplet and sixteenth note. The sixth mode is quarter note or OFF, where the tap tempo is not divided down and the delay time is set to your actual tap time. No LEDs are lit when Tap Divide is set to quarter note/OFF.
- Page 5 1100-TT’s delay block. The input impedance presented at the RETURN jack is 2 M. EFFECTS LOOP – The Deluxe Memory Man 1100-TT has an effects loop feature which allows other effects to be inserted into the feedback loop of the delay block, before the bucket brigade chips.
- Page 6 EX-P, Moog EP-2, Roland EV-5 or Boss FV-500L. You may also connect a control voltage on TS plug to this jack. The Control Voltage range must be 0 V to 5 V. EXPRESSION PEDAL CONTROL – The Deluxe Memory Man 1100-TT allows external control over five of its parameters: BLEND, modulation RATE, modulation DEPTH, FEEDBACK and DELAY time.
- Page 7 These external switch connections work in parallel with their associated buttons on the 1100-TT. If either of the buttons have been enabled for external use, a TRS plug must be inserted into the TAP SW jack. In this circumstance, if a TS plug is inserted into the TAP SW jack it will be equivalent to holding down whichever button has been enabled for external use, without the ability to release the button.
- Page 8 This applies only to original purchasers who have bought their product from an authorized Electro-Harmonix retailer. Repaired or replaced units will then be warranted for the unexpired portion of the original warranty term.
