Congratulations on your purchase of the Andy Summers Walking
On The Moon Flanger/Filter Matrix! Over the past six decades,
Andy Summers has relied on flanger effects to define his signature
sound palate, enabling him to create the lush and shimmering
guitar tones that made Andy Summers famous all over the world
and especially beloved by guitar players.

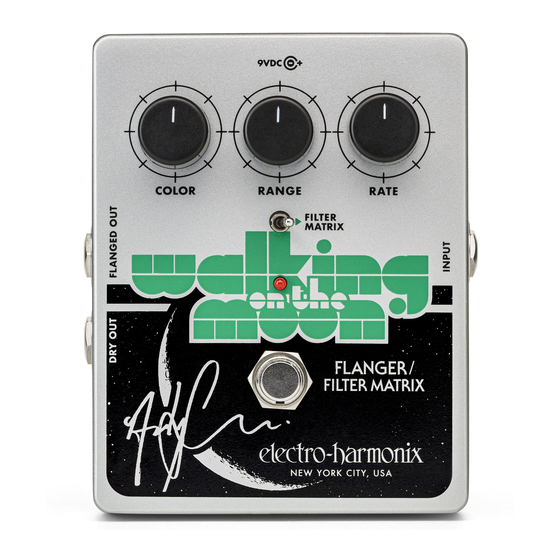

Connect your guitar to the INPUT jack of the Walking On The Moon (WOTM)
and the FLANGED OUT jack to your amp's input. Plug in the included power
supply and insert its output plug into the WOTM's power jack. Press the
footswitch to ensure the red LED is lit, the WOTM is now ready to play.
COLOR: 12 o'clock
Voltage: 9VDC
This device comes equipped with an Electro-Harmonix 9.6DC-200 power supply. It requires 40mA at 9VDC
with a center negative plug. Use of the wrong adapter or a plug with the wrong polarity may damage the
device and void the warranty. Do not exceed 10.5VDC on the power plug. Power supplies rated for less
than 50mA will cause the device to act unreliably. The Walking On The Moon also accepts 9V batteries,
we recommend alkaline.
Operating Instructions
To get started, try the following setting:
RANGE: 9 o'clock
POWER SUPPY REQUIREMENTS:
Current: 40mA
RATE: 9 o'clock
Polarity: Center-Negative
Advertisement
Table of Contents
Related Manuals for Electro-Harmonix Andy Summers Walking On The Moon
Summary of Contents for Electro-Harmonix Andy Summers Walking On The Moon
- Page 1 Current: 40mA Polarity: Center-Negative This device comes equipped with an Electro-Harmonix 9.6DC-200 power supply. It requires 40mA at 9VDC with a center negative plug. Use of the wrong adapter or a plug with the wrong polarity may damage the device and void the warranty. Do not exceed 10.5VDC on the power plug. Power supplies rated for less than 50mA will cause the device to act unreliably.
- Page 2 Controls and Connections 1. COLOR Knob sets the intensity of the flanger effect. As you turn COLOR clockwise, the effect becomes more pronounced, producing that classic whoosh effect flangers are famous for. Your WOTM has been set at the factory for maximum color capacity. Turning COLOR up to maximum could cause self-oscillation to occur.
- Page 3 3. RATE Knob controls the speed of flanger modulation. As you turn RATE clockwise, the flanger’s speed increases. Higher settings of RATE give the effect a sound like vibrato. 4. FILTER MATRIX Switch when this switch is set to the right position, labeled FILTER MATRIX, the modulation waveform is disconnected from the flanger circuit, freezing the flanger and creating a matrix of filters.
- Page 4 WARRANTY INFORMATION Please register online at www.ehx.com/product-registration or complete and re- turn the enclosed warranty card within 10 days of purchase. Electro-Harmonix will repair or replace, at its discretion, a product that fails to operate due to defects in materials or workmanship for a period of one year from date of purchase. This applies only to original purchasers who have bought their product from an autho- rized Electro-Harmonix retailer.
