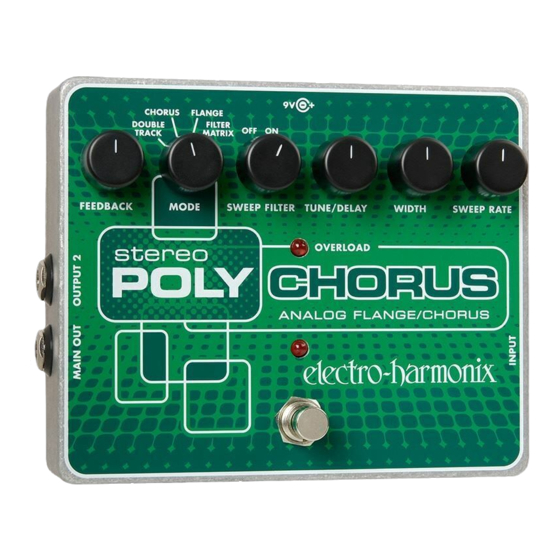

STEREO POLYCHORUS XO
ANALOG FLANGE/CHORUS
Congratulations on your purchase of the multi-purpose Stereo Polychorus. Carefully reading
these instructions will ensure full use of the tremendous variety of superb effects, which have
been engineered into this state-of-the-art device.
WARNING: Your Stereo Polychorus XO comes equipped with an Electro-Harmonix
9.6DC-200BI power supply (same as used by Boss
The Stereo Polychorus XO requires 110 mA at 9VDC with a center negative plug.
The Stereo Polychorus does not take batteries. Using the wrong adapter may
damage your unit and void the warranty.
The STEREO POLYCHORUS's four switch-selectable modes are:
FILTER MATRIX- A comb filter, which creates "chime" effects. In this mode you can sweep
the TUNE knob manually for "custom" flanging.
FLANGE – A sweeping comb filter which creates a variety of modulation effects and
whooshing sounds.
CHORUS- A sweeping echo for moving sounds such as "12 string guitar" and rotating speaker
effects.
DOUBLE TRACK- A short-delay echo for spacious "stage effects".
Plug the supplied AC adapter supplied into your Polychorus. Connect your instrument or
microphone to the INPUT jack and your amplifier to the MAIN OUT jack (for an amazing stereo
effect, connect a second amplifier to OUTPUT 2 simultaneously).
Press the BYPASS FOOTSWITCH to engage the effect. The status LED located above the
footswitch will light up. Press the footswitch again to switch back to true bypass mode, the
LED will shut off.
FILTER MATRIX- Select FILTER MATRIX mode. The TUNE control will shift the effect from a
high airy tone clockwise (CW) to a rich tone counterclockwise (CCW). While the RATE control
has no effect in this mode, turning the TUNE control will produce a manual or "custom" flange.
The FEEDBACK control determines how much of the processed signal is mixed in or "fed back"
to the input. In FILTER MATRIX, turning FEEDBACK CW will "sharpen" or increase the intensity
of the effect. CAUTION: In the extreme CW position the FEEDBACK control may cause
oscillation, a squealing or roaring sound. This is normal, and may be stopped by backing off
the FEEDBACK control.
FLANGE - Turn the MODE switch to the FLANGE position. The RATE control determines how
fast the comb filter sweeps up and down through its pitch range. Turned fully CW, the
frequency is about ten cycles per second. Turned fully CCW, the sweep is slow, about one
cycle every ten seconds. The pitch range of the sweep is set by the combined action of the
& Ibanez : 9.6 VDC/200 mA).
® ®
WIDTH and TUNE knobs: The TUNE control sets the center frequency, and the WIDTH control
determines how far the sweep goes. Maximum TUNE range is obtained by setting the WIDTH
knob fully CW. The FEEDBACK knob also operates as in FILTER MATRIX.
CHORUS - When CHORUS mode is selected, the FEEDBACK knob determines the number of
echoes: CCW for a single repeat, CW for more. The TUNE control will increase the delay time
of the echo as it is turned CW. The WIDTH control maximizes the delay range of the TUNE
control in its CW position, and emphasizes the modulating character of the CHORUS effect as it
is turned more CW. The RATE control operates as in FLANGE.
DOUBLE TRACK – In this mode, all controls operate as in CHORUS mode, except that this is
purely an echo effect and the RATE control is disengaged.
SWEEP FILTER – When set to ON, gives a smoother well rounded sound with a "liquid"
sensation, if you set your unit to a very slow flange effect it is recommended to turn this off.
MAIN OUT & OUTPUT 2 – MAIN OUT is for standard effect usage. For a total spacious stereo
effect, connect OUTPUT 2 to a second amplifier or a second channel on the same amplifier.
9V PWR JACK – Connect the output plug of the supplied AC Adapter into the 9V power jack
at the top of the Stereo Polychorus. The Stereo Polychorus draws 110 mA of current from 9
VDC. The polarity of the power jack is center negative. The maximum allowable power supply
voltage is 12.0 VDC.

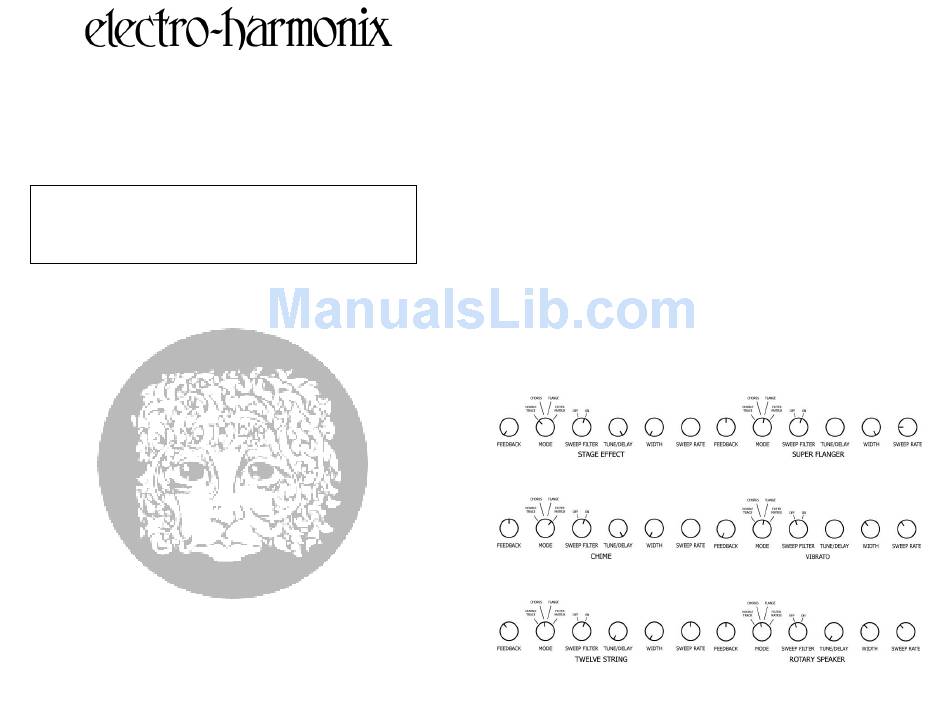

Use the following diagrams to quickly set up several of the basic dramatic effects of the
STEREO POLYCHORUS. When you have created these sounds, you will be ready to tailor your
own special settings of the STEREO POLYCHORUS's many possibilities.
