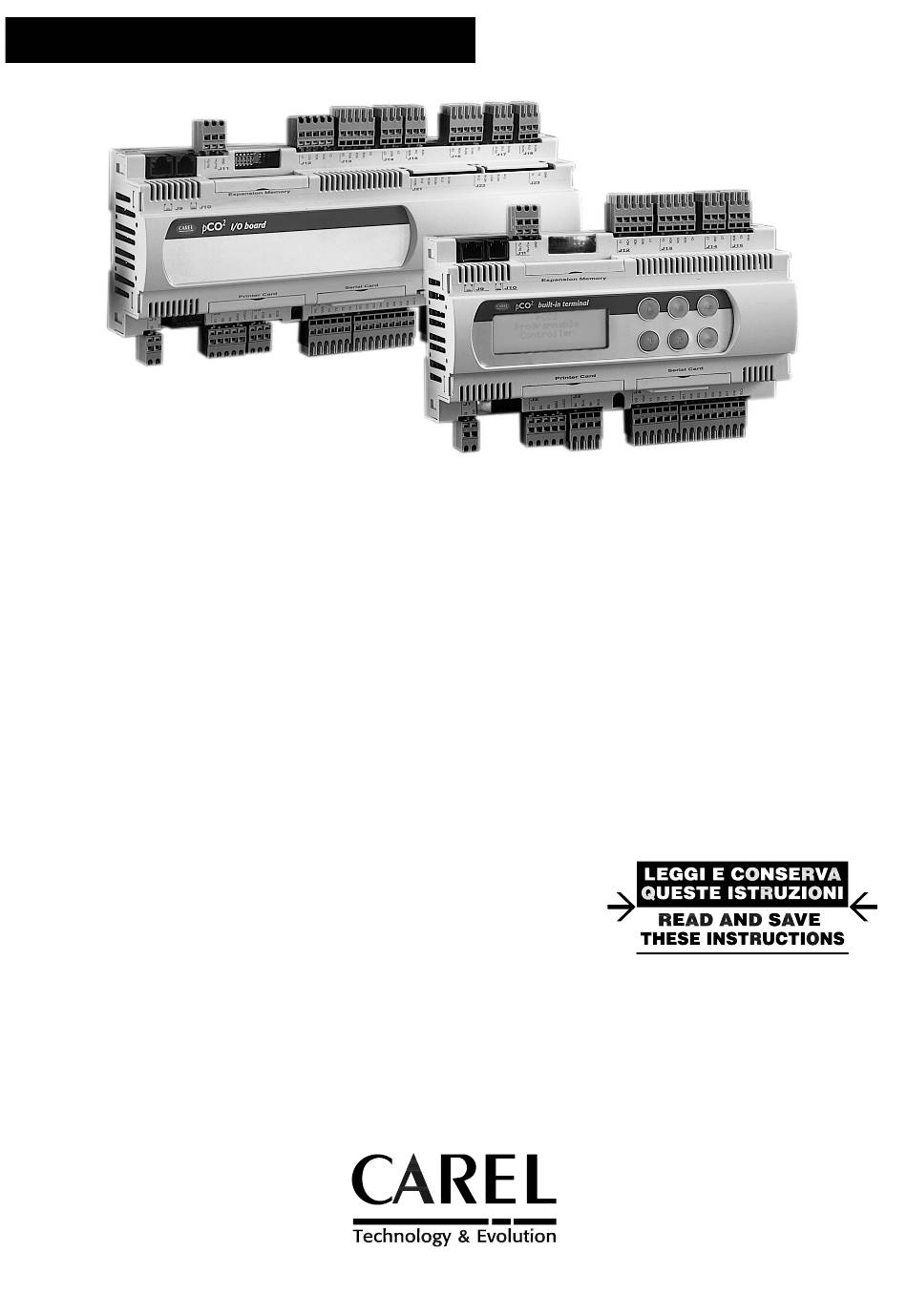

- Page 1 Application program for pCO¹ and pCO Standard Shelter Manual version 2.0 – April 01, 2003 FLSTDMMSHE Program code:...
- Page 3 We wish to save you time and money! We can assure you that the thorough reading of this manual will guarantee correct installation and safe use of the product described. IMPORTANT WARNINGS BEFORE INSTALLING OR HANDLING THE DEVICE PLEASE CAREFULLY READ AND FOLLOW THE INSTRUCTIONS DESCRIBED IN THIS MANUAL.
-
Page 5: Table Of Contents
ADVANCED LOG (pCO2)..................................17 LIST OF PARAMETERS AND DEFAULT VALUES ............................21 SCREENS ........................................... 25 15.1 LIST OF THE SCREENS..................................25 SUPERVISION........................................27 16.1 CAREL SUPERVISOR .................................... 27 16.2 BMS.......................................... 27 16.3 GSM PROTOCOL....................................27 16.4 GSM VARIABLE DATABASE ................................27 16.5... - Page 6 INITIAL INSTALLATION AND UPDATING THE SOFTWARE........................34 20.1 DOWNLOADING THE PROGRAM FROM A HARDWARE KEY...................... 34 20.2 DOWNLOADING THE PROGRAM FROM A COMPUTER ........................ 34 20.3 INSTALLING THE DEFAULT PARAMETERS............................ 34 20.4 SELECTING THE LANGUAGE ................................34...
-
Page 7: General
Standard Shelter 1 GENERAL SHELTER THE PROGRAM The “Standard Shelter” program can be used with CAREL pCO1 (xs-small-medium) or pCO2 boards (small-medium), and is used to manage direct expansion shelter units. The main functions of the program are: • management of the temperature and the humidity in technological environments •... -
Page 8: Setting Up The Plan Network
Standard Shelter SETTING UP THE pLAN NETWORK The following diagram shows the addresses of all the devices that can be controlled using the shelter application. To set the address of the various devices, refer to the chapter MANAGING THE CONNECTION BETWEEN BOARDS (pLAN) [driver valvola = valve driver] Cod. -
Page 9: List Of Configurations
Standard Shelter 2 LIST OF CONFIGURATIONS The program can manage shelters with pC01 (xs-small-medium) or pCO2 boards (small-medium). When started, the program recognises the type of board and the size, configuring the inputs and the outputs as a consequence. The following diagrams show the configuration of inputs and outputs for the possible combinations. -
Page 10: Temperature Control
Standard Shelter 3 TEMPERATURE CONTROL The heating and cooling devices are managed based on the temperature measured by the room probe, compared against the temperature set point. • Programmable parameters: temperature set point, proportional band (this may be different for heating and cooling), dead zone, freecooling start and end point as a percentage of the proportional band. -
Page 11: Other Temperature Functions
Standard Shelter OTHER TEMPERATURE FUNCTIONS The high and low temperature alarms generate a signal with an alarm screen, and have a modifiable delay. NB.: All of the values in the following graphs refer to the default values Set temperature 23.0°C COOL HEAT 22.5... -
Page 12: Other Humidity Functions
Standard Shelter OTHER HUMIDITY FUNCTIONS Humid. Set HUMIDIF. DEUHMID. 30.0% 80.0% Ambient 10.0% 10.0% humidity (%) Humid. Diff. Dehum. Diff. 20.0% 30.0% Low humidity alarm High humidity alarm The high and low humidity alarms generate a signal with an alarm screen. The delay can be modified. -
Page 13: Outlet Fan
Standard Shelter 5 OUTLET FAN The outlet fan is always on when the unit is ON. It can be managed using an On–Off or modulating output. There are two alarms relating to the fan, thermal cutout and air flow switch, which automatically switch the unit OFF; both the alarms require manual reset. 5.1.1 On-Off management The outlet fan will start, after a set delay (default 10 sec), when the shelter unit starts. -
Page 14: Number Of Probes And Condensing Coils
Standard Shelter Representation of the modulating output: 16.0 Condensing 13.0 0% 14.0 2.0 bar pressure (bar) Condensing differential Max. speed (100%) Min. speed (0%) The maximum and minimum speed of the condenser fans can be set; if the minimum speed set is greater than 0V, the fan will be able to operate at the minimum speed down to 1.0 bar below the condensing pressure set point before stopping altogether (see the dashed part in the graph above). -
Page 15: Compressors
Standard Shelter 7 COMPRESSORS The compressors are managed as simple ON-OFF loads (see TEMPERATURE CONTROL). The maximum number of compressors is 2. ROTATION The operation of the compressors can be rotated following FIFO logic (first in, first out). This helps balance the operating hours between the compressors. -
Page 16: Heaters
Standard Shelter 8 HEATERS The heaters are managed as simple ON-OFF loads. Normally up to 2 heaters with the same power can be managed, connected to the 2 outputs. “Binary management” allows the use of three heating steps with just two outputs. Consequently, there are two possible options: •... -
Page 17: Freecooling
Standard Shelter 9 FREECOOLING Energy savings can be achieved using outside air as a means of cooling the environment being air-conditioned. This is done using a damper to let in outside air that is colder than the air inside the environment. It must be established whether the temperature of the outside air is sufficiently below the ambient temperature so as to enable freecooling. -
Page 18: Manual Operation Of The Devices
Standard Shelter 10 MANUAL OPERATION OF THE DEVICES The devices connected to the outputs can be activated manually, bypassing the safety times, the compressor rotation and independently of the control functions and the values measured by the probes. The only support in manual mode involves the alarms, so as to ensure safety and protect the devices. -
Page 19: Alarms
Standard Shelter 12 ALARMS The alarms managed by the program are designed to protect the connected devices and provide signals if the control parameters are outside of the range of normal values or if there are faults on the board. The alarms may derive from the alarm digital inputs, from the probes or from the board. -
Page 20: Alarm Relay
Standard Shelter 12.1 ALARM RELAY Each alarm managed can be selected as Serious or Minor type 1 or 2 (not present on the pCO1xs), thus defining which relays are activated. The delay before closing can be set for all 3 relays. 12.2 SUMMARY ALARM TABLE CODE DESCRIPTION... -
Page 21: Alarm Log
Standard Shelter 13 ALARM LOG The program features two types of log: the BASIC log and the ADVANCED log. 13.1 BASIC LOG (pCO1 only if the clock card is installed – pCO2) The significant availability of memory space on the pC01-pCO2 boards means that a series of events can be saved. The BASIC log can be enabled by setting a parameter;... - Page 22 Standard Shelter 13.2.2 LIST OF PARAMETERS FOR THE ADVANCED LOG digital_input_7 DIGITAL DIGITAL/ digital_input_8 DIGITAL DESCRIPTION ANALOGUE digital_input_9 DIGITAL enable force standby for temperature DIGITAL enable analogue main fan management DIGITAL enable outlet limit DIGITAL enable clock DIGITAL ain 2 condensing pressure or temperature DIGITAL enable dehumidification DIGITAL ain 6 condensing pressure or temperature DIGITAL...
- Page 23 Standard Shelter LOP alarm delay ANALOGUE number of compressors ANALOGUE MOP alarm delay ANALOGUE number compressor for dehumidification ANALOGUE main fan off delay ANALOGUE number of condenser fans ANALOGUE main fan on delay ANALOGUE number of heaters ANALOGUE relay 4 delay serious alarm ANALOGUE new maintenance password ANALOGUE...
- Page 24 Standard Shelter type_al_10 ANALOGUE type_al_11 ANALOGUE type_al_12 ANALOGUE type_al_13 ANALOGUE type_al_14 ANALOGUE type_al_15 ANALOGUE type_al_16 ANALOGUE type_al_17 ANALOGUE type_al_18 ANALOGUE type_al_19 ANALOGUE type_al_2 ANALOGUE type_al_20 ANALOGUE type_al_21 ANALOGUE type_al_22 ANALOGUE type_al_23 ANALOGUE type_al_24 ANALOGUE type_al_25 ANALOGUE type_al_26 ANALOGUE type_al_27 ANALOGUE type_al_28 ANALOGUE type_al_29...
-
Page 25: List Of Parameters And Default Values
Standard Shelter 14 LIST OF PARAMETERS AND DEFAULT VALUES The table below lists the parameters in the program, together with the following information: screen code (the screen code is displayed at the top right) to assist the identification of the parameter, the default value, the minimum and maximum limits (range), and the unit of measure. To find a specific parameter on the display, proceed as follows: •... - Page 26 Board identification number for supervisory network 0-200 Board communication speed for supervisory network 1200 1200-19200 Baudrate Serial communication protocol Carel Carel,Modbus, Lon,RS232,Gsm Telephone numbers entered on analogue modem Enter telephone numbers on analogue/GSM modem 0…9,#,*,@,ˆ Number of rings for GSM modem...
- Page 27 0-99.9 ºC / ºF High ambient temperature offset to force unit in network 0-99.9 ºC / ºF → CAREL EXV DRIVERS Number of drivers connected Enable backup battery driver 1 No-Yes Enable backup battery driver No-Yes Type of valve circuit 1 10 (Carel) 0-11 (see 1.5)
- Page 28 Standard Shelter DESCRIPTION OF THE PARAMETER SCREEN DEFAULT RANGE VALUE MOP start delay 0-500 seconds MOP threshold 40.0 -50.0 - 99.9 ºC MOP threshold integration time 0-255 seconds High condensing temp. protection threshold 75.0 0-99.9 ºC Integration time for high condensing temp. threshold 0-255 seconds High suction temperature threshold...
-
Page 29: Screens
PSW P0 PSW Z0 " CONFIGURATION → " " " PSW A4 " " " " " " " " " " " " " " → PARAMETERS CAREL EXV DRIVER→ Cod. +030221471 – Rel. 2.0 – April 01, 2003... - Page 30 Standard Shelter → TIMES → INITIALISATION Cod. +030221471 – Rel. 2.0 – April 01, 2003...
-
Page 31: Supervision
GSM telephone the user can modify the parameters listed below (for more information, refer to the Carel GSM modem protocol manual, code +030220330): 16.4 GSM VARIABLE DATABASE... -
Page 32: Supervisor Variable Database
Standard Shelter 16.5 SUPERVISOR VARIABLE DATABASE A specific communication database is featured that includes all the more important program variables, from the values read by the probes to the parameters set on the screens. The following table describes the database, divided into digital, integer and analogue variables, indicating for each its description, address and type, that is, read-only (R) or modifiable from the supervisor (R/W). - Page 33 Standard Shelter DESCRIPTION SCR. ADD. TYPE DESCRIPTION SCR. ADD. TYPE Driver 2 alarm, probes faulty or disconnected AL42 Driver 2 EEPROM faulty or damaged AL43 Driver 2 valve motor faulty or damaged AL44 16.5.2 ANALOGUE VARIABLES DESCRIPTION SCR. ADD. TYPE DESCRIPTION SCR.
- Page 34 Standard Shelter DESCRIPTION SCR. ADD. TYPE DESCRIPTION SCR. ADD. TYPE Type of signal from outside temperature probe Type AL30 (0=serious;1=min.1;2=min.2) (0=NTC; 1=PT1000) pLAN connection class board 1 Type AL31 (0=serious;1=min.1;2=min.2) (0=present/rotation; 1=present/no rot.; 2=not present) pLAN connection class board 2 Type AL32 (0=serious;1=min.1;2=min.2) (0=present/rotation;...
-
Page 35: Electronic Expansion Valve
Alco EX5 – EX6 Alco EX7 Alco EX8 Sporlan SIX 0.5 - 11 Sporlan SIX 25 Sporlan SIX 50 - 250 Danfoss ETS 50 Danfoss ETS 100 Carel E2V**P Custom (other type of valve) Cod. +030221471 – Rel. 2.0 – April 01, 2003... -
Page 36: The User Terminal
Standard Shelter 18 THE USER TERMINAL 18.1 EXTERNAL DISPLAY Functions of the buttons on the external terminal Button Description when pressed in all loops except for Manuf. returns to main screen of the Menu branch MENU when pressed in the Manufacturer loop returns to manufacturer selection screen the Menu branch displays the status of the unit and the readings of the control probes goes to the first screen in the Maintenance loop MAINT. -
Page 37: Managing The Connection Between Boards (Plan)
(see figure below), and inside the electronic valve drivers. The operation must be performed when the devices are off. On the pCO1, the address is numeric and is assigned using an external terminal. For greater information refer to: - pCO1 manual, Carel code: +030221840 - pCO2 manual, Carel code: +030221825 19.1.1 SETTING THE ADDRESS ON THE PCO2, EXTERNAL TERMINALS AND VALVE DRIVERS The diagrams below show the addresses to be set on the pCO2 boards, on the external terminals and on the valve drivers. - Page 38 20.3 INSTALLING THE DEFAULT PARAMETERS The default parameters are the values assigned by CAREL to the main operating parameters of the application program. These values are assigned automatically when downloading the software the first time to a pCO2 or pCO1 board using Winload, or if the version of the software is upgraded.
- Page 40 Agency: CAREL S.p.A. Via dell’Industria, 11 - 35020 Brugine - Padova (Italy) Tel. (+39) 049.9716611 Fax (+39) 049.9716600 http://www.carel.com - e-mail: carel@carel.com...
Need help?
Do you have a question about the pCO1 Series and is the answer not in the manual?
Questions and answers

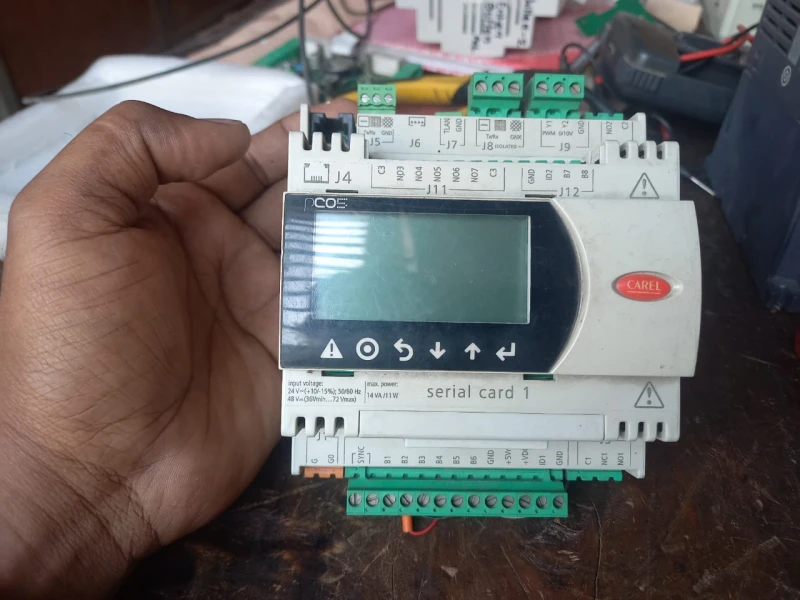

Hello dear sir, how are you,I hope you are well. Dear sir I want to download the program from my pco5 Compact (l/0 board) [Date:- 08-sep-2017 S.N-AOO111747 rev.2.322 code- PCOXOOOBAO] and upload the program to another similar pco5 compact (l/O board). Is there any software? With which I can download and upload Carel Pico5 Compact (l/0 board) e program.How can I do this? Please help me.
