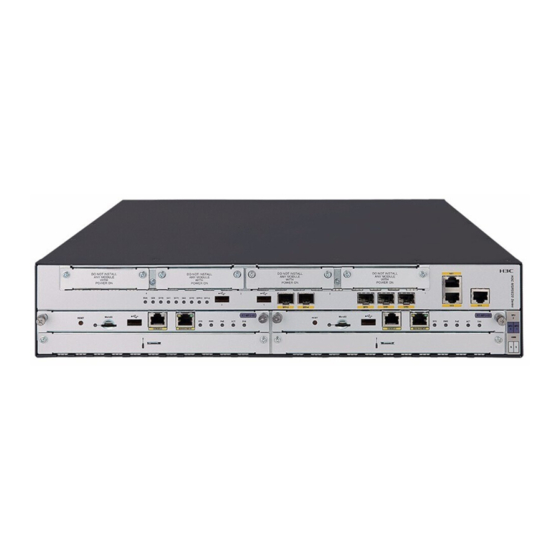

H3C MSR 56-60 Replacement Procedures

Hide thumbs Also See for MSR 56-60:
Table of Contents

Advertisement

Quick Links

Download this manual
Contents
Replacement procedure ················································································ 1
Replacing a power module································································································································· 1
Replacing a fan tray ··········································································································································· 1
Replacing an SPU and an SPE ························································································································· 2
Replacing an SPU ······································································································································ 2
Replacing an SPE ······································································································································ 3
Replacing an MPU ············································································································································· 4
Replacing an MPU from an MSR5620 ······································································································· 4
Replacing an MPU from an MSR 56-60/80 router ····················································································· 4
Replacing a VPM ··············································································································································· 5
Replacing a memory module ····························································································································· 7
Replacing an SSD drive ····································································································································· 8
Replacing an air filter ········································································································································· 9
Replacing an external CF card························································································································· 10
Replacing an external Micro SD card··············································································································· 11
Replacing a SIC ··············································································································································· 12
Replacing an HMIM·········································································································································· 13
Replacing a MIM ·············································································································································· 13
Replacing a DHMIM ········································································································································· 14
i

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the MSR 56-60 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for H3C MSR 56-60

Summary of Contents for H3C MSR 56-60

  • Page 1: Table Of Contents

    Replacing an SPE ······································································································································ 3 Replacing an MPU ············································································································································· 4 Replacing an MPU from an MSR5620 ······································································································· 4 Replacing an MPU from an MSR 56-60/80 router ····················································································· 4 Replacing a VPM ··············································································································································· 5 Replacing a memory module ····························································································································· 7 Replacing an SSD drive ····································································································································· 8 Replacing an air filter ·········································································································································...

  • Page 2: Replacement Procedure

    • Keep the tamper-proof seal on a mounting screw on the chassis cover intact, and if you want to open the chassis, contact H3C for permission. Otherwise, H3C shall not be liable for any consequence.

  • Page 3: Replacing An Spu And An Spe

    MSR5620 routers do not support SPU replacement. This section describes replacing an SPU-200 for an MSR 56-60 router. Follow the same procedure to replace SPUs for an MSR 56-80 router. To use an SPU-600-X1, a minimum of one SPE is required.

  • Page 4: Replacing An Spe

    Figure 3 Removing the SPU-200 Replacing an SPE The procedures are the same for replacing an SPE for the MSR 56-60 and MSR 56-80 routers. This section describes replacing an SPE-S3 for an MSR 56-60 router. To use an SPU-600-X1, a minimum of one SPE is required.

  • Page 5: Replacing An Mpu

    Install a new MPU. For the installation procedure, see "Installing the router." Figure 5 Removing the MPU-60 Replacing an MPU from an MSR 56-60/80 router CAUTION: • Before you remove an MPU-100 on an operating router, unmount the file systems and wait until the system outputs a message that the file systems have been unmounted.

  • Page 6: Replacing A Vpm

    The MSR 56-60 and MSR 56-80 routers support the MPU-100 and MPU-100-X1. The MPU replacement procedure is similar for the MSR 56-60 and MSR 56-80 routers. The following procedure describes replacing an MPU-100 on an MSR 56-60 router. To replace an MPU-100 on an MSR 56-60 router: Unmount the file systems and wait until the system outputs a message that the file systems have been unmounted.
  • Page 7 Figure 7 VPM Figure 8 SPU-200 structure (1) Front panel (2) VPM To replace a VPM: Pull the release latches away from the VPM at both ends so that the VPM springs up from the slot. Holding the non-conductive edge, remove the VPM. Keep the removed VPM for future use.

  • Page 8: Replacing A Memory Module

    MPU, see "Replacing an MPU." MSR5620 routers do not support memory module replacement. Only the MPU-100 available for the MSR 56-60 and MSR 56-80 routers supports memory module replacement. Figure 11 MPU-100 structure (1) Front panel (2) Memory module...

  • Page 9: Replacing An Ssd Drive

    Carefully and firmly press the memory module at both ends until you hear a click. This indicates the memory module is seated in the slot. Verify that the release latches have firmly locked the memory module in position. Figure 12 Removing a memory module Figure 13 Installing a memory module Replacing an SSD drive CAUTION:...

  • Page 10: Replacing An Air Filter

    Figure 14 Removing an SSD drive Replacing an air filter Use a Phillips screwdriver to completely loosen the captive screws of the air filter. Gently pull the air filter out along the slide rails. Figure 15 Removing an air filter Install a new air filter.

  • Page 11: Replacing An External Cf Card

    To install new slide rails, see "Installing the router." Figure 16 Removing slide rails Replacing an external CF card CAUTION: Before you remove an external CF card on an operating router, execute the umount cfb0: command. To replace a CF card: Execute the umount cfb0: command in user view to unmount the file system and wait until the system displays a message that the file system has been unmounted.

  • Page 12: Replacing An External Micro Sd Card

    Figure 17 Removing a CF card Replacing an external Micro SD card CAUTION: You can install a Micro SD card while the router is operating. To avoid Micro SD card damage and data loss, execute the umount sdb0 command before you remove a Micro SD card on an operating router.

  • Page 13: Replacing A Sic

    Figure 18 Removing the Micro SD card Replacing a SIC CAUTION: SIC interface modules are not hot swappable. Make sure the router is powered off before installing a SIC. To replace a SIC: Completely loosen the captive screws of the SIC. Gently pull the SIC out along the guide rails.

  • Page 14: Replacing An Hmim

    Replacing an HMIM CAUTION: Before you remove an HMIM on an operating router, execute the remove command. To replace an HMIM: Execute the remove command in user view and wait until the message "You can remove the card now!" is displayed. Skip this step if the router is powered off.

  • Page 15: Replacing A Dhmim

    Figure 21 Removing a MIM and the HMIM adapter Completely loosen the captive screws of the MIM, loosen and take off the screws securing the MIM to the HMIM adapter, and pull the MIM out of the HMIM adapter along the slide rails. Keep the removed MIM for future use.
  • Page 16 Figure 23 Removing a DHMIM Install a new DHMIM in the slot. For the installation procedure, see "Installing the router." If you are not to install a new DHMIM in the slot, perform the following tasks: a. Insert a slot divider into the slot along the guide rails in the middle. Figure 24 Installing a slot divider in the slot b.
  • Page 17 Figure 25 Installing HMIM filler panels on the slot...

This manual is also suitable for:

Msr 56-80Msr5620
