How true pro's measure
LAX 50 G
Operating instructions

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LAX 50 G and is the answer not in the manual?

Questions and answers

Related Manuals for Stabila LAX 50 G

Summary of Contents for Stabila LAX 50 G

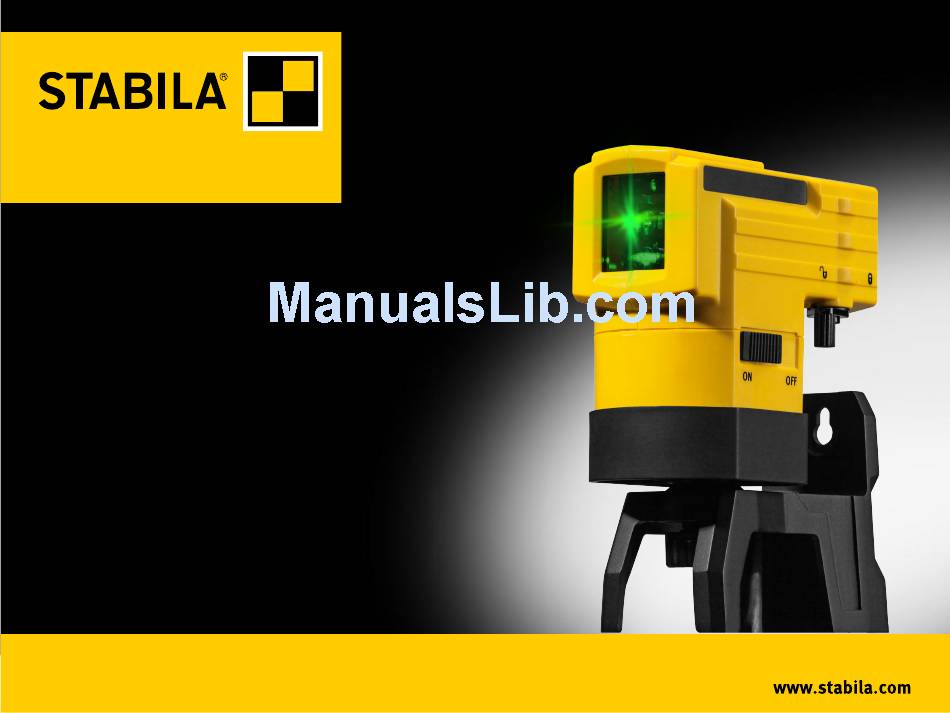

  • Page 1 How true pro’s measure LAX 50 G Operating instructions...

  • Page 2: Table Of Contents

    LAX 50 G Contents Section Page • 1. Intended use • 2. Safety information • 3. Before first commissioning • 4. Components of the unit • 5. Commissioning • 5.1 Inserting batteries/Battery replacement • 5.2 Switching the unit on • 6. Applications •...

  • Page 3: Intended Use

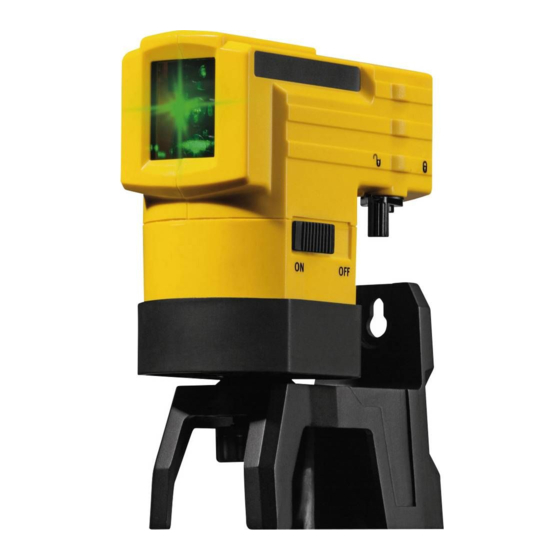

    Congratulations on the purchase of your STABILA measuring Carefully read the safety instructions and operating LASER tool. The STABILA LAX 50 G is an easy-to-operate cross instructions. line laser. It is self-levelling through a range of ± 4.5° and 510 - 530 nm enables levelling that is both fast and accurate.

  • Page 4: Components Of The Unit

    LAX 50 G 4. Components of the unit 1. Casing 2. Exit window for horizontal and vertical laser line 3. ON / OFF sliding switch with transport lock 4. Rough adjustment vial 5. Clamping jaws 6. Locking lever for clamping jaws 7.

  • Page 5: Commissioning

    Place the laser unit in the working position. Use the sliding switch to switch on the laser unit. Horizontal and vertical laser lines appear. The LAX 50 G levels itself automatically. Always use the centre of the laser line when marking and aligning! The laser lines flash if the laser unit is at too steep an angle.

  • Page 6: Applications

    Using with the foot You can use the foot to fix the LAX 50 G in a specific position. Thanks to the hanging hole and magnets, it is even possible to attach the foot to construction elements.

  • Page 7: Checking Accuracy

    7.1 Vertical check Checking the vertical laser line: Create a reference line, e.g. with a plumb line. Set up and align the LAX 50 G at distance Y in front of this reference line. Compare the laser line with the reference line.

  • Page 8: Horizontal Check

    2 parallel walls at least 5m / 16’5” apart (distance S) are required for the horizontal check. 1. Position the LAX 50 G as close as possible to wall A on a horizontal surface. 2. Align the LAX 50 G with wall A using the exit window.
  • Page 9 LAX 50 G 7.2 Horizontal check B Horizontal check – Inclination of the laser line Checking the laser line for inclination and to ensure the projection is exactly straight. 1. On the floor, mark 3 points 1–3 in an exact line at a distance of 5m / 16’5”...

  • Page 10: Care And Maintenance

    LAX 50 G 8. Care and maintenance This STABILA laser measuring unit is a precision optical instrument and should be handled with care. Window apertures, display windows: Dirty window glass impairs the optical function. Clean the unit using only a soft cloth and a little water or if necessary a mild detergent.
  • Page 11 STABILA Messgeräte STABILA Inc. Canada Gustav Ullrich GmbH + 49 63 46 309 - 0 332 Industrial Drive P.O. Box 13 40 / D-76851 Annweiler + 49 63 46 309 - 480 South Elgin , IL 60177 Landauer Str. 45 / D-76855 Annweiler info@stabila.de...
