Summary of Contents for Stabila LAX 50

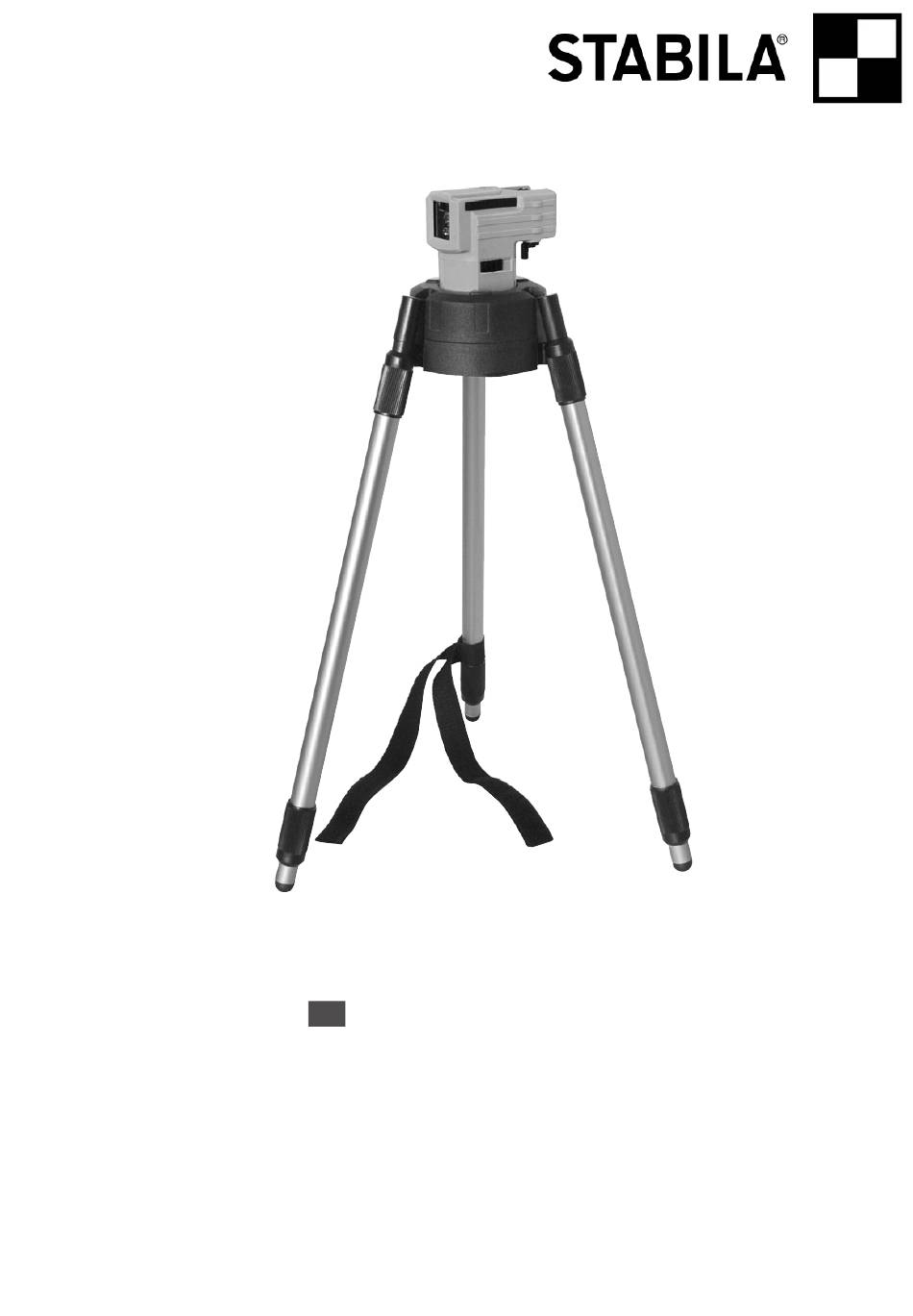

- Page 1 Laser LAX 50 Operating instructions...
- Page 2 2,75 m...
- Page 4 1 mm...
- Page 5 X = 5m 1,5 mm 1,5 mm > 5m > 16...
-
Page 6: Main Components
Operating instructions The STABILA-LAX-50 is an easy-to-use crossed line laser. It is self-levelling in the range ± 4.5° and enables levels to be determined quickly and accurately. The verti- cally and horizontally projected laser lines provide exact alignment / working . The different parts of this set enable a tripod or a long support pole to be constructed to suspend the instrument between the floor and the ceiling. -
Page 7: Main Applications
In Class II laser equipment, your eyes are protected from accidental, short- term exposure to the laser beam by the lid-closing reflex and/or the reflex reac- tion to turn one's head. This equipment Do not let the unit can therefore be used without additio- fall into children's nal protective measures. -
Page 8: Checking The Calibration
360° scale The vertical laser line indicates the angular displacement of the laser unit and the laser line on the 360° scale of the base unit. Tip: It’s necessary to center the unit by using the vial! Checking the calibration The LAX-50 crossed line laser is designed for use on construction sites and was per- fectly adjusted when it left our factory. - Page 9 Horizontal checking 1. Horizontal checking - Line level Two parallel wall surfaces at least 5 m apart are required for the horizontal check. Set the LAX-50 on a smooth level surface or on the tripod with the front facing the wall. Switch the unit on.
-
Page 10: Replacing The Batteries
+ the laser cannot level itself automatically Recycling programme for our EU customers: In accordance with the WEEE regulations, STABILA provides a disposal programme for electronic products at the end of their service life. For more details, please contact: +49 / 6346 / 309-0... -
Page 11: Care And Maintenance
Care and maintenance • Dirty lens glass on the beam emitter detracts from the quality of the beam. It should be cleaned with a soft cloth. • Clean the laser unit with a damp cloth. Do not spray or immerse the unit! Do not use solvents or thinners! Like any precision instrument, handle the LAX-50 crossed line laser carefully and cautiously.
