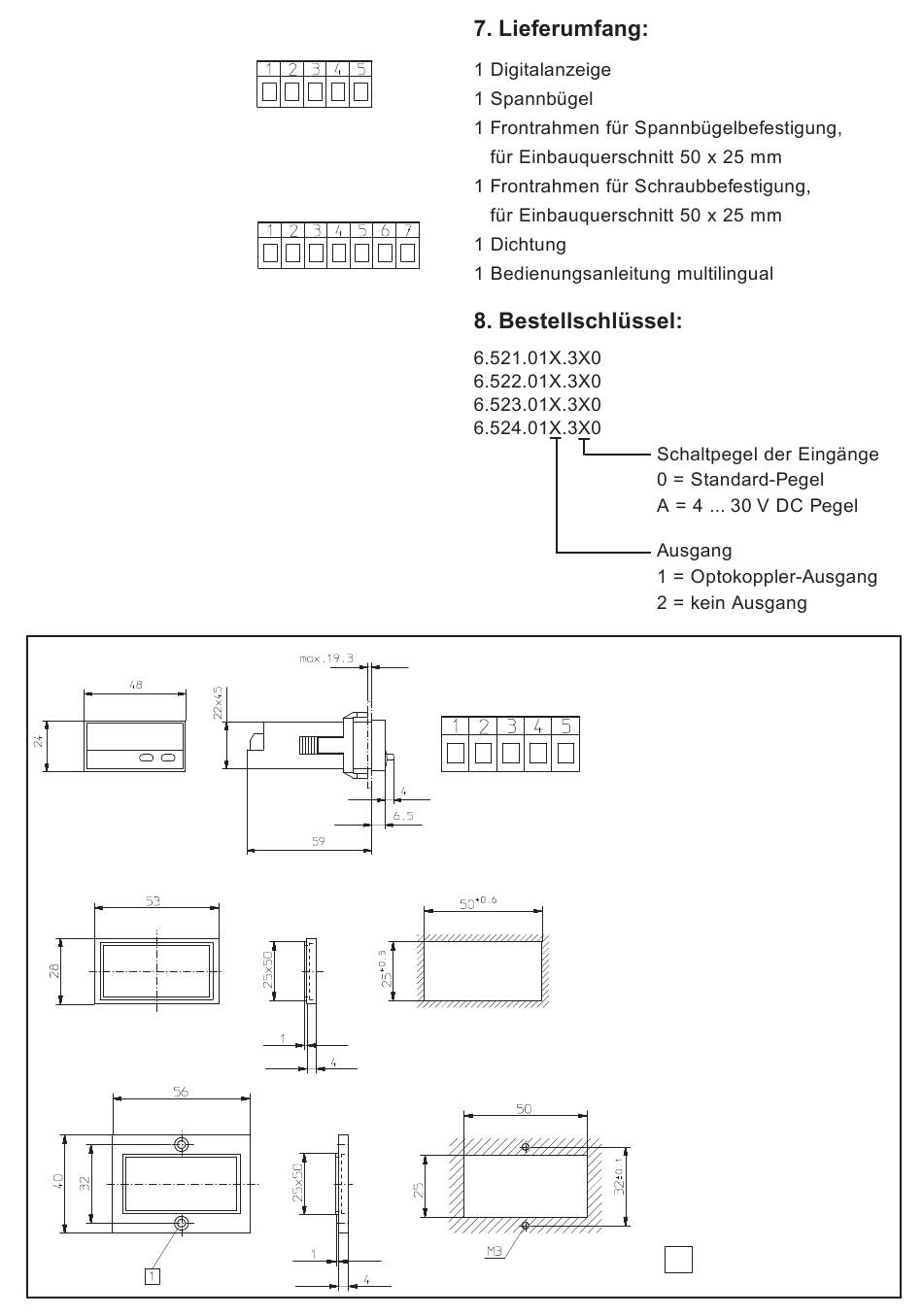

6. Anschlussbelegung
ohne Optokoppler
1 10 ... 30 V DC
2 0 V GND
3 INP A
4 INP B (Codix 522: n.c.)
5 SET/RESET (Codix 522: n.c.)
mit Optokoppler
1 10 ... 30 V DC
2 0 V GND
3 INP A
4 INP B (Codix 522: n.c.)
5 SET/RESET (Codix 522, n.c.)
6 Emitter
7 Collector
9. Abmessungen:
Schalttafelausschnitt:
+0,3
+0,6
22,2
x 45
mm
Einbaurahmen
8
1
Senkung Af3, DIN 74
