Kübler CODIX 520 Operating Instructions

Operating instructions

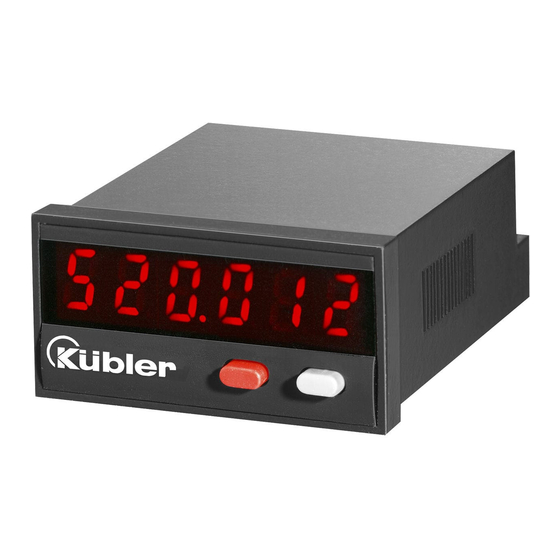

Electronic totaliser
CODIX 520
1. Description
• 6-digit adding counter with RESET function
• Red LED display, character height 8 mm
• Display range 0...999 999
• Leading zeros suppression
• Programming via two setting keys on the
front side
• During programming, the display guides the
user with text prompts
1.1 Safety instructions and warnings
Only use this display
– in a way according to its
!
intended purpose
– if its technical condition is
perfect
– adhering to the operating
instructions and the general
safety instructions.
1.2 General safety instructions
1. Before carrying out any installation or main-
tenance work, make sure that the power
supply of the digital display is switched off.
2. Only use this digital display in a way accord-
ing to its intended purpose:
If its technical condition is perfect. Adhering
to the operating instructions and the general
safety instructions.
3. Adhere to country or user specific regula-
tions.
4. The digital display is not intended for use
in areas with risks of explosion and in the
branches excluded by the standard EN
61010 Part 1.
5. The digital display should only operated if
it has been correctly mounted in a panel, in
accordance with the chapter "Main technical
features".
1.3 Use according to the intended purpose
The digital display may be used only as a
panel-mounted device. Applications of this prod-
uct may be found in industrial processes and
controls, in manufacturing lines for the metal,
wood, plastics, paper, glass, textile and other
processing industries.
Over-voltages at the terminals of the digital dis-
play must be kept within the limits in
Category II.
If the digital display is used to monitor machines
or processes in which, in case of a failure of
the device or an error made by the operator,
there might be risks of damaging the machine
or causing accidents to the operators, it is
your responsibility to take appropriate safety
measures.
2. Inputs
INP
Dynamic count input.
RESET
Dynamic RESET input. Linked in parallel to the
red RESET key. Sets the counter to zero.
3. Setting of the operating
parameters
a. Press both front side keys keys and switch
on the supply voltage or, if the supply volt-
age is already on, press both keys simulta-
neously during 5 s.

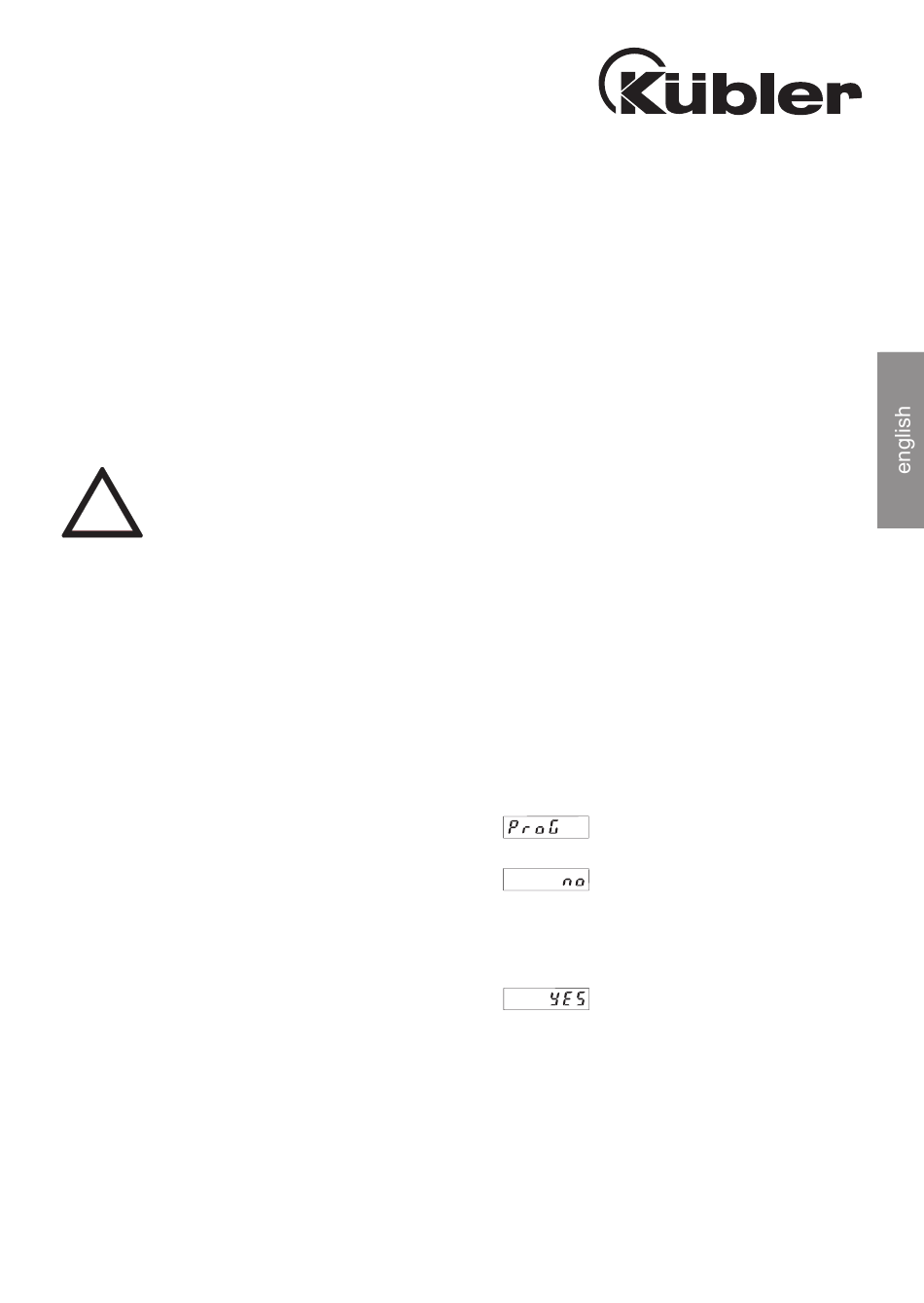

b. The display shows
c. After releasing the keys, the display shows
c1. Hold the left key pressed and press the
right key to leave the programming opera-
tion.
c2. Press the right key to switch to
d. Hold the left key pressed and press the
right key to switch to the first parameter.
e. After releasing the the right keys, the
display alternates between the menu title
and the current menu item setting. After
pressing down any key, only the menu item
setting is displayed.
Page 1
