SLIDEWHIZZER SWSL-03 Assembly Instructions Manual page 16

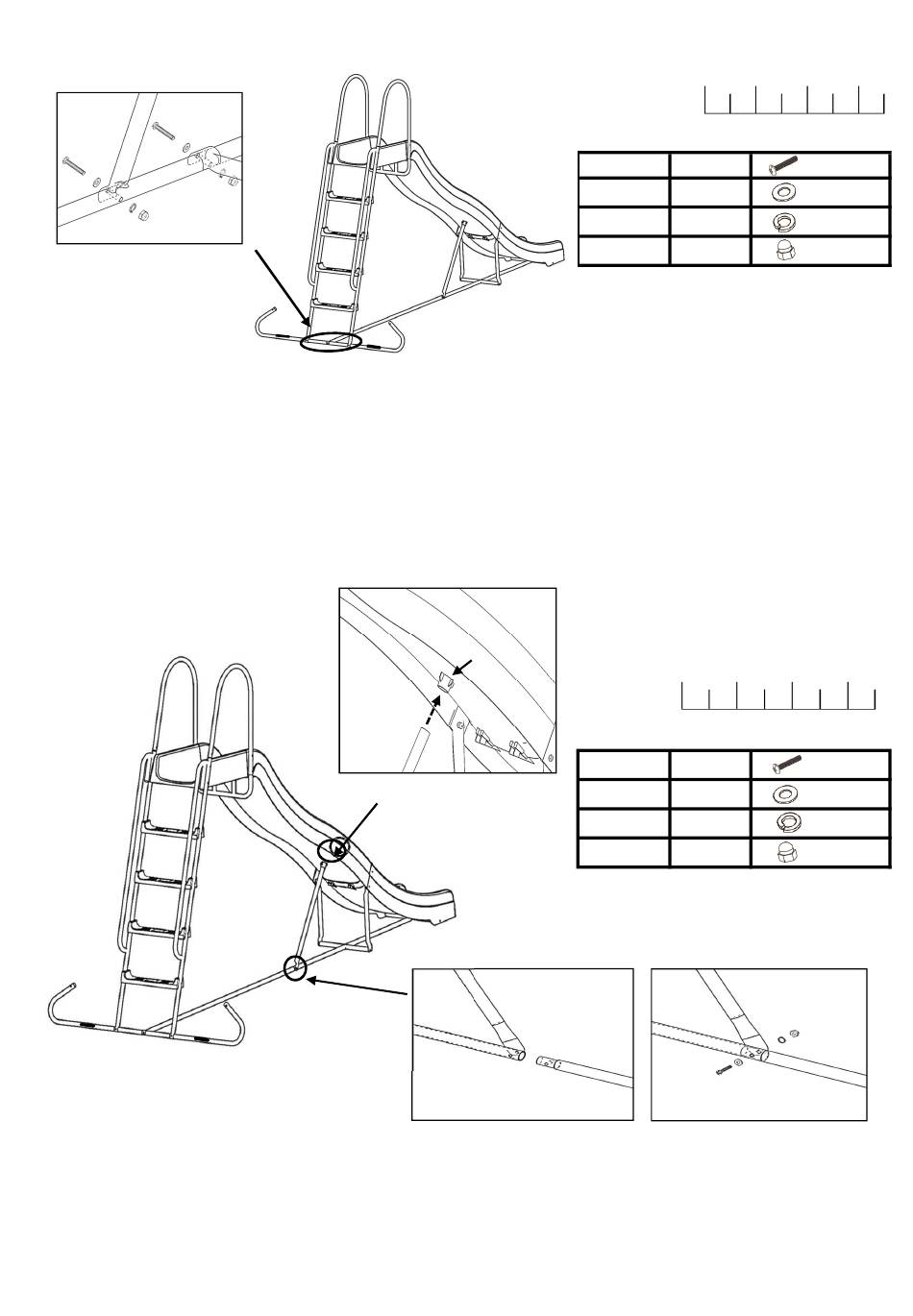

Step 9
R
C
F
C
P
F
G
H
* While one adult is
connecting ladder
stabilizer with ladder, the
other adult can assist by
holding the slide chute.
„Â Attach the Ladder stabilizer bar (P) to pre-assembled Main handrail (R) with bolt Cx1 + washer Fx1 +
spring washer Gx1 + domenut Hx1.
„Â Secure the Tie bar (N) to Ladder stablilizer bar (P) with bolt Cx1 + washer Fx1 + spring washer Gx1 +
domenut Hx1.
Step 10
„Â Slide the Cross tie bar (O) into the Tie bar (N) as figure 1 and place the Support bar for
middle slide chute (U) into rounded-pedestal on the back side of middle slide chute (L) as figure 2.
„Â Thread (O), (N) and (U) with bolt Cx1 + washer Fx1 + spring washer Gx1 + domenut Hx1 as figure 3.
N
R
R
G
H
J
figure 2
L
U
O
N
N
P
L
rounded-
pedestal
U
U
N
figure 1
6MM
C (M6x35) 3 x
F (M6) 3 x
G (M6) 3 x
H (M6) 3 x
6MM
35MM
C (M6x35) 1 x
F (M6) 1 x
G (M6) 1 x
H (M6) 1 x
U
N
O
C F
figure 3
page 16 of 20
35MM
H
G
O
