SLIDEWHIZZER SWSL-03 Assembly Instructions Manual page 15

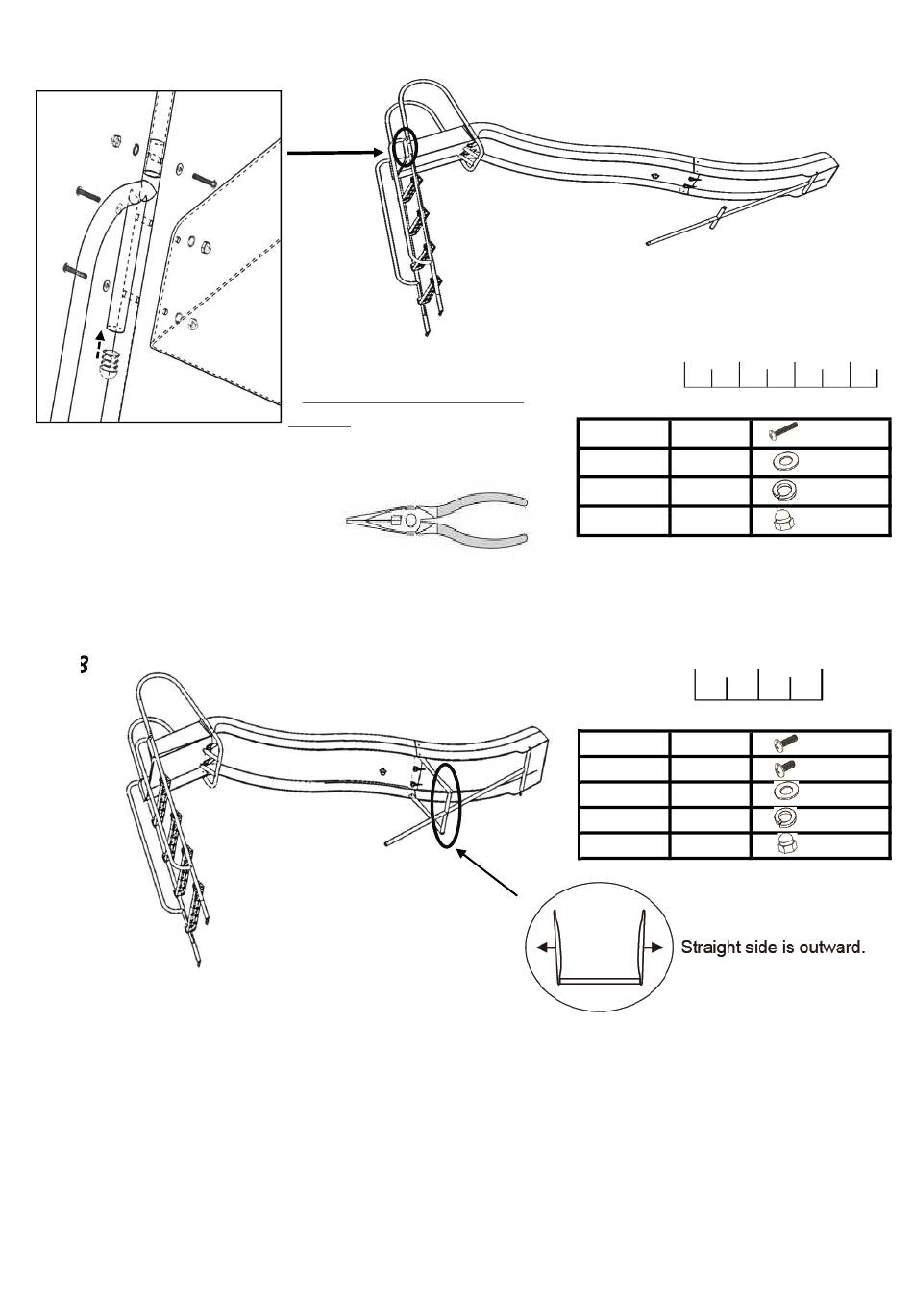

Step 7
S
H
G
F
C
F
G H
C
F
G H
R
Z
„Â Attach the Main handrail (R) with ladders (J) into the top handrail (S) with bolt Cx1 + washer Fx1 +
spring washer Gx1 + domenut Hx1.
Step 8
K
„Â Place straight side of the support bar (V) outward to the bottom hole of the middle slide chute (L)
and bottom slide chute (M).
„Â Secure the top of (V) to the bottom hole of (L) & (M) with bolt Dx1 + washer Fx1 + spring washer Gx1 +
domenut Hx1.
„Â Secure the bottom of (V) to the cross tie bar (O) with bolt Ex1.
figure 1
C
R
K
* Tools recommendation for
figure 1:
Using the long nose pilers to fix
the nut for the small area.
L
* While one adult is connecting the
support bar with slide chute, the
other adult can assist by holding
the slide chute.
S
K
L
C (M6x35)
F (M6)
G (M6)
H (M6)
D (M6x20)
E (M6x15)
M
F (M6)
G (M6)
H (M6)
V
M
6MM
35MM
6 x
6 x
6 x
6 x
6M
2 x
2 x
2 x
2 x
2 x
V
O
page 15 of 20
