SLIDEWHIZZER SWSL-03 Assembly Instructions Manual page 13

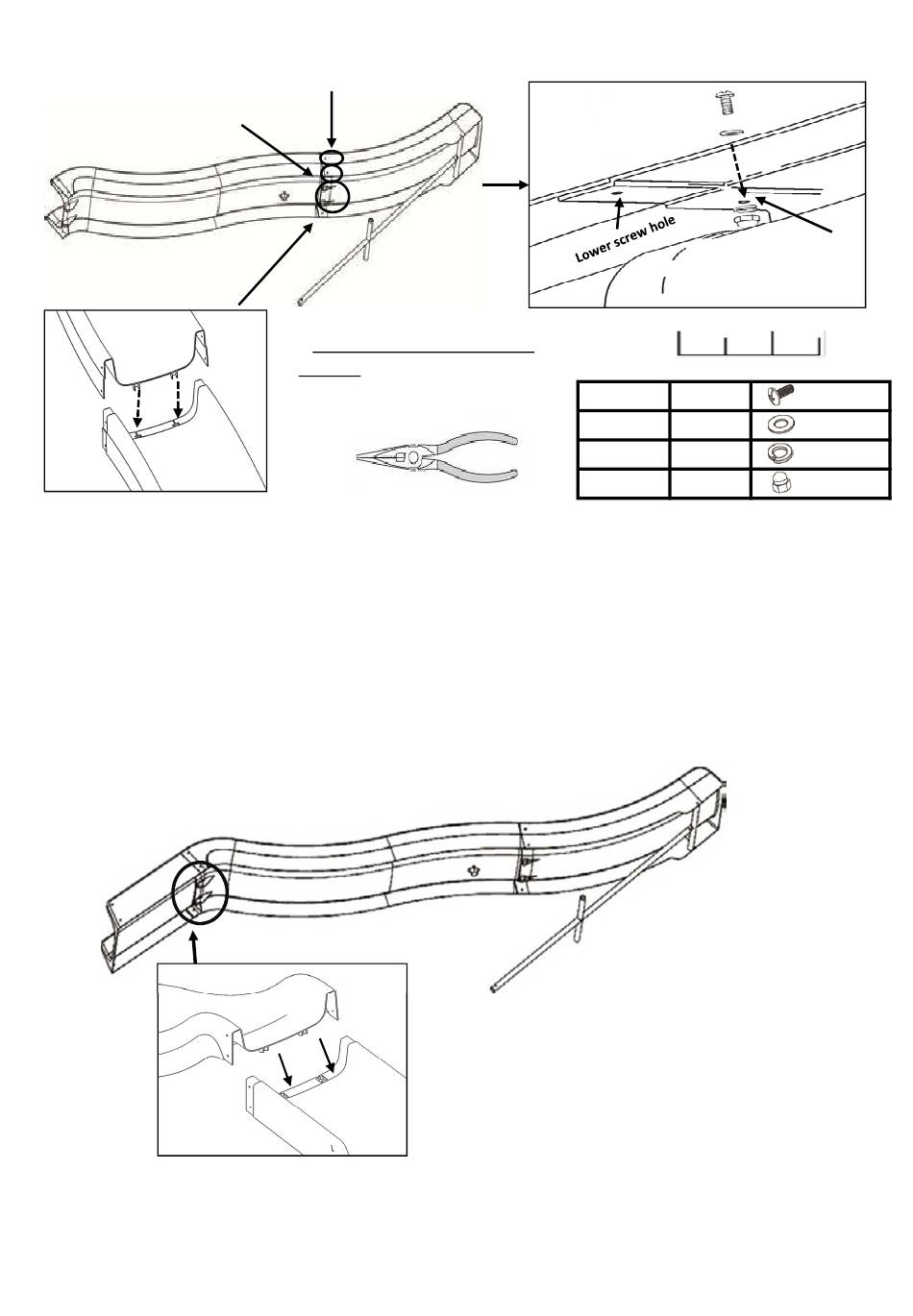

Step 3
Lower screw hole
L
L
M
„Â Connect the Middle slide chute (L) and Bottom wavy slide chute (M) by embedding tongue-and-groove
joint firmly, ensure the connection meet closely and without any gaps between the chutes.
„Â Thread the upper screw hole of Middle and Bottom slide chute with bolt Ex1 + washer Fx1 +
spring washer Gx1 + domenut Hx1.
„Â Leave the lower screw hole of Middle and Bottom slide chute unassembled.
Step 4
K
„Â Connect the Top slide chute (K) and Middle slide chute (L) by embedding tongue-and-groove joint firmly,
ensure the connection meet closely and without any gaps between the chutes.
Upper screw hole
* Tools recommendation for
figure 1:
Using the long nose pilers to fix
the nut for the small area.
L
K
L
figure 1
E
F
G
H
L
E (M6x15) 2 x
F (M6) 2 x
G (M6) 2 x
H (M6) 2 x
M
Upper screw hole
M
6M
15M
page 13 of 20
