SLIDEWHIZZER SWSL-03 Assembly Instructions Manual page 14

Step 5
figure 1
B F
B F
S
G H
M
Z
T
L

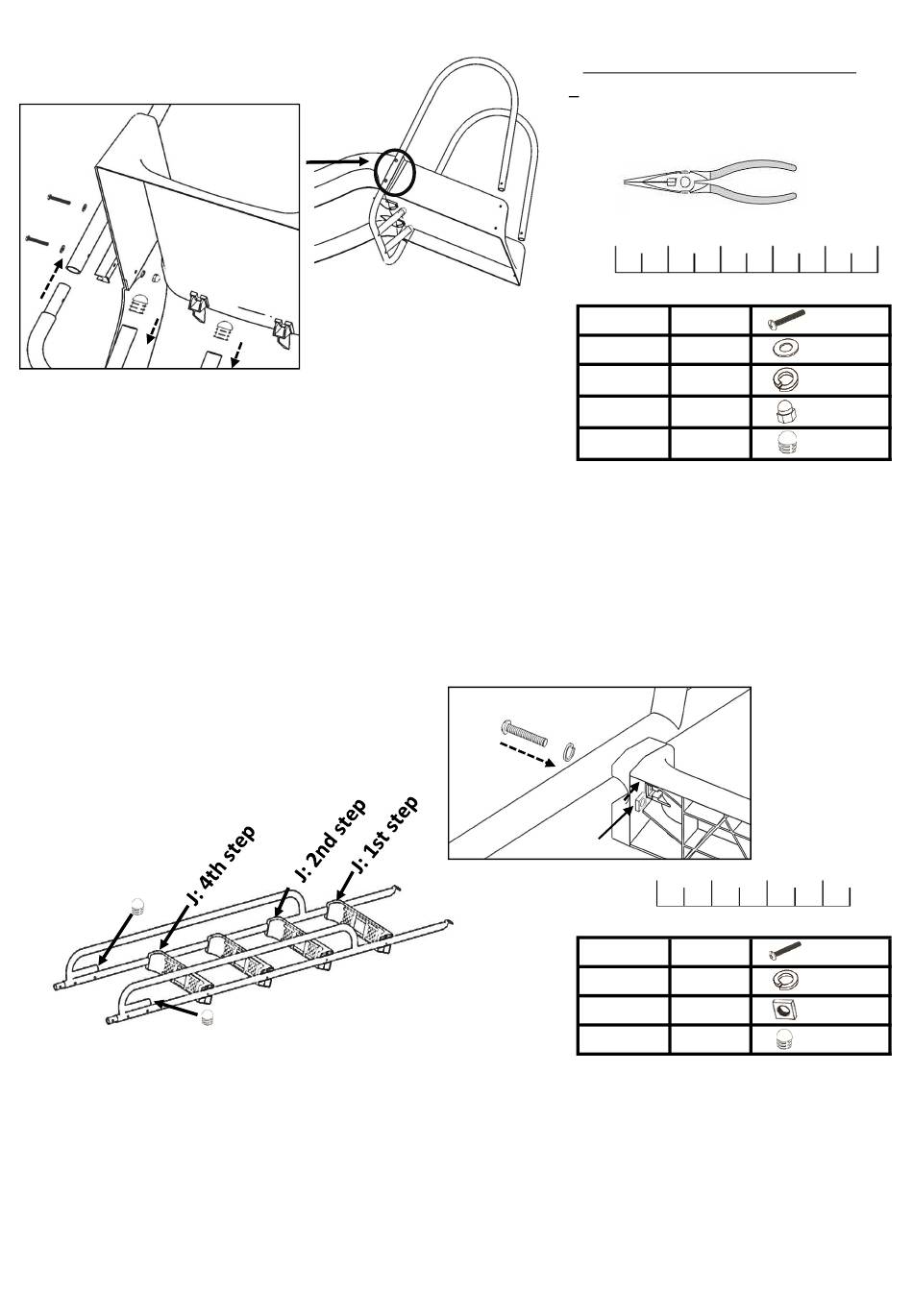

„Â Insert the Plastic end-cap (Z) into the Support-frame of top slide chute (T).
„Â Place the Plastic spacer (M1) between Top slide chute (K) and Top handrail (S).
Attach the Support-frame of top slide chute (T) to Top handrail tube (S) and fasten (T), (K), (S) and (M1)
4pcs together with bolt Bx1 + washer Fx1 + spring washer Gx1 + domenut Hx1.
Step 6
Z
R
R
Z
„Â Embed the 1st, 2nd and 4th Ladder step (J) to Main handrail (R) with bolt Cx1 + spring washer Gx1 +
square domenut Ix1 as figure 1 and leave the 3rd ladder step unassembled.
„Â Insert the Plastic end-cap (Z) into the end of short steel tube close to the 4th ladder step.
L
K
T
Z
* Tools recommendation for figure
S
1:
the long nose pilers to fix the nut for
the small area.
K
6MM
B (M6x50)
F (M6)
G (M6)
H (M6)
Z
figure 1
C
G
R
I
6MM
C (M6x35)
G (M6)
I (M6)
Z
Using
50MM
4 x
4 x
4 x
4 x
2 x
J
35MM
6 x
6 x
6 x
2 x
page 14 of 20
