SLIDEWHIZZER SWSL-03 Assembly Instructions Manual page 12

SLIDEWHIZZER 10FT SLIDE ASSEMBLY INSTRUCTION
Please note that slide assembly will be considerably easier with two adults.While one adult is connecting
and fastening the relevant pieces, the other can assist by supporting the slide chute and holding the
connecting pieces in position.

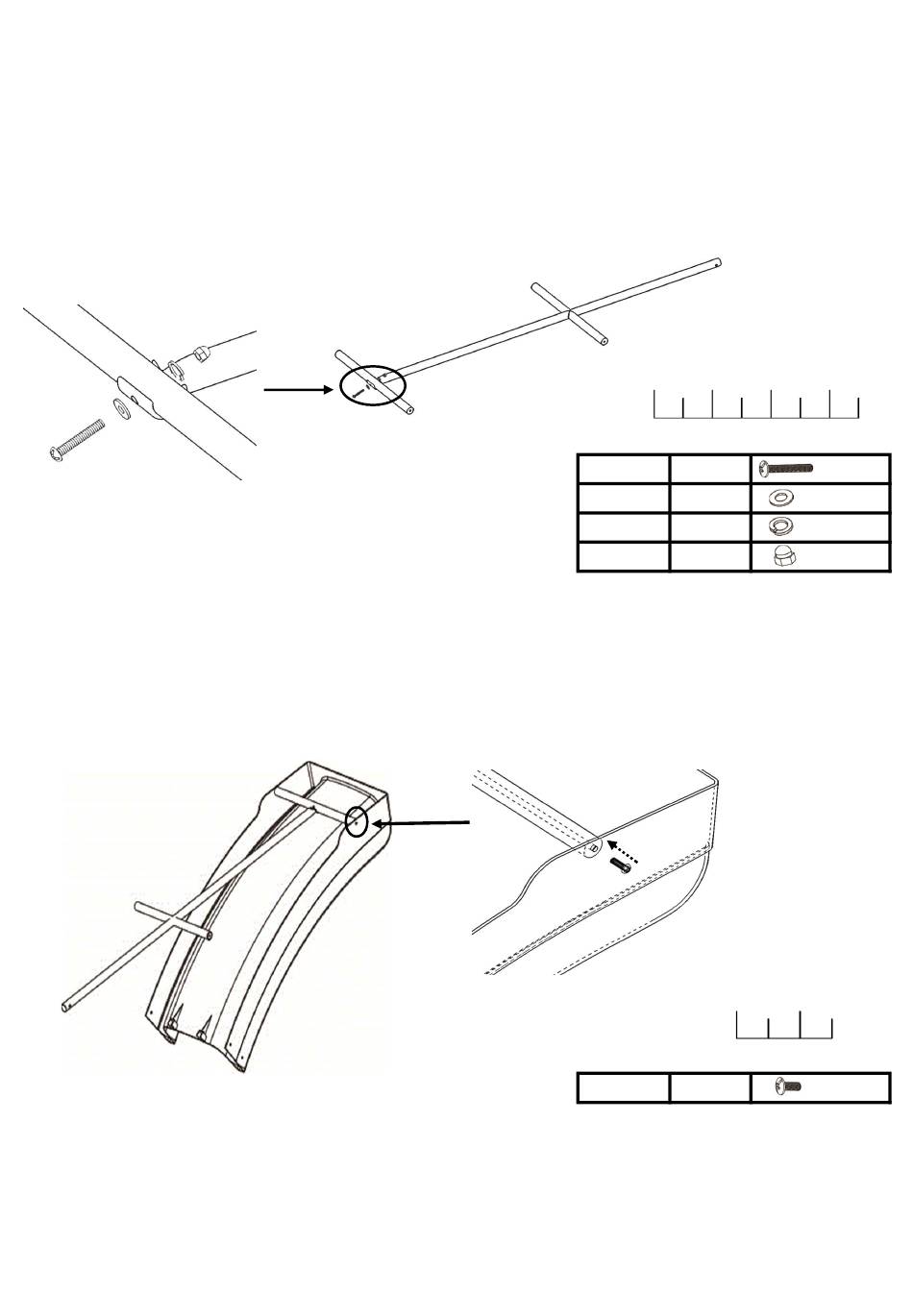

Step 1
H
W
G
F
C
„Â Attach the Support bar for bottom slide chute (W) to Cross tie bar (O) with bolt Cx1 + washer Fx1 +
spring washer Gx1 + domenut Hx1.
Step 2
O
„Â Turn the Bottom slide chute (M) backside up and connect the Support bar for bottom slide chute (W)
onto the Bottom slide chute (M) with bolt Ex1.
W
O
W
M
O
6MM
C (M6x35)
F (M6)
G (M6)
H (M6)
W
E
M
E (M6x15)
35MM
1 x
1 x
1 x
1 x
6MM
15MM
2 x
page 12 of 20
