Summary of Contents for SLIDEWHIZZER SWSL-03

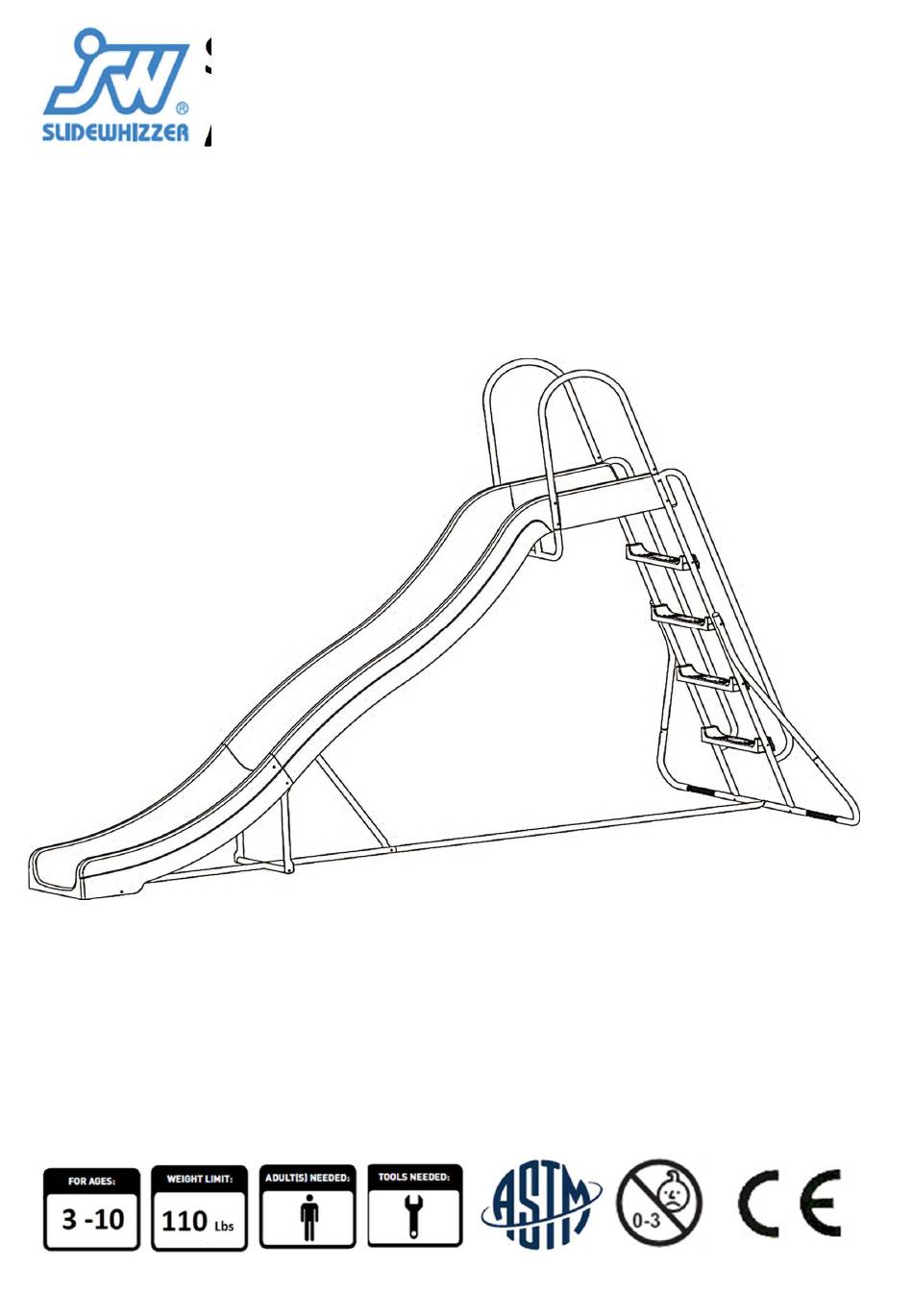

- Page 1 SLIDEWHIZZER 10FT SLIDE ASSEMBLY INSTRUCTIONS page 1 of 20...
-
Page 2: Customer Service Information
CUSTOMER SERVICE INFORMATION Thank you for purchasing: SLIDEWHIZZER 10FT SLIDE MODEL# SWSL-03 Platports® strives for 100% satisfaction guarantee, as customer satisfaction is of utmost importance to us. Before assembly, we suggest you to review all the components of the product you have purchased and contact us within 30 days of purchase for replacement parts. -
Page 3: Limited Warranty
LIMITED WARRANTY Platports® warrants this product to be free from defects in workmanship and materials under normal use and conditions for a period of 90 DAYS FROM THE DATE OF ORINGINAL PURCHASE.This Limited Warranty is not transferable and is available only for the original purchaser of the Product. The Company's obligation under this warranty is limited to replacing or repairing the Product, at the discretion of the Company. - Page 4 WARNINGS WARNING - PLEASE READ ADULT ASSEMBLY REQUIRED CHOKING HAZARD - Small Parts NOT for children under 3 years of age. WARNING: While every attempt is made to ensure the highest degree of protection in all equipment, freedom from injury cannot be guaranteed.
- Page 5 DO NOT install this equipment over concrete, asphalt, or any other hard or rough surface. A fall onto a hard surface can result in serious injury. The SLIDEWHIZZER 10FT SLIDE should always be installed over an appropriate, stable surface (rubber mat, grass, etc). It is recommended that whenever possible the ground anchors are used and firmly inserted into the ground.
-
Page 6: Assembly Warnings
Long pants are recommended for sliding to prevent friction of skin against the chute. DO NOT allow children to wear glasses or helmets when using the SLIDEWHIZZER 10FT SLIDE. Examine and replace any worn, loose, defective, rusted or missing parts and/or bolts before use. -
Page 7: Explosive Drawing
EXPLOSIVE DRAWING page 7 of 20... -
Page 8: Components List
COMPONENTS LIST Description Illustration M6 60mm bolt M6 50mm bolt M6 35mm bolt M6 20mm bolt M6 15mm bolt M6 washer M6 spring washer M6 domenut M6 square domenut Ladder step Top SLIDEWHIZZER chute (with Rounded-edge) page 8 of 20... - Page 9 COMPONENTS LIST Description Illustraion Middle wavy slide chute Bottom wavy slide chute Plastic spacer Tie bar Cross tie bar Ladder stabilizer bar L/R support bar Main handrail tube Top handrail tube Support-frame of top slide chute page 9 of 20...
- Page 10 COMPONENTS LIST Description Illustraion Support bar for Top slide chute L/R support bar for bottom slide chute Support bar for bottom slide chute Spanner Ground anchor Hex Head Self-Tapping Screw(5/16" x 6") Plastic end-cap Tools required : 1. Combination wrench 10 2.
- Page 11 SLIDEWHIZZER 10ft slide screw & domenut placement E=M6x15mm x 6pcs A=M6x60mm x 2pcs, I=square domenut x 2pcs D=M6x20mm x 2pcs C=M6x35mm x 6pcs, I=square domenut x 6pcs B=M6x50mm x 4pcs C=M6x35mm x 13pcs page 11 of 20...
- Page 12 SLIDEWHIZZER 10FT SLIDE ASSEMBLY INSTRUCTION Please note that slide assembly will be considerably easier with two adults.While one adult is connecting and fastening the relevant pieces, the other can assist by supporting the slide chute and holding the connecting pieces in position.
- Page 13 Step 3 Upper screw hole figure 1 Lower screw hole Upper screw hole * Tools recommendation for figure 1: Using the long nose pilers to fix E (M6x15) the nut for the small area. F (M6) G (M6) H (M6) „Â...
- Page 14 Step 5 * Tools recommendation for figure Using the long nose pilers to fix the nut for figure 1 the small area. 50MM B (M6x50) F (M6) G (M6) H (M6) „Â Insert the Plastic end-cap (Z) into the Support-frame of top slide chute (T). „Â...
- Page 15 Step 7 figure 1 * Tools recommendation for 35MM figure 1: C (M6x35) Using the long nose pilers to fix F (M6) the nut for the small area. G (M6) H (M6) „Â Attach the Main handrail (R) with ladders (J) into the top handrail (S) with bolt Cx1 + washer Fx1 + spring washer Gx1 + domenut Hx1.
- Page 16 Step 9 35MM C (M6x35) F (M6) G (M6) H (M6) * While one adult is connecting ladder stabilizer with ladder, the other adult can assist by holding the slide chute. „Â Attach the Ladder stabilizer bar (P) to pre-assembled Main handrail (R) with bolt Cx1 + washer Fx1 + spring washer Gx1 + domenut Hx1.
- Page 17 Step 11 35MM C (M6x35) F (M6) G (M6) H (M6) „Â Connect the Support bar (Q) into the Ladder stablilizer bar (P) with bolt Cx1 + washer Fx1 + spring washer Gx1 + domenut Hx1) Step 12 3rd step 60MM A (M6x60) G (M6)
- Page 18 Step 13 „Â Secure both sides of ladder stablilizer bar (P) to the ground with ground anchors (Y) and self-tapping screws(Y1). „Â When selecting a place to install the equipment, please consider the space requirement (at least 7 feet all around the slide). Please avoid positioning the equipment from protruding elements, walls, trees, etc.
- Page 19 HOW TO TRUN YOUR 10FT SLIDE INTO A WATER SLIDE IN 3 STEPS: 1. Obtain: 3/4 inch vinyl tubing (vinyl tubing not included). 2 hose clamps are included in your package. 2. Insert one end of tubing into water slide connector underneath top chute piece (component K). Secure with a hose clamp.
-
Page 20: Care And Maintenance
CARE & MAINTENANCE To clean the slide, simply wipe with a damp cloth. Regularly check to see if slide chute, steel tubes, steps, ground anchors and other parts are tightened and completely secure. Replace worn and damaged parts when if found and if necessary, refrain from use until replacement parts can be obtained.
