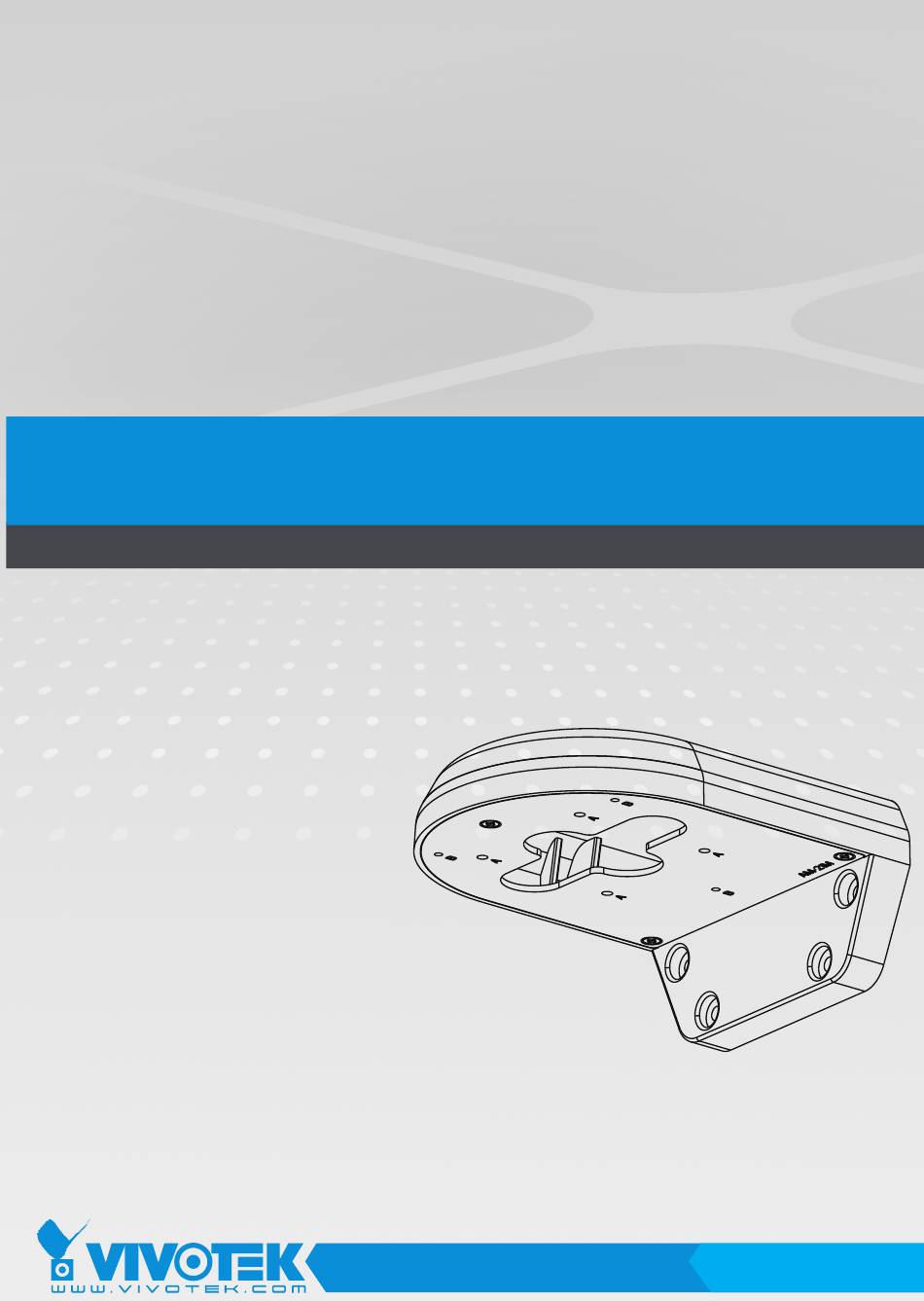

- Page 1 VIVOTEK Fixed Dome Series Wall-mount Bracket Installation Guide Using AM-21M wall-mount bracket and compatible accessories Corresponding part number: AM-21M: 100217600G AM-21M_V01 Rev. 1.0 IP Sur veillance...
- Page 2 A: IT9360-H, IT9380-H; M4x8 B: IT9389-H, IT9389-HT M3x8 You may also refer to VIVOTEK's website for the list of supported models. Support for other models can be available through time. Installation Mounting Hole Definitions Below are the locations of mounting holes.
- Page 3 For cabling and configuration details with each network camera, please refer to their documentation. Refer to the table below for the description of the included screws: Screw Description Quantity Applies to TP4x25 Phillips truss Securing the head bracket to wall Plastic anchors Securing the bracket to wall...
- Page 4 3. Route an Ethernet cable through the wall and the bracket. Install the waterproof components around the Ethernet cable. 4. Turn the camera towards the field of view of your interest. When done, align the camera's screw slots with the corresponding mounting holes. 5.
