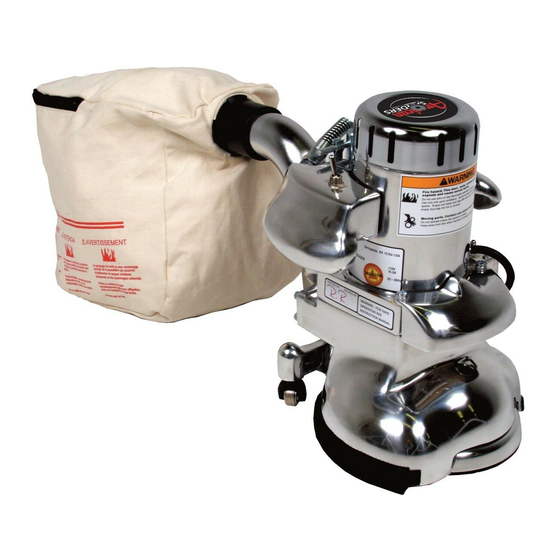

Clarke American Sanders B2 Operator's Manual

7" spinner edger ce
Hide thumbs Also See for American Sanders B2:
Table of Contents

Advertisement

Quick Links

B2
7" Spinner
Edger (CE)
Operator's Manual
MODEL: 07097A
READ THIS BOOK
This book has important information for the use and safe operation of this machine. Failure to read this
book prior to operating or attempting any service or maintenance procedure to your Clarke American
Sanders machine could result in injury to you or to other personnel; damage to the machine or to
other property could occur as well. You must have training in the operation of this machine before
using it. If your operator(s) cannot read English, have this manual explained fully before attempting
to operate this machine.
Si Ud. o sus operadores no pueden leer el Inglés, se hagan explicar este manual completamente
antes de tratar el manejo o servicio de esta máquina.
All directions given in this book are as seen from the operator's position at the rear of the machine.
Form No. 70162B
12/06 revised 3/13

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the American Sanders B2 and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for Clarke American Sanders B2

Summary of Contents for Clarke American Sanders B2

  • Page 1 This book has important information for the use and safe operation of this machine. Failure to read this book prior to operating or attempting any service or maintenance procedure to your Clarke American Sanders machine could result in injury to you or to other personnel; damage to the machine or to other property could occur as well.

  • Page 2: Table Of Contents

    Products in such environments. The Manufacturer disclaims any responsibility to advise purchasers of any specifi c requirements that may be applicable to the use of the Products in such environments. - 2 - FORM NO. 70162B American Sanders B-2 (CE) Operator's Manual Clarke ®...

  • Page 3: Operator Safety Instructions

    • Hitting a nail while sanding can cause sparks and create an explosion or fi re. Always use a hammer and punch to countersink all nails before sanding fl oors. American Sanders B-2 (CE) Operator's Manual FORM NO. 70162B - 3 - Clarke ®...
  • Page 4 Maintenance and repairs performed by unauthorized personnel could result in damage or injury. Maintenance and repairs performed by unauthorized personnel will void your warranty. Servicing of this unit must always be referred to an authorized Clarke American Sanders distributor. CAUTION: Use of this equipment to move other objects or to climb on could result in injury or damage.

  • Page 5: Introduction And Machine Specifications

    12m H07RN F3G 1.5mm Dimensions 356 x 260 x 343mm (14 x 10½ x 13½) Weight 14.5 kg (32 lbs.) Shipping Weight 21 kg. (46 lbs.) American Sanders B-2 (CE) Operator's Manual FORM NO. 70162B - 5 - Clarke ®...

  • Page 6: Machine Set-Up

    4. To empty the dust bag, unzip the disposal fl ap and force contents out by inverting the bag. NOTE: For best results, empty frequently. Follow all warnings posted in this manual and on the dust bag. - 6 - FORM NO. 70162B American Sanders B-2 (CE) Operator's Manual Clarke ®...
  • Page 7 Gearbox damage could result from ma- chine resting upside down for extended periods of time. Lubricant may drain from gearbox. Always return machine to upright position after installing abrasive. American Sanders B-2 (CE) Operator's Manual FORM NO. 70162B - 7 - Clarke ®...

  • Page 8: How To Operate The Machine

    Empty dust bag into a metal container, clear of any combustibles. Do not empty content into a fi re. Do not over- fi ll dust bag. - 8 - FORM NO. 70162B American Sanders B-2 (CE) Operator's Manual Clarke ®...

  • Page 9: Sanding Cuts And Sandpaper

    If glazing or burning should occur immediately into a fi nishing cut, increase pace. If it should occur during a fi nishing cut, the abrasive has dulled and must be replaced. American Sanders B-2 (CE) Operator's Manual FORM NO. 70162B - 9 - Clarke ®...

  • Page 10: Maintenance

    Servicing of these units must always be referred to an authorized Clarke Ameri- can Sanders distributor. The Dust Control System Remove the dust from the bag when the bag is Figure 5 full or when the effi...

  • Page 11: Lubrication

    Damage could occur to the gear box. 5. Remove the cover from the gear housing. 6. Remove the old lubricant from the gearbox. 7. Add ten ounces of Clarke American Sanders lubricant to the gearbox. Figure 10 CAUTION: To prevent damage to the motor, do not add more than ten ounces of lubricant to the gearbox.
  • Page 12 15. Install the motor cover. - 12 - FORM NO. 70162B American Sanders B-2 (CE) Operator's Manual Clarke ®...
  • Page 13 7" Spinner Edger (CE) Section II Parts Manual (70162B) American Sanders B-2 (CE) Operator's Manual FORM NO. 70162B - 13 - Clarke ®...

  • Page 14: Lower Assy

    3/13 LOWER ASSY - 14 - FORM NO. 70162B American Sanders B-2 (CE) Operator's Manual Clarke ®...
  • Page 15 Screw, 8-32 F.H.C.S 85715A Screw, 5/16-18x1 Hx Hd 85814A Screw 5/16-18 X 1 1/4 Hh [ ] = Not Shown = Revised or new since last update American Sanders B-2 (CE) Operator's Manual FORM NO. 70162B - 15 - Clarke ®...

  • Page 16: Upper Assy

    3/13 UPPER ASSY - 16 - FORM NO. 70162B American Sanders B-2 (CE) Operator's Manual Clarke ®...
  • Page 17 Wrench-T-Handle, 1/2 In 70175A Tag Warning 77094A Label Ground Symbol 85520A Screw8-00 X 1/2 Pan Hd Sd 86117A Scr 10-24x3 Shms = Revised or new since last update American Sanders B-2 (CE) Operator's Manual FORM NO. 70162B - 17 - Clarke ®...

  • Page 18: Wiring Diagram

    Ref. No. Qty Description 40114A Control Switch 46739A RF Suppressor 912287 Diode 47365A Speed Selector Switch 40719A Field 10112A Armature = Revised or new since last update - 18 - FORM NO. 70162B American Sanders B-2 (CE) Operator's Manual Clarke ®...
  • Page 19 Overenstemmelseserklaering Declaration de conformité Samsvarserklaering Declaration of conformity Verklaring van overeenstemming Vaatimustenmukaisuusvakuutus Konformitätserklärung Dichiarazione di conformità Atitikties deklaracija Declaración de conformidad Vastavussertifikaat Osvědčení o shodě Atbilstības deklarācija Deklaracja zgodności Certifikát súladu Megfelelősségi nyilatkozat Försäkran om överensstämmelse Certifikat o ustreznosti Floor Treatment Machines Modell/ Modèle/ Model/ Malli/ Modelo/ Μοντέλο/ Modelo/ Modelis/Модель: Type/ Tyyppi/ Tipo/ Τύπος/ Tüüp/ Tipas/ Tips/ Typ/ Típus/ Тип/ Tip: B-2 Der Unterzeichner bestätigt hiermit dass die oben erwähnten Modelle gemäß...
  • Page 20 14600 21st Avenue North Plymouth, MN 55447-3408 www.clarkeus.com Phone: 800-253-0367 Fax: 800-825-2753 ©2013 Nilfi sk-Advance, Inc. A Nilfi sk-Advance Brand...
