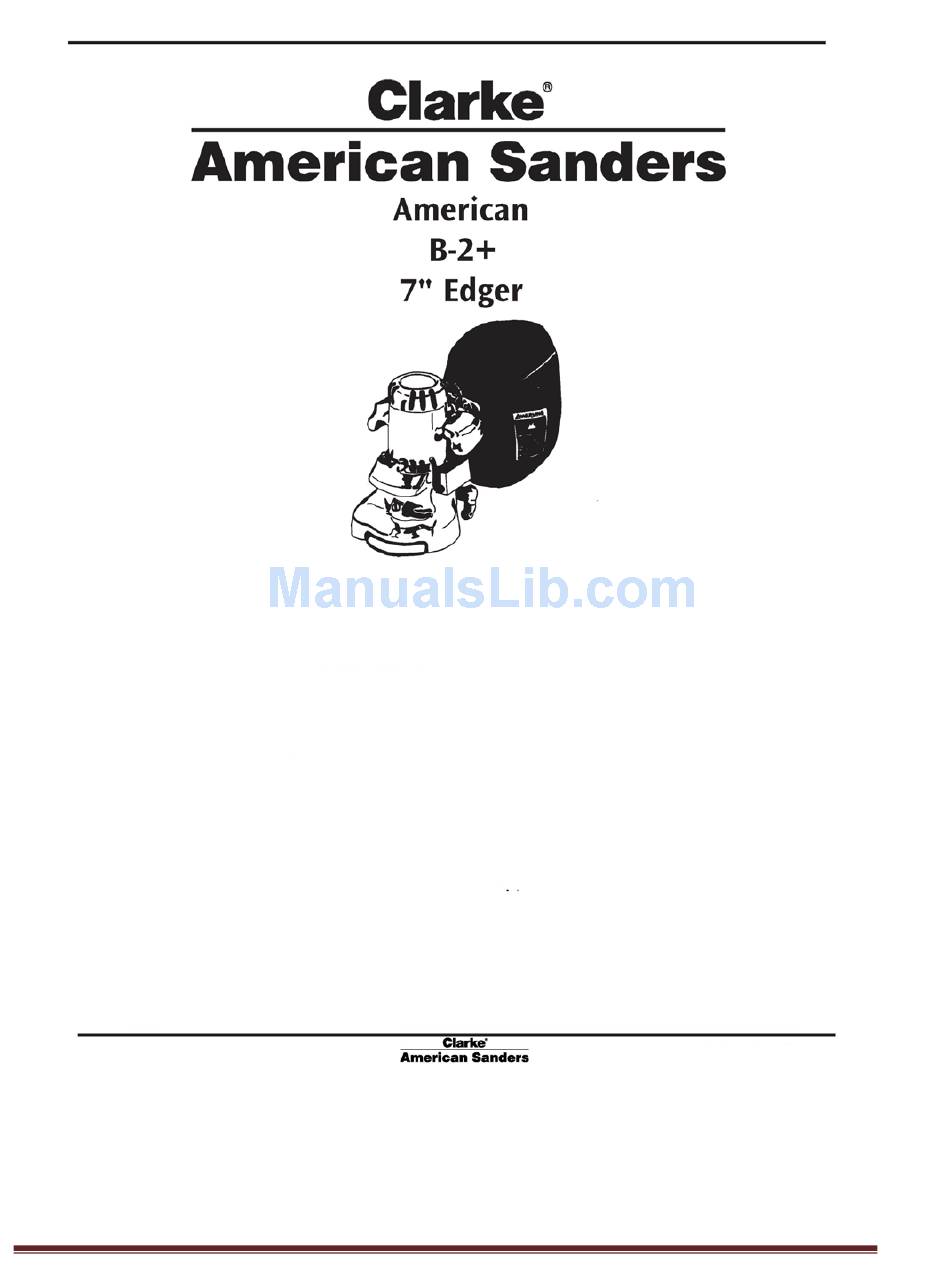

- Page 1 MODELS: 07097A, 07127A, 07128A 56043143 Page 1...
- Page 2 Switch Replacement 1-Remove the two screws (13) securing the right handle (42) 2-Remove switch retaining nut (68) 3-Pull switch from handle (Fig. 25) 4-Remove tape from switch to expose wiring connections 5-Disconnect all wires from switch Assembly Hints Connect the light wires with the incoming power wires on the switch so that the light is on when machine is plugged in Always retape the switch to prevent shorting between metal objects inside machine...
- Page 3 56043143 Page 3...
- Page 4 Pad Removal and Replacement 1-Remove paper retaining bolt (37) 2-Wedge dust fan with screwdriver or similar object 3-Use spanner wrench (Fig. 28) or punch and hammer (Fig. 29) to remove pad Note: When replacing the old style steel pad with the new style aluminum the fiber washers between the pad and lower bearing must be discarded.
- Page 5 Reassembly 1-Press uper bearing (71) on armature using the inner race only 2-Press bearing (76) and seal (75) in lower housing (8) 3-Press armature into the lower housing assembly 4-Reinstall pinion gear 5-Reinstall dust baffles 6-Reinstall the field housing assembly Assembly Hints Pinion and drive gears should always be replaced as sets It is recommended that the upper and lower armature bearings be replace when installing a new armature...
- Page 6 Symptom Cause Repair Sander will not Check and repair power supply or move to turn on No power at outlet another outlet Defective cord or plug Check continuity and replace defective part Defective switch Replace switch Broken wire or bad connection on brush holder assembly Repair or replace brush holder assembly Extremely worn motor brushes...
- Page 8 14600 21st Avenue North Plymouth, MN 55447-3408 www.clarkeus.com Phone: 800-253-0367 Fax: 800-825-2753 ©2010 Nilfi sk-Advance, Inc. A Nilfi sk-Advance Brand...
