Rev-A-Shelf 444-BCSC-8C Installation Instructions

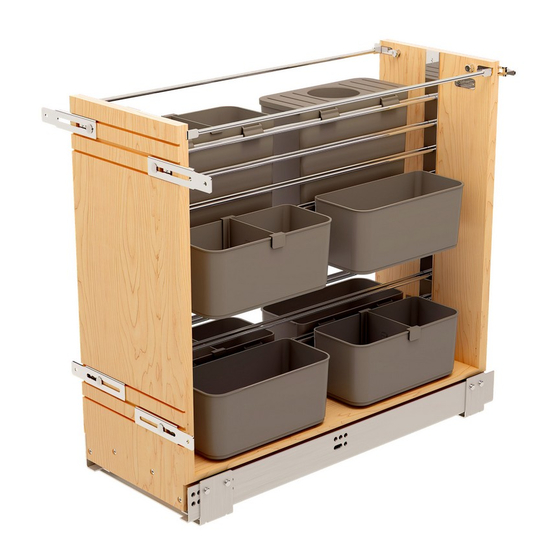

SOFT-CLOSE MODULAR PULLOUT ORGANIZER

ESTIMATED ASSEMBLY TIME:

5 MIN

CARE AND MAINTENANCE:

Clean with a damp cloth and
wipe parts dry.
To clean the bins, place
them on the top rack of your
dishwasher without the heat
cycle. Or they can be rinsed
out by hand with warm water
and soap. Let the bins dry,
then clip them back on your
pullout frame.
No. Description
A
Spice Bins
B
Knife Bins
C
Utensil Bins
Adjustable Backstop

Modifying the adjustable backstops

1) Loosen the (2) lock nuts uisng a 3/8" wrench inside the back wall of the unit (See Figure 1).
2) Extend the adjustable backstops until they overlap the rub bushings by 3/8" on both sides.
Adhere one of the provided rubber bumpers onto each of the adjustable backstops. The
adjustable backstops prevent the pullout from coming too far out of the cabinet.
3) Tighten the (2) lock nuts securing the adjustable backstops.

Hanging the modular accessories

1) Clip the (6) Spice Bins, (1) Knife Bin, and (1) Utensil Bin on the wire frame in your desired
configuration. All the bins might not fit in a door/drawer application (See Figure 2).
INSTALLATION INSTRUCTIONS: MODULAR PULLOUT ORGANIZER

Parts List:

FIG. 1
Lock Nut
FIG. 2
