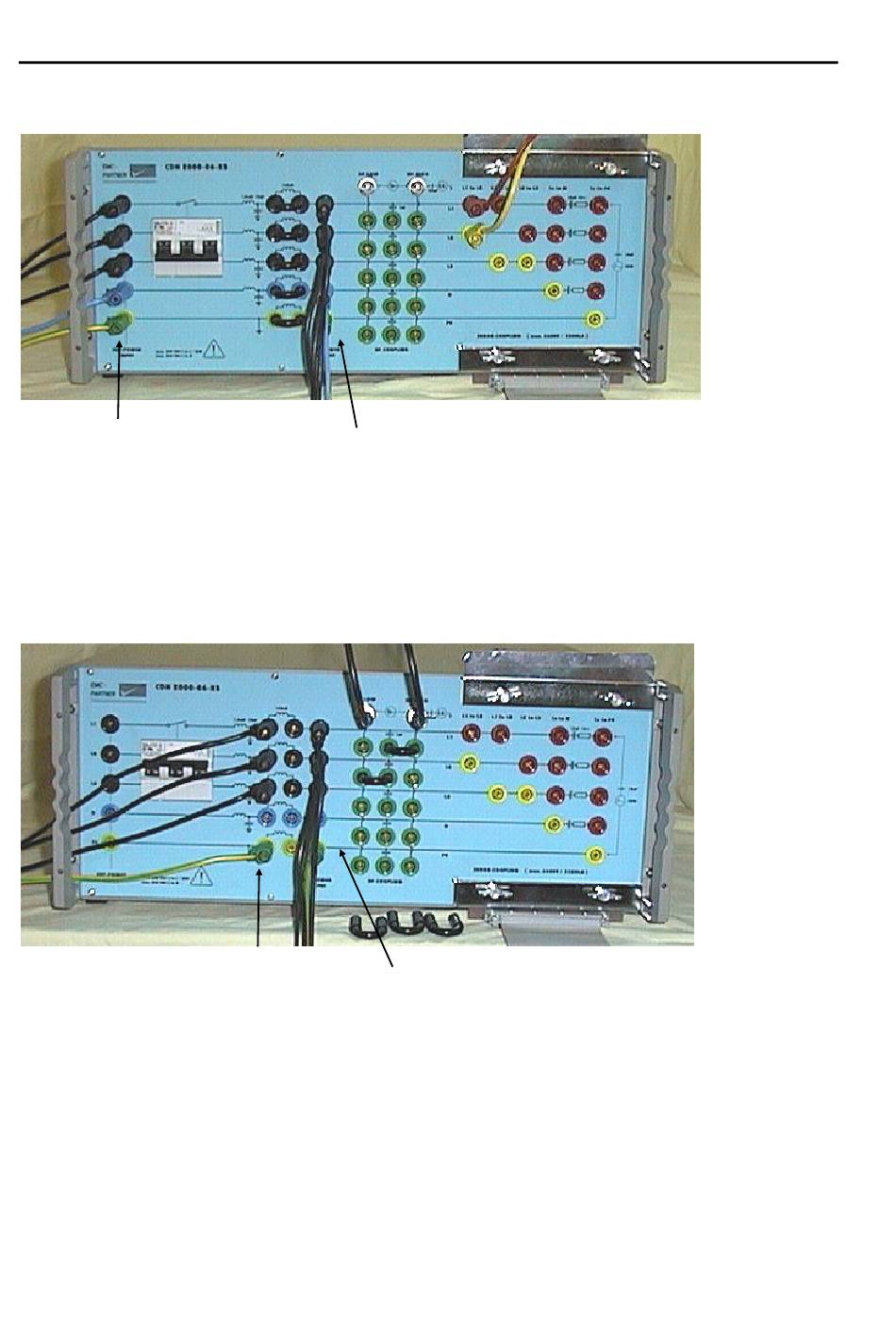

5.3.2 EUT Power, Power source for the EUT

Power Supply input
Power Supply EUT
To connect the EUT Power Input with the public power supply please cut the three black, blue and
green/yellow cables supplied into two halves of the same length. One half used for the EUT Power
connection to the CDN2000-06-25, and the other half for supplying the EUT.

5.3.3 I/O lines coupling

I/O lines input
to EUT
The CDN2000 can be used for EFT or Damped oscillatory Wave coupling in I/O lines. The input of the I/O
lines must be connected to the 140 µH inductance. In this test set up the 1.6 mH inductance will be
bypassed.
This arrangement can be use to set up the required four lines coupling specified in IEC 255-22.
