3 Mechanical Structure

3.1 General

handles
During continuous operation of the three-phase coupling network with a current of 25 A per phase, the
housing of the coupling network can become warm.
The following connection cables are supplied with the three-phase coupling network:
Mains feed and Test Object connection
3 black banana plug cables, length 2 m (for the three phases)
1 blue banana plug cable, length 2 m (for the neutral)
1 green/yellow banana plug cable, length 2 m (for the protective earth connection)
These 5 cables are to be cut in the middle. One half of the cables must be fitted with a mains plug
corresponding to the public mains connection. The other half is to be connected to the test object.
Caution!
Only the delivered cable and accessories are allowed to use with the CDN-2000! The weight of the filter is
28 kg.
Earth bar plate must be connected to the
reference EFT plate
E-CDN2000-06-25-E-Manual
Earth bar plate to
connect the EFT

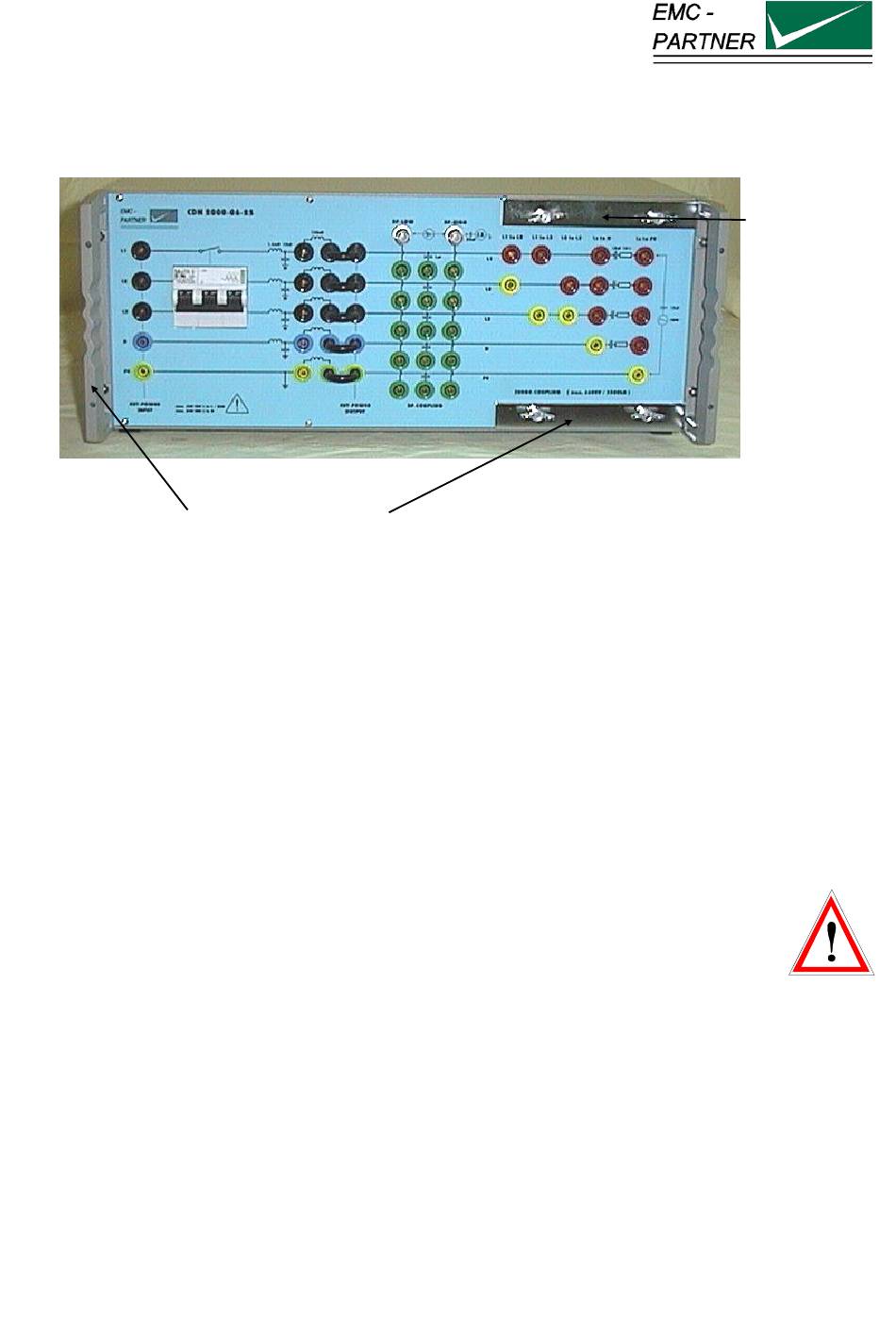

Figure: 3.1-1
