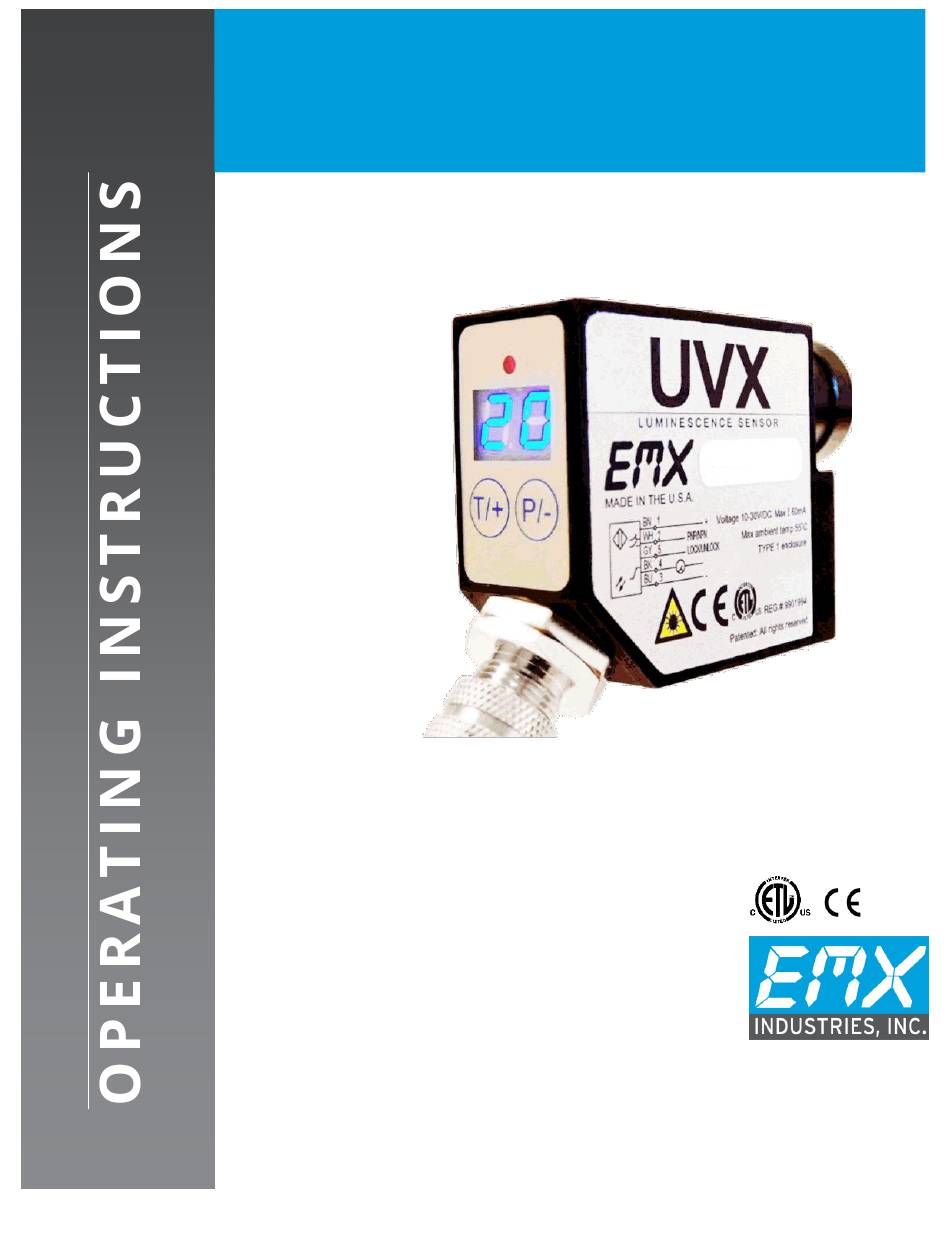

- Page 1 UVX-100 L u m i n e s c e n c e S e n s o r 4564 Johnston Parkway, Cleveland, Ohio 44128 P. 800 426 9912 F. 216 518 9884 Sales Inquiries: salessupport@emxinc.com Technical Support: technical@emxinc.com www.emxinc.com...
-
Page 2: Table Of Contents
Contents Cautions and Warnings Product Overview Specifications Operation Controls and Indicators Connections Ordering Information UVX 300 Operating Instructions Document no. 10010304... -
Page 3: Cautions And Warnings
Cautions and Warnings CAUTION: The discrete output must not be connected to outputs from other sensors (i.e. outputs from multiple sensors must not be connected in parallel). Parallel connections may damage sensor output circuitry. IMPORTANT: This product is an accessory or part of a system. Always read and follow the manufacturer’s instructions for the equipment before connecting this product. -
Page 4: Product Overview
Product Overview The UVX 100 sensor effectively detects UV luminescent materials and markers. The modulated UV light source in the UVX 100 is directed toward a target and the visible light, resulting from the fluorescence of the material, is reflected back to the sensor. When the reflected light level exceeds the threshold the discrete output changes state. -
Page 5: Specifications
Specifications Specifications UV light source 370nm UV LED, min. 100,000 hours LED Intensity 3 levels (low, medium, and high) Relative Intensity Display Range 00 to 50 Sensitivity X1, X10 Detection Range Up to 36 inches (900mm) Switching Frequency 6 kHz Brightness level Two 7 segment digits Brightness threshold... -
Page 6: Operation
Operation QUICKSTART GUIDE 1. The display range is 00 through 50. The decimal points indicate the LED intensity level. The RED LED above the display indicates that the intensity level exceeds the threshold setting. 2. Connect cable to power supply observing correct polarity. Reference wiring diagram. 3. - Page 7 Operation (Continued) Local Lock The local lock feature allows the sensor to be locked out, preventing adjustments by unauthorized personnel. To lock the sensor, press the P/- and T/+ buttons for 3 seconds until LL is displayed. To un-lock the sensor, press the T/+ and P/- for 3 seconds until LL is not displayed.
- Page 8 Operation (Continued) Extend Output Pulse (P) This feature allows extending the minimum length of time that the discrete output remains active following target detection. The sensor response can be in the 100uS (microsecond) range, i.e. a target can move through the sensing range in 100uS and the discrete output would active for only that duration.
- Page 9 Operation (Continued) When in the teach mode the LED flashes constantly, yellow, green or red. Yellow indicates that the sensor is ready to be taught the Detect level. Green indicates that the sensor is ready to be taught the Undetect level. Red indicates that the last attempt to teach resulted in an error. If the error occurred during the teaching of the Detect level then the signal intensity was less than 01.
-
Page 10: Controls And Indicators
Operation (Continued) Spot Size Table Spot diameter w/50mm lens accessory* Spot diameter* 20 mm distance 8 mm 20 mm distance 18 mm 38 mm distance 50 mm distance 6 mm 50 mm distance 4 mm 100 mm distance 5 mm 75 mm distance 8 mm 100 mm distance... -
Page 11: Connections
Connections M12 Connector Wire Color Description Pin 1 Brown Power 10 to 24VDC Pin 2 White Discrete output, PNP/NPN, NO/NC Pin 3 Blue Ground Pin 4 Black Analog (0-5V) Pin 5 Yellow Remote lock UVX 300 Operating Instructions Document no. 10010304... -
Page 12: Ordering Information
Ordering Information UVX 300 Luminescence sensor Accessories UVX 300-L50 UVX300-BRKT UVX 300-C 50mm focal lens Bracket 5 meter cable with M12 5-pin connector Mounting UVX-300-L50 Focal lens The focal lens is mounted by screwing the collar into the sensors standard lens collar. An anti—vibration material is present on the focal lens threads. - Page 13 EMX Industries option of a part or parts found not conforming to the warranty. In no event shall EMX Industries Inc. be liable for damages, including but not limited to damages resulting from non-conformity, defect in material or workmanship.
- Page 14 BLANK PAGE UVX 300 Operating Instructions Document no. 10010304...
- Page 15 BLANK PAGE UVX 300 Operating Instructions Document no. 10010304...
- Page 16 4564 Johnston Parkway Cleveland, Ohio 44128 United States of America www.emxinc.com Technical Support: (216) 834-0761 technical@emxinc.com Sales: (216) 518-9888 Fax: (216) 518-9884 salessupport@emxinc.com Revision 1.5 3.7.2018 UVX 300 Operating Instructions Document no. 10010304...
