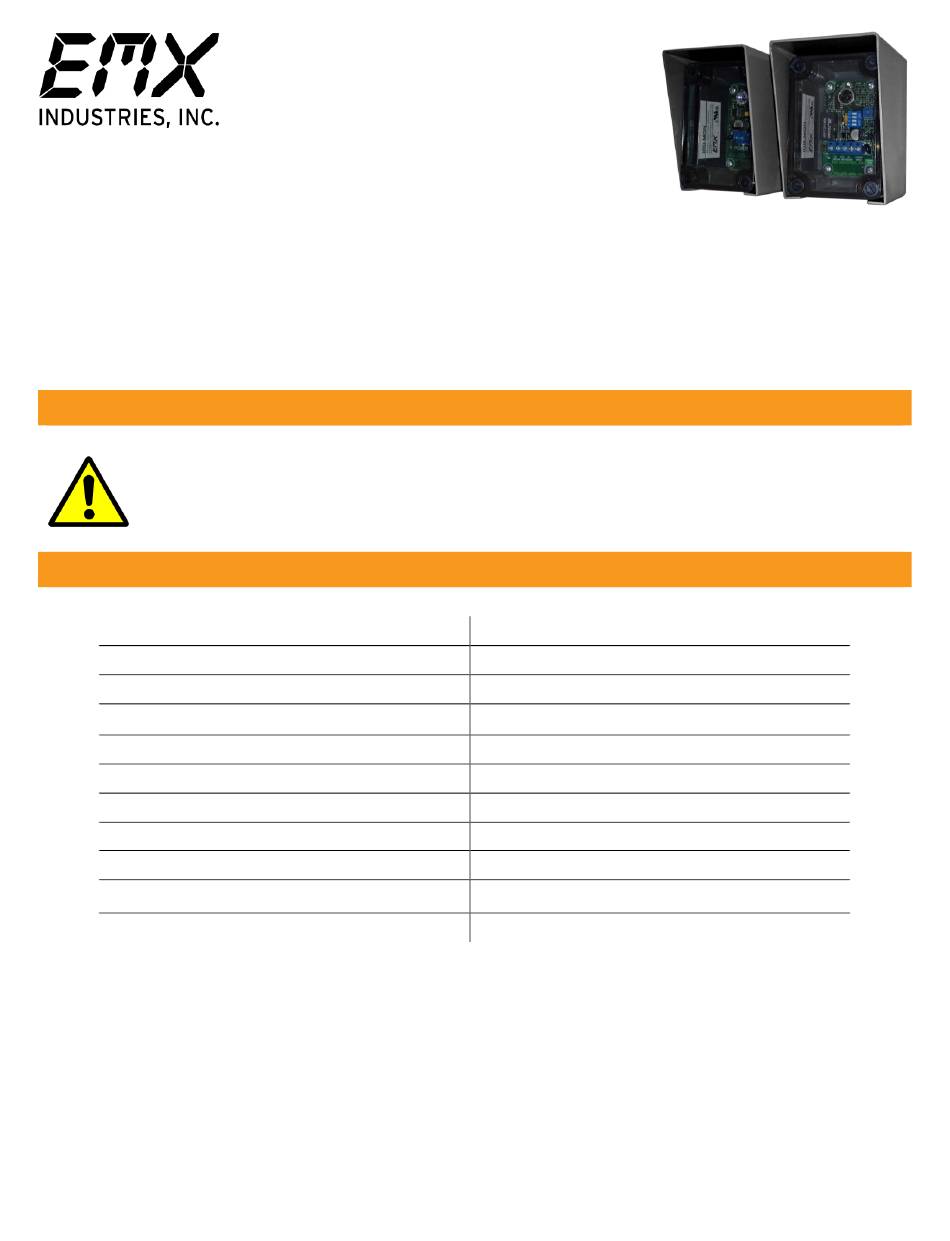

EMX Industries IRB-MON Instruction Manual

Universal thru beam photoeye
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

Instruction Manual
The IRB-MON thru beam infrared photoeye is an external entrapment protection device type B1,
non-contact sensor for use with automatic gates and doors. The photoeye provides a signal to the gate
or door operator that the beam is or is not obstructed. The IRB-MON operates up to 115 feet over a
wide range of voltages (6-35 VDC and 12-24 VAC). A green alignment indicator on the receiver provides
status information at a glance, making set-up and alignment easy. The IRB-MON provides compatibility
with most operators that accommodate monitored external entrapment devices per UL325.
Cautions and Warnings
This product is an accessory or part of a system.
instructions from the gate or door operator manufacturer. Comply with all applicable codes
and safety regulations.
Specifications
Operating Range
Power
Current (NC and 10K Monitoring Methods)
Current (Pulse Monitoring Methods)
Surge Protection
Relay Output Operation
Relay Output Configuration
Transmitter Power Cycle
Operating Temperature
Dimensions (L x W x H)
Environmental Rating
EMX Industries, Inc.
IRB-MON_Rev3.0_080619
IRB-MON
Universal Thru Beam Photoeye
Tech support: 216-834-0761
technical@emxinc.com
Install the IRB-MON according to
Up to 115 ft (35 m)
6-35 VDC, 12-24 VAC
60 mA (relay activated)
ononly)
15 mA
Thermal fuse
Light ON/Dark ON
Form C contacts (NO, COM, NC)
<300 mS (for use in NC or 10K monitoring)
-40° to 170°F (-40° to 77°C)
2.3" (57 mm) x 2.6" (65 mm) x 3.7" (94 mm)
NEMA 4X
TM
1/6

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the IRB-MON and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for EMX Industries IRB-MON

Summary of Contents for EMX Industries IRB-MON

  • Page 1 The photoeye provides a signal to the gate or door operator that the beam is or is not obstructed. The IRB-MON operates up to 115 feet over a wide range of voltages (6-35 VDC and 12-24 VAC). A green alignment indicator on the receiver provides status information at a glance, making set-up and alignment easy.

  • Page 2: Ordering Information

    Two-wire Pulse (2 Frequency): Provides 300Hz “heartbeat” unobstructed, 0Hz obstructed over • power supply lines Two-wire Pulse (3 Frequency): Provides 300Hz “heartbeat” unobstructed, 2Hz obstructed, and • 0Hz failure over power supply lines Board Diagram EMX Industries, Inc. Tech support: 216-834-0761 IRB-MON_Rev3.0_080619 technical@emxinc.com...

  • Page 3: Installation

    Then increase sensitivity setting one quarter turn. Confirm receiver LED is still on. 9. Place an obstruction (ex. hand) between the IRB-MON transmitter and receiver. The green LED on the receiver will flash. Check the operator control board and verify that the safety input is recognized by the operator.

  • Page 4: Configuration Settings And Wiring Diagrams

    (Dark ON setting – normally open (NO) contact closes when the beam is unobstructed.) Pulsed configurations require current limiting in the operator. The IRB-MON will pulse 300Hz when • not obstructed and 0Hz when obstructed.
  • Page 5 Wiring Diagram A: Normally Closed Wiring Diagram B: 10K Resistive Termination *If using the IRB-MON in an application that does not require UL325 monitoring across the normally open contact, it is possible to disable the 10K resistor by moving the 10K jumper to pins 2 and 3.

  • Page 6: Troubleshooting

    Warranty EMX Industries, Inc. products have a warranty against defects in materials and workmanship for a period of two years from date of sale to our customer. EMX Industries, Inc. Tech support: 216-834-0761 IRB-MON_Rev3.0_080619...
