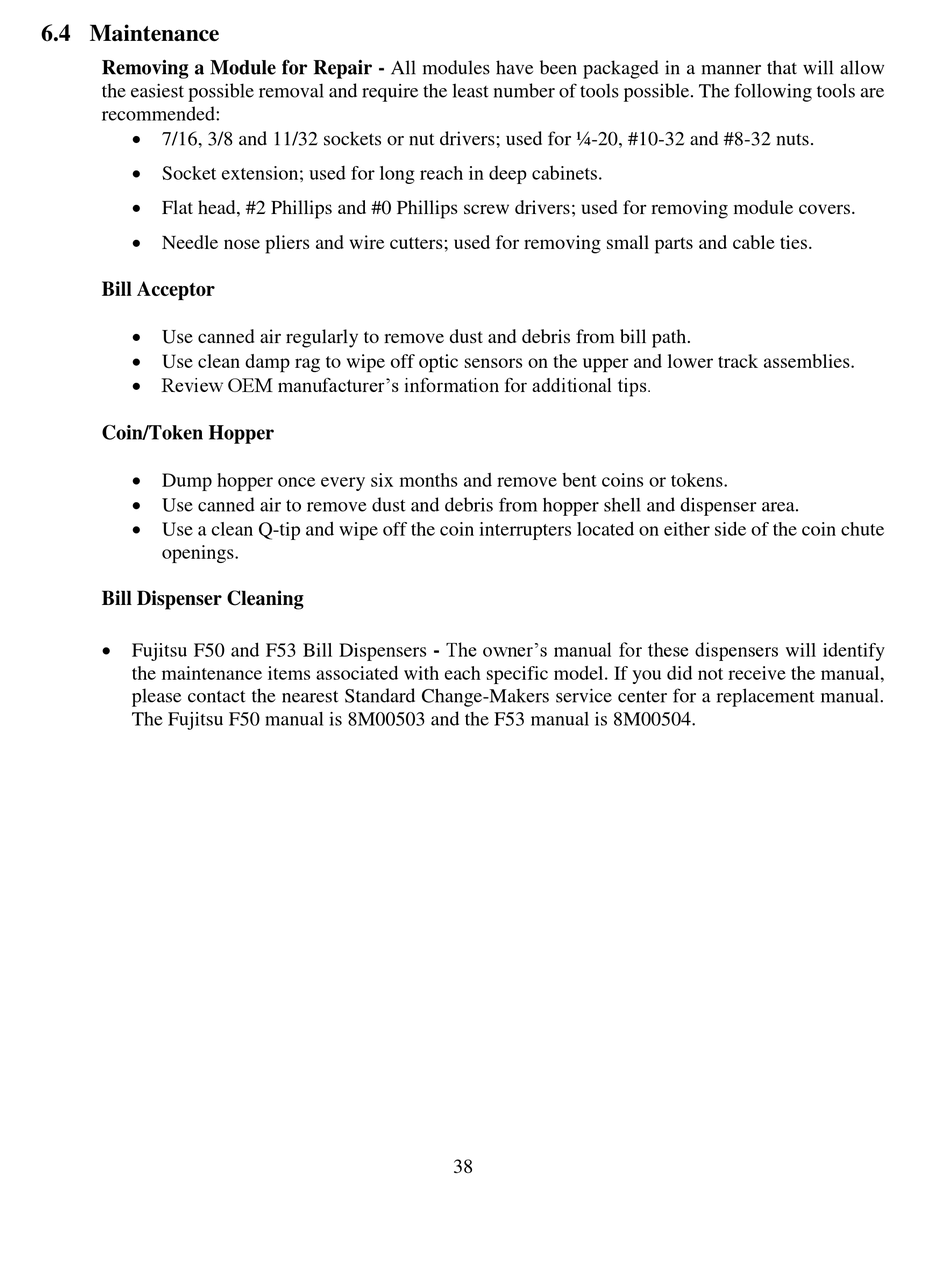

6.4 Maintenance

Removing a Module for Repair - All modules have been packaged in a manner that will allow
the easiest possible removal and require the least number of tools possible. The following tools are
recommended:
 7/16, 3/8 and 11/32 sockets or nut drivers; used for ¼-20, #10-32 and #8-32 nuts.
 Socket extension; used for long reach in deep cabinets.
 Flat head, #2 Phillips and #0 Phillips screw drivers; used for removing module covers.
 Needle nose pliers and wire cutters; used for removing small parts and cable ties.
Bill Acceptor
 Use canned air regularly to remove dust and debris from bill path.
 Use clean damp rag to wipe off optic sensors on the upper and lower track assemblies.
 Review OEM manufacturer's information for additional tips.
Coin/Token Hopper
 Dump hopper once every six months and remove bent coins or tokens.
 Use canned air to remove dust and debris from hopper shell and dispenser area.
 Use a clean Q-tip and wipe off the coin interrupters located on either side of the coin chute
openings.
Bill Dispenser Cleaning
 Fujitsu F50 and F53 Bill Dispensers - The owner's manual for these dispensers will identify
the maintenance items associated with each specific model. If you did not receive the manual,
please contact the nearest Standard Change-Makers service center for a replacement manual.
The Fujitsu F50 manual is 8M00503 and the F53 manual is 8M00504.
38
